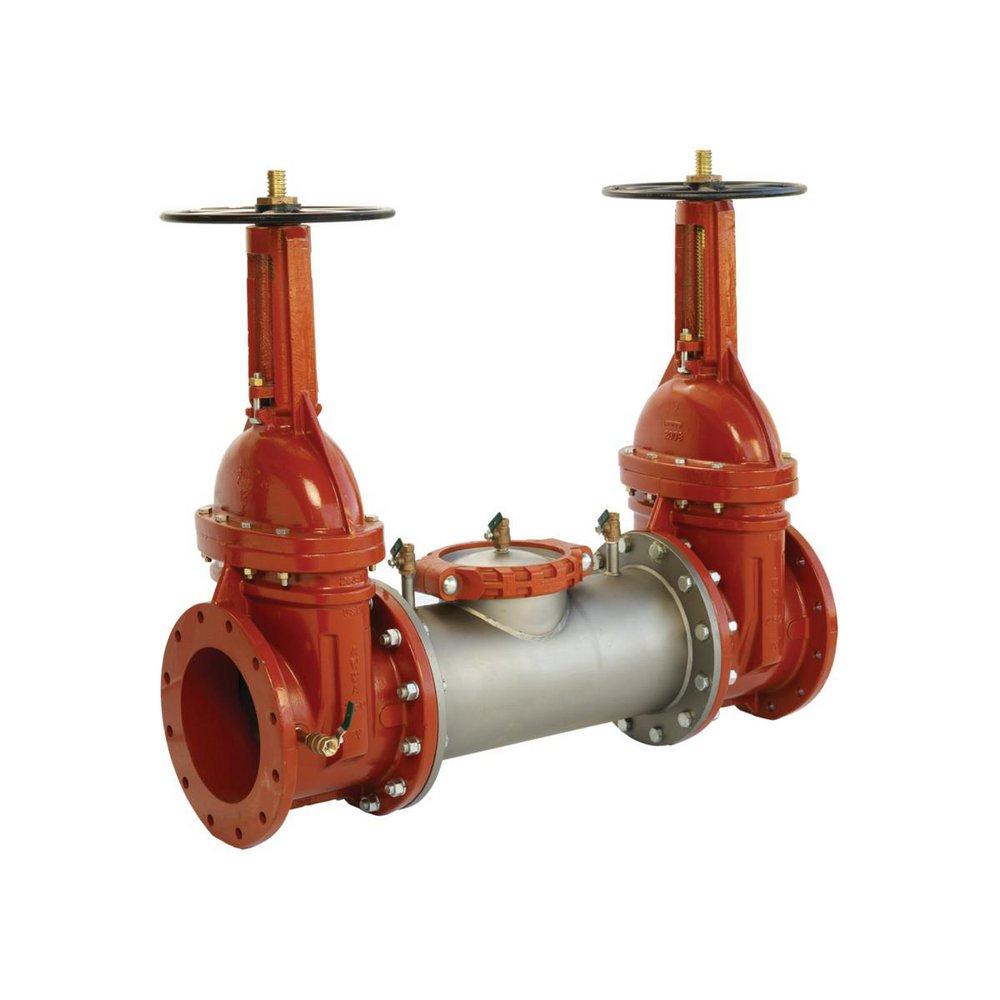

12 in. Flanged Stainless Steel 175 psi Double Check Valve Backflow Preventer with Rubber Seat

Ames Fire & Waterworks

2000SS 12 in. Flanged Stainless Steel 175 psi Double Check Valve Backflow Preventer with Rubber Seat

  • Fast #
  • Part #A2000SSOSY12
  • Item #1923345
  • Manufacturer Part #0690563
3.4 out of 5 Customer Rating
Brand image
Ames Fire & Waterworks Stainless Steel Stainless Steel Flanged Backflow Preventer
Ames Fire & Waterworks Stainless Steel Stainless Steel Flanged Backflow Preventer
Ames Fire & Waterworks

2000SS 12 in. Flanged Stainless Steel 175 psi Double Check Valve Backflow Preventer with Rubber Seat

  • Fast #
  • Part #A2000SSOSY12
  • Item #1923345
  • Manufacturer Part #0690563
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Stainless steel body
  • Domestic outside stem and yoke gate valves
  • Non-health hazard application
  • No special tools required for servicing
  • Compact design
  • Low pressure drop
  • Modular construction
  • The maximum working pressure is 175 psi (12.06 bar)
  • The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25 percent) of lead by weight
  • Requires Certification

  • Lead Law Compliant

Specifications

ASSE Standards:
ASSE 1015
AWWA:
AWWA C-510
CSA Certified:
CSA B64.5
Coating:
Polymer
Collection:
2000SS
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
Yes
Height:
58-3/4 in
IAPMO Listed:
No
Included:
OS and Y Gate, Test Cock(s)
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2 in
Material:
Stainless Steel
Maximum Temperature:
110
Minimum Temperature:
33
NSF Certified:
No
Pressure - Maximum:
175 psi
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Commercial, Industrial, Water
UL Listed:
No
UPC:
737733008194
Valve Body Material:
Stainless Steel
Valve Body Style:
Straight
Valve Disc Material:
Rubber
Valve Operator:
Wheel Handle
Valve Seat Material:
Rubber
Valve Size:
12 in
Valve Type:
Double Check Valve Assembly
Weight:
1505 lb
Width:
30 in
