4 in Stainless Steel Grooved Double Check Valve Assembly with Shutoff Valves, Water Meter, Test Cocks and Soft Seated Check Valve

Ames Fire & Waterworks

C300 4 in Stainless Steel Grooved Double Check Valve Assembly with Shutoff Valves, Water Meter, Test Cocks and Soft Seated Check Valve

  • Fast #
  • Part #AC300BFGGP
  • Item #2432934
  • Manufacturer Part #0191260
3.4 out of 5 Customer Rating
Brand image

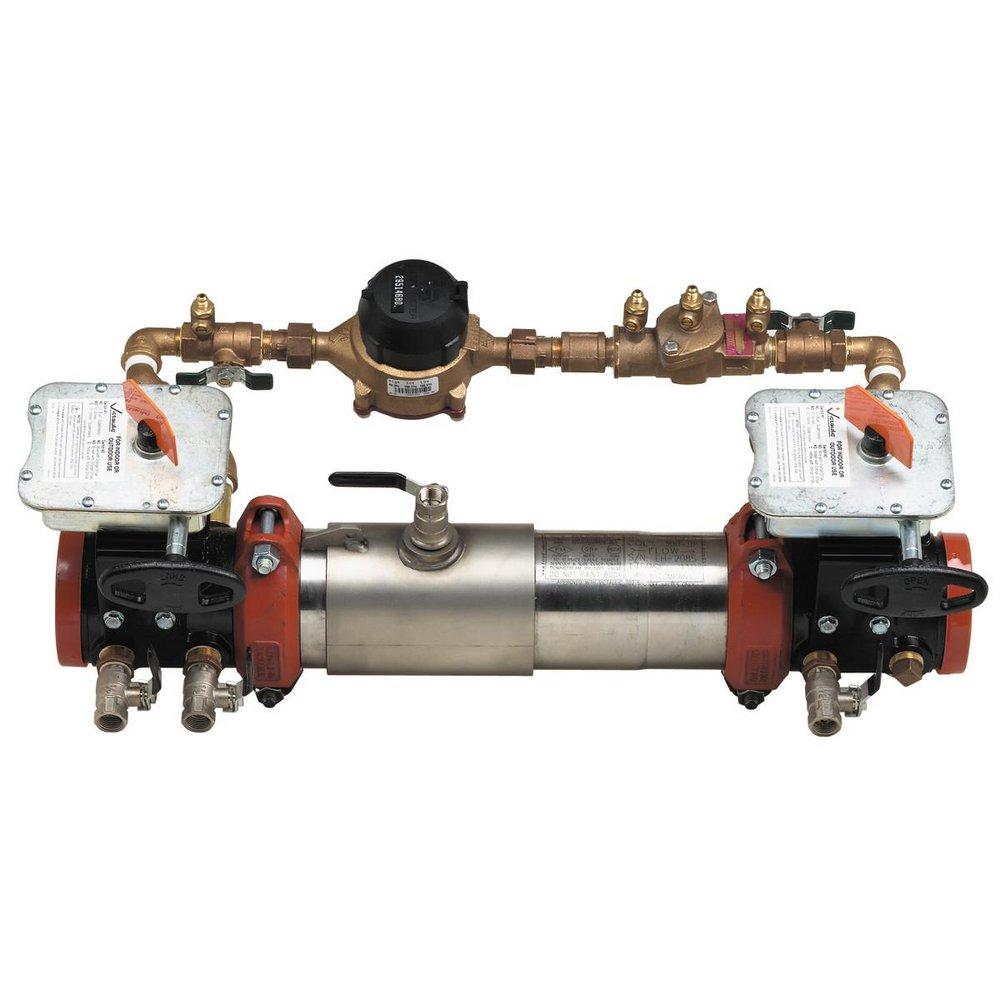

Ames Fire & Waterworks Stainless Steel Grooved 175 psi Backflow Preventer
Ames Fire & Waterworks

C300 4 in Stainless Steel Grooved Double Check Valve Assembly with Shutoff Valves, Water Meter, Test Cocks and Soft Seated Check Valve

  • Fast #
  • Part #AC300BFGGP
  • Item #2432934
  • Manufacturer Part #0191260
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Looking for compatible parts?
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Frequently Purchased Together

Product Details

Product Details

  • Stainless steel single housing with access sleeve
  • Furnished with a gallon per minute meter
  • Replaceable check disc rubber
  • Compact construction allows for smaller vaults and enclosures
  • Tri-link check valve assembly provides the lowest pressure loss
  • Stainless steel construction provides long term corrosion protection and maximum strength
  • The maximum working pressure is 175 psi (12.06 bar)
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ASSE Standards:
ASSE 1048
BAA Compliant:
Yes
CSA Certified:
CSA B64.5
Coating:
Polymer
Collection:
C300
End Connection 1:
Grooved
End Connection 2:
Grooved
End Connections:
Grooved
FM Approved:
Yes
Height:
16 in
Included:
Shutoff Valve(s), Water Meter, Test Cock(s), Soft Seated Check Valve
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
29 in
Material:
Stainless Steel
Material Type:
304
Maximum Temperature:
140
Minimum Temperature:
33
Pressure - Maximum:
175 psi
Pressure Class:
150#
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Commercial, Industrial, Water
UL Listed:
Yes
Valve Body Material:
Stainless Steel
Valve Body Style:
Straight
Valve Disc Material:
Rubber
Valve Seat Material:
Rubber
Valve Size:
4 in
Valve Type:
Double Check Valve Assembly
Weight:
84 lb
Width:
33 in
