3/4 in Bronze FPT Double Check Valve Assembly with Ball Valves and Test Cocks

Ames Fire & Waterworks

Series 2000B 3/4 in Bronze FPT Double Check Valve Assembly with Ball Valves and Test Cocks

  • Fast #
  • Part #A2000BM3F
  • Item #3450001
  • Manufacturer Part #0062489
5 out of 5 Customer Rating
Brand image

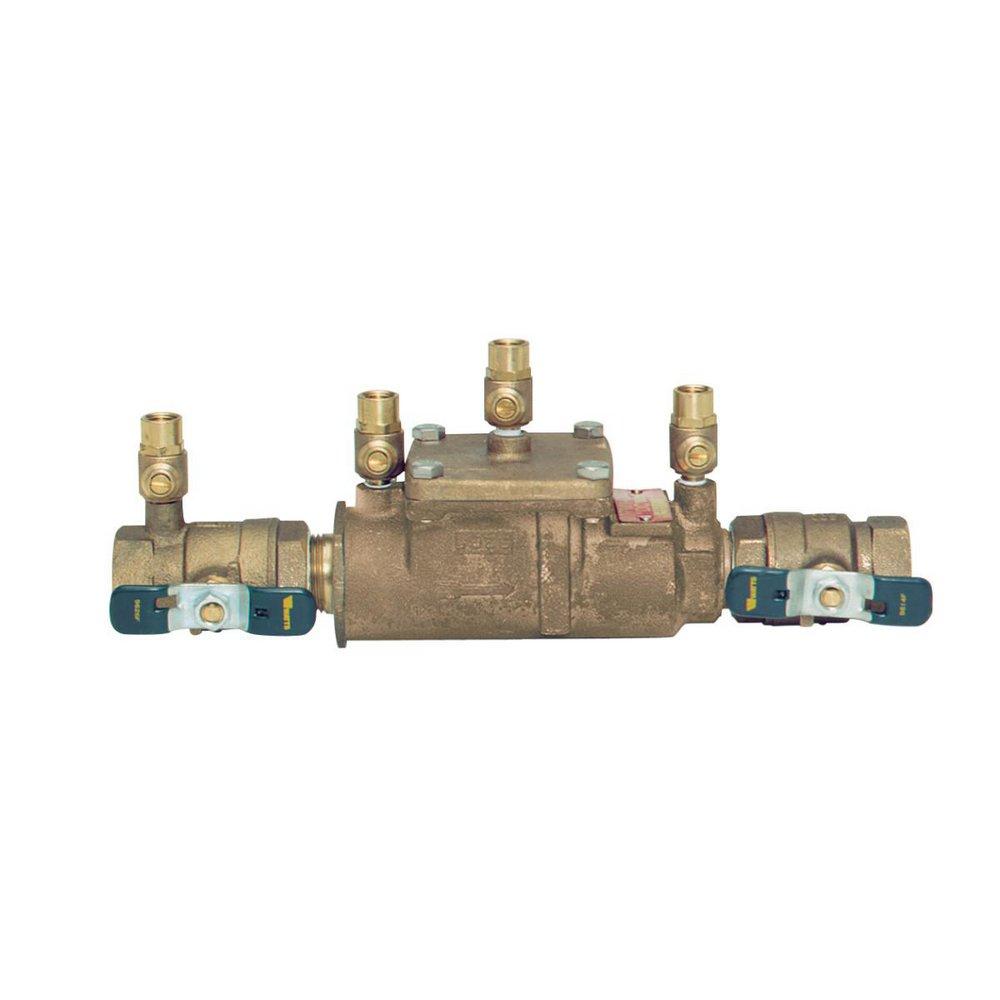

Ames Fire & Waterworks Bronze FNPT Backflow Preventer
Ames Fire & Waterworks Bronze FNPT Backflow Preventer
Ames Fire & Waterworks

Series 2000B 3/4 in Bronze FPT Double Check Valve Assembly with Ball Valves and Test Cocks

  • Fast #
  • Part #A2000BM3F
  • Item #3450001
  • Manufacturer Part #0062489
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Bronze body
  • One top entry access cover for easy maintenance
  • Top mounted ball valve type test cocks
  • No special tools are required
  • Compact design
  • Low pressure drop
  • Modular construction
  • The maximum working pressure is 175 psi (12.06 bar)
  • Temperature range is 33 to 180 degrees F (0.5 to 82 degrees C)
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ASSE Standards:
ASSE 1015
AWWA:
AWWA C-510
CSA Certified:
CSA B64.5
Coating:
Polymer
Collection:
Series 2000B
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Height:
3-9/10 in
IAPMO Listed:
Yes
Included:
Ball Valve(s), Test Cock(s)
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
11-1/8 in
Material:
Bronze
Maximum Temperature:
140
Minimum Temperature:
33
NSF Certified:
No
Number of Handles:
Two Handle
Pressure - Maximum:
175 psi
Proposition 65:
WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Commercial, Industrial, Water
UL Listed:
No
UPC:
098268890662
Valve Body Material:
Bronze
Valve Body Style:
Straight
Valve Disc Material:
Rubber
Valve Operator:
Tee Handle
Valve Seat Material:
Rubber
Valve Size:
3/4 in
Valve Type:
Double Check Valve Assembly
Weight:
4.7 lb
Width:
6 in
