2 in. Bronze FNPT Backflow Preventer

Ames Fire & Waterworks

Series 2000B-FP 2 in. Bronze FNPT Backflow Preventer

  • Fast #
  • Part #A22000BM1FP
  • Item #8017326
  • Manufacturer Part #88007307
3.4 out of 5 Customer Rating
Brand image

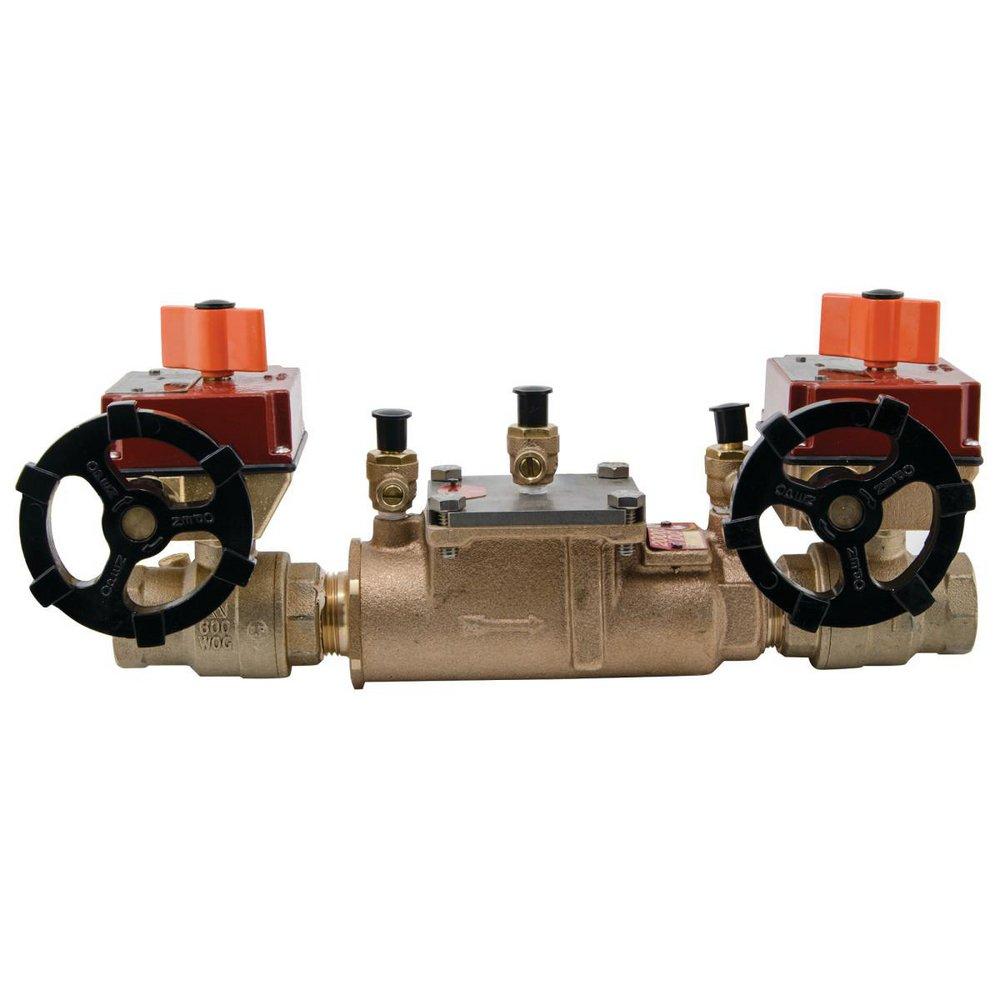

Ames Fire & Waterworks Bronze FNPT Backflow Preventer
Ames Fire & Waterworks Bronze FNPT Backflow Preventer
Ames Fire & Waterworks

Series 2000B-FP 2 in. Bronze FNPT Backflow Preventer

  • Fast #
  • Part #A22000BM1FP
  • Item #8017326
  • Manufacturer Part #88007307
3.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Salinas, CA
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Bronze body with gear operated slow close isolation valves
  • One top entry access cover for easy maintenance
  • Top mounted ball valve type test cocks
  • No special tools are required
  • Compact design
  • Low pressure drop
  • Modular construction
  • The maximum working pressure is 175 psi (12.06 bar)
  • Temperature range is 33 to 180 degrees F (0.5 to 82 degrees C)
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ANSI:
ANSI B1.20.1
ASME:
ASME B1.20.1
ASSE Standards:
ASSE 1015
AWWA:
AWWA C-510
CSA Certified:
CSA B64.5
Coating:
Polymer
Collection:
Series 2000B-FP
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Height:
8 in
IAPMO Listed:
Yes
Included:
Shutoff Valve(s), Test Cock(s)
Installation Type:
Horizontal, Vertical
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
19-1/2 in
Material:
Bronze
Maximum Temperature:
140
Minimum Temperature:
33
NSF Certified:
No
Number of Handles:
Two Handle
Pressure - Maximum:
175 psi
Recommended Valve Application:
Commercial, Residential, Industrial, Food Processing, Potable Water
UL Listed:
Yes
UPC:
737733032595
Valve Body Material:
Bronze
Valve Body Style:
Straight
Valve Disc Material:
Rubber
Valve Operator:
Gear Operator Handle
Valve Seat Material:
Rubber
Valve Size:
2 in
Valve Type:
Double Check Valve Assembly
Weight:
27.65 lb
Width:
19-11/25 in
