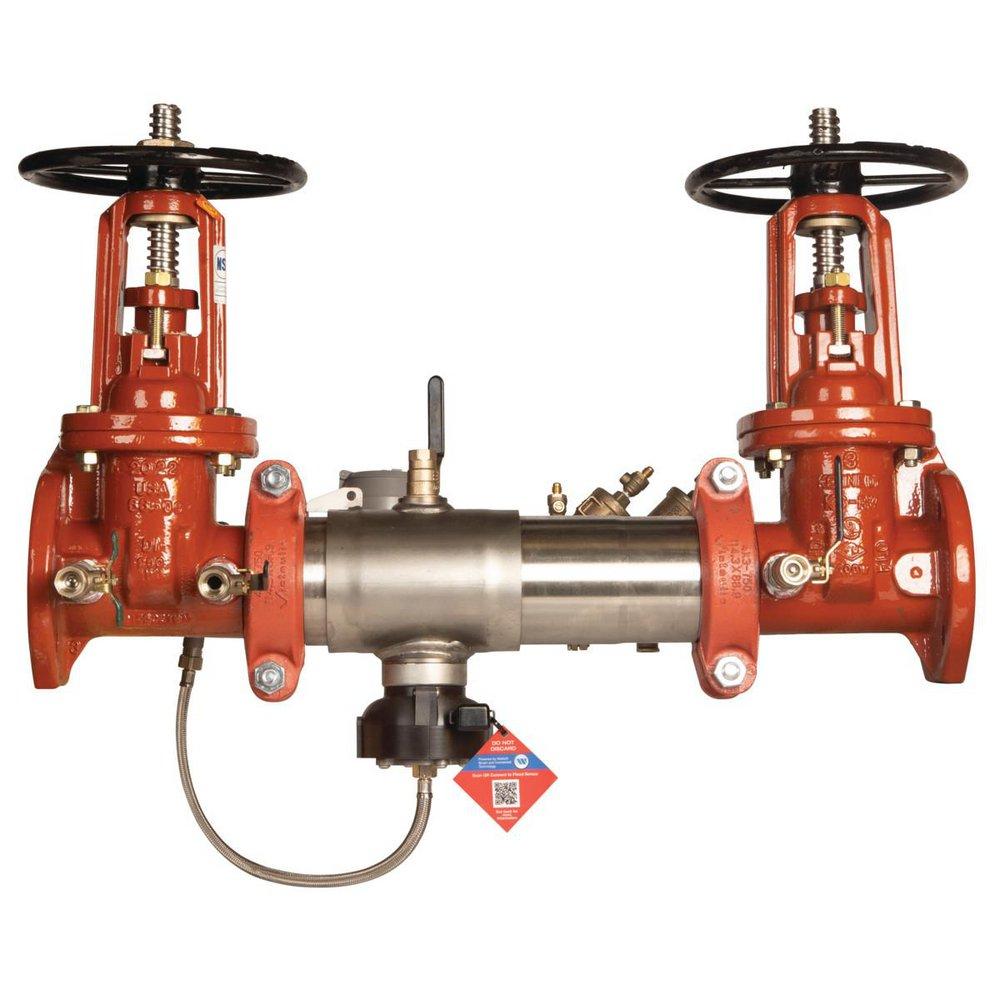

6 in. 304 Stainless Steel Flanged x Flanged x Barbed Backflow Preventer
Ames Fire & Waterworks
Series C500-FS 6 in. 304 Stainless Steel Flanged x Flanged x Barbed Backflow Preventer
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
Pick Up Not AvailableNot available in KS
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in KS
Purchase history
Ames Fire & Waterworks
Series C500-FS
6 in. 304 Stainless Steel Flanged x Flanged x Barbed Backflow Preventer
F0191315
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Features an integrated flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
- Alert features available with add-on sensor connection kit
- Entire valve body and closure sleeve is manufactured from 304 (schedule 40) stainless steel
- Drip tight shutoff valves
- Furnished with a gallon per minute meter
- Bronze body nickel plated test cocks
- Bottom mounted stainless steel relief valve
- Groove couplings allow for easy installation and pipe alignment
- UL and FM outside stem and yoke resilient seated gate valves
- Integrated sensor for flood detection
Specifications
- ASSE Standards:
- ASSE 1047
- AWWA:
- AWWA C-511
- BAA Compliant:
- No
- CSA Certified:
- CSA B64.4
- Coating:
- Polymer
- Collection:
- Series C500-FS
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connection 3:
- Barbed
- End Connections:
- Flanged x Flanged x Barbed
- FM Approved:
- Yes
- Height:
- 45
- IAPMO Listed:
- No
- Included:
- OS and Y Gate, Water Meter, Flood Sensor, Test Cock(s)
- Installation Type:
- Horizontal
- Lead Law Compliance Level:
- Applicable to Lead Leaching, Not Compliant
- Length:
- 2
- Material:
- Stainless Steel
- Material Type:
- 304
- NSF Certified:
- No
- Pressure - High:
- 175
- Pressure - Maximum:
- 175 psi
- Proposition 65:
- WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
- Recommended Valve Application:
- Water
- Temperature Range:
- 33 to 140 Deg F (0.5 to 60 Deg C)
- UL Listed:
- Yes
- UPC:
- 737733037309
- Valve Body Material:
- 304 Stainless Steel
- Valve Body Style:
- Straight
- Valve Disc Material:
- Rubber
- Valve Material:
- Stainless Steel
- Valve Seat Material:
- Rubber
- Valve Size:
- 6 in
- Valve Stem:
- Outside
- Valve Type:
- Reduced Pressure Detector Assembly
- Weight:
- 276
- Width:
- 26
