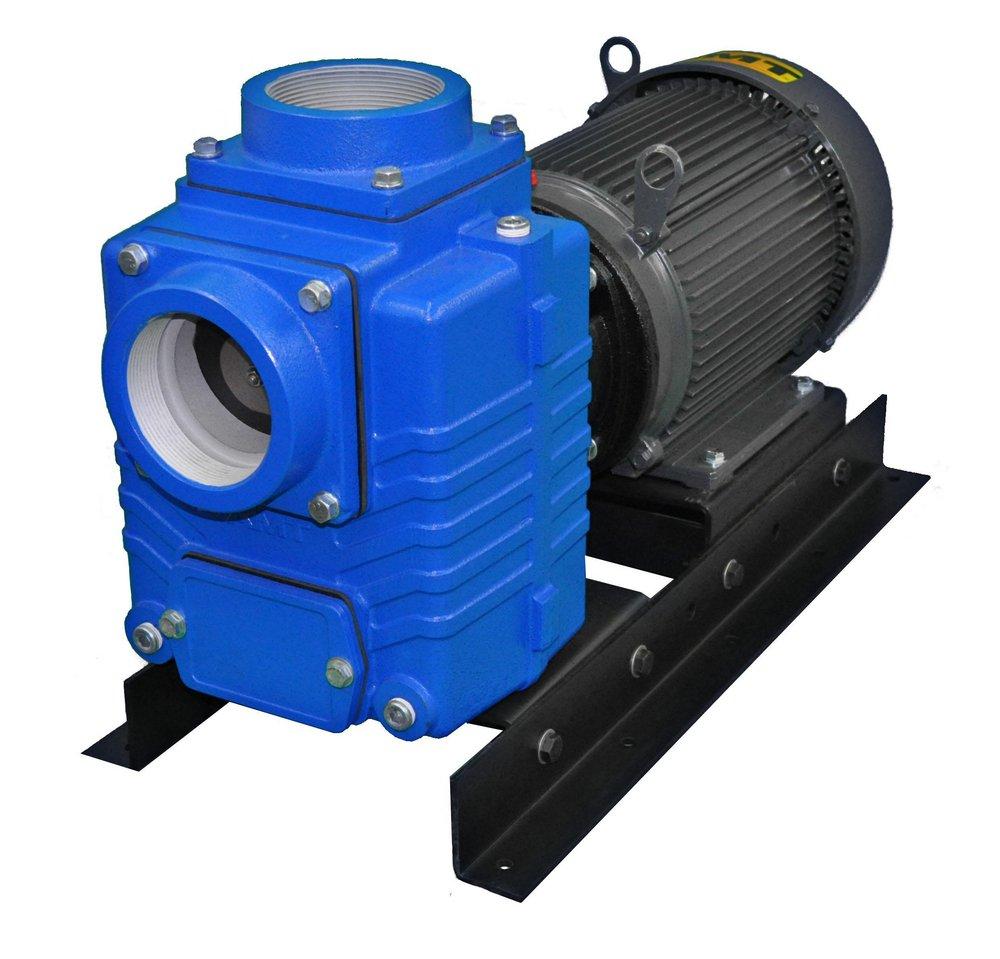

4 in. 230V 520 gpm 10 hp Cast Iron Self Priming Centrifugal Pump
AMT
4 in. 230V 520 gpm 10 hp Cast Iron Self Priming Centrifugal Pump
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
AMT
4 in. 230V 520 gpm 10 hp Cast Iron Self Priming Centrifugal Pump
4873-95
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Self-priming high capacity
- Stainless Steel impeller
- Dual volute design reduces radial load on impeller
- Built in check valve for faster priming
- Removable hand cleanout plate
- Handles dirty water with solids up to 1/2"
Documents
Specifications
- AMP:
- 40
- Connection Size:
- 4
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- Energy Star Compliant:
- No
- Flow Rate:
- 520 gpm
- Height:
- 16 in
- Horsepower:
- 10 hp
- IAPMO Listed:
- No
- Impeller:
- Semi-Open
- Length:
- 33-1/2 in
- Material:
- Rubber, Stainless Steel
- Material Type:
- Buna-N
- Maximum Feet of Head:
- 104
- Maximum Temperature:
- 180
- NEMA:
- NEMA 215JM
- NSF Certified:
- No
- Origin:
- Domestic
- Power Source:
- Electric
- Pump Application:
- Self-priming
- Pump Body Material:
- Cast Iron
- Pump Motor Type:
- TEFC
- Pump Phase:
- 1
- RPM:
- 3450
- UL Listed:
- No
- Volts:
- 230V
- Weight:
- 320 lb
- Width:
- 15 in
