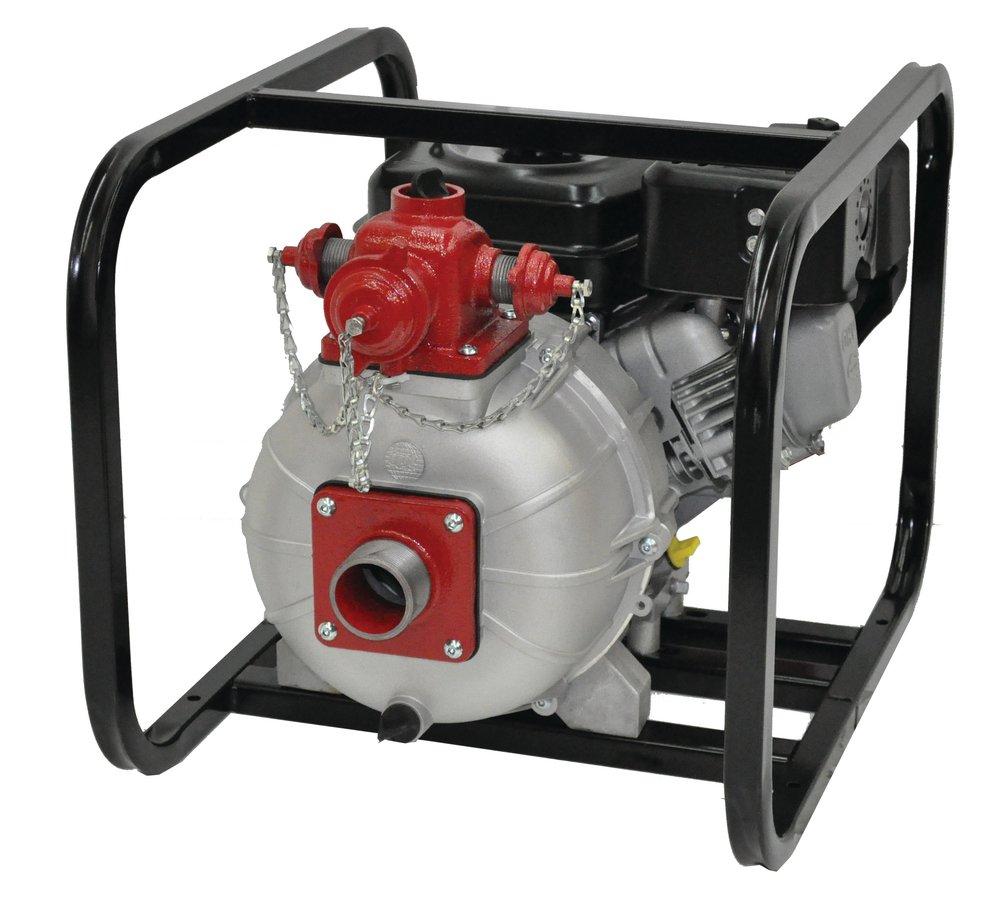

9 hp High Pressure Pump
AMT
9 hp High Pressure Pump
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
AMT
9 hp High Pressure Pump
2MP9HR
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Aluminum Casing with Cast Iron diffusers
- Silicon/Carbide with Viton® Mechanical Seals
- Two Stage Precision Cast Aluminum Impellers
- Three way discharge port multi sized
- Caps with chains are provided for all discharge ports
- These pumps are ideal for municipal brush fire trucks, forestry service or for use in boosting irrigation systems where power is not available
- Built in suction flap valve aides in repriming
Specifications
- Connection Size:
- 1
- Connection Type:
- MPT
- Flow Rate:
- 72 gpm
- Height:
- 23-3/5 in
- Horsepower:
- 9 hp
- Length:
- 31 in
- Maximum Feet of Head:
- 265
- Maximum Temperature:
- 200
- NSF Certified:
- No
- Pressure - Maximum:
- 175 psi
- Pump Application:
- Self-priming
- Pump Body Material:
- Aluminum, Cast Iron
- Pump Stage:
- 2
- Suction Line (OD):
- 1-1/2 in
- UL Listed:
- No
- Width:
- 22-1/2 in
