3HP Cast Iron Straight CENTRIFIGAL PUMP
AMT

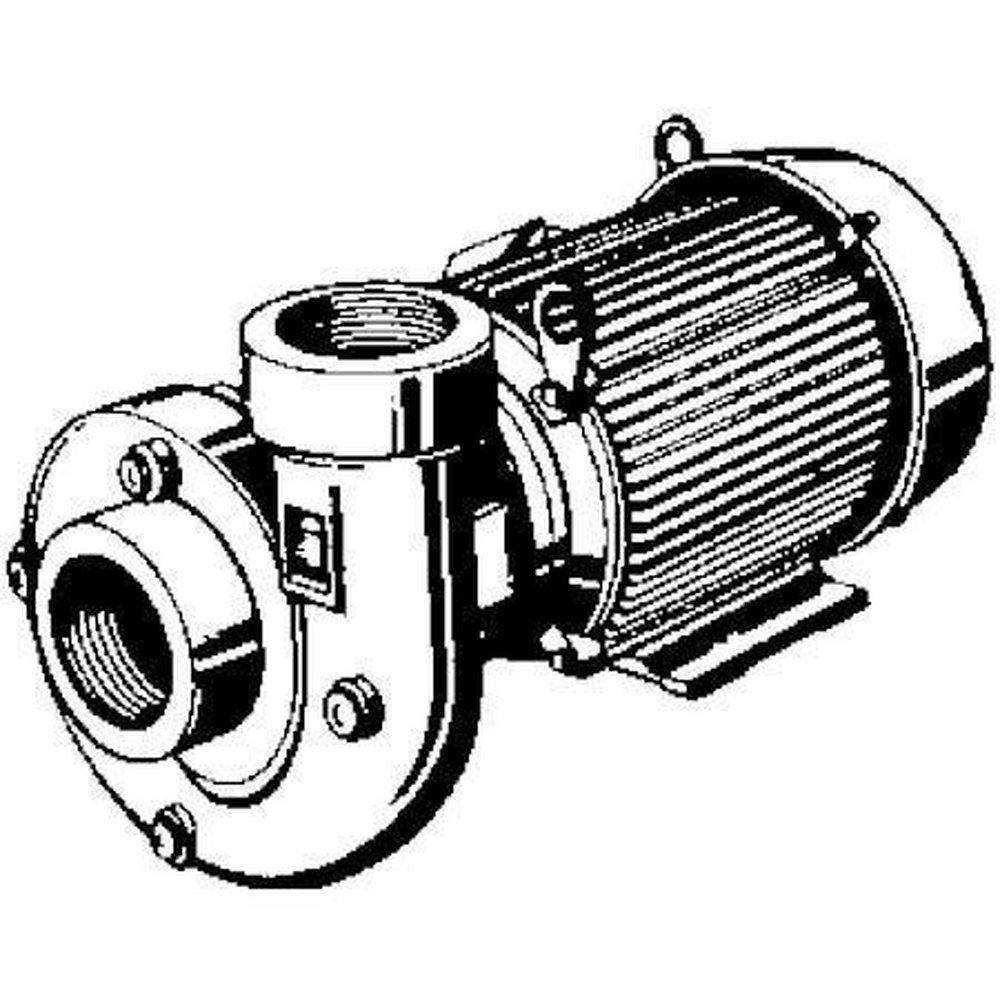

Vettis 3HP Cast Iron Straight CENTRIFIGAL PUMP
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
AMT
Vettis
3HP Cast Iron Straight CENTRIFIGAL PUMP
3151-95
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- All cast iron body
- Stainless Steel impeller
- Carbon/Ceramic Mechanical Seal w/Buna-N
- These pumps will handle the most demanding projects around your plant
- Ideal for transferring liquid and re-circulating lagoons or running a cooling tower
- The self cleaning impeller assures this pump will not bog down with debris
- Center suction and a discharge that rotates in 90° increments will make this easy to adapt to your current set up
- Motors are close coupled to the pump so there is no need to worry about couplings or shaft alignment
Specifications
- AMP:
- 8, 4
- Collection:
- Vettis
- Depth:
- 1-14/25 in
- Discharge:
- 1-1/2 in
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- Flow Rate:
- 190 gpm
- Height:
- 2-31/100 in
- Horsepower:
- 3 hp
- Impeller:
- Stainless Steel
- Material:
- Cast Iron
- Maximum Temperature:
- 180
- Power Source:
- AC
- Pressure - Maximum:
- 85 psi
- Pump Application:
- Pressure Booster
- Pump Body Material:
- Cast Iron
- Pump Motor Type:
- TEFC
- Pump Phase:
- 3
- UPC:
- 726846501418
- Volts:
- 230/460V
