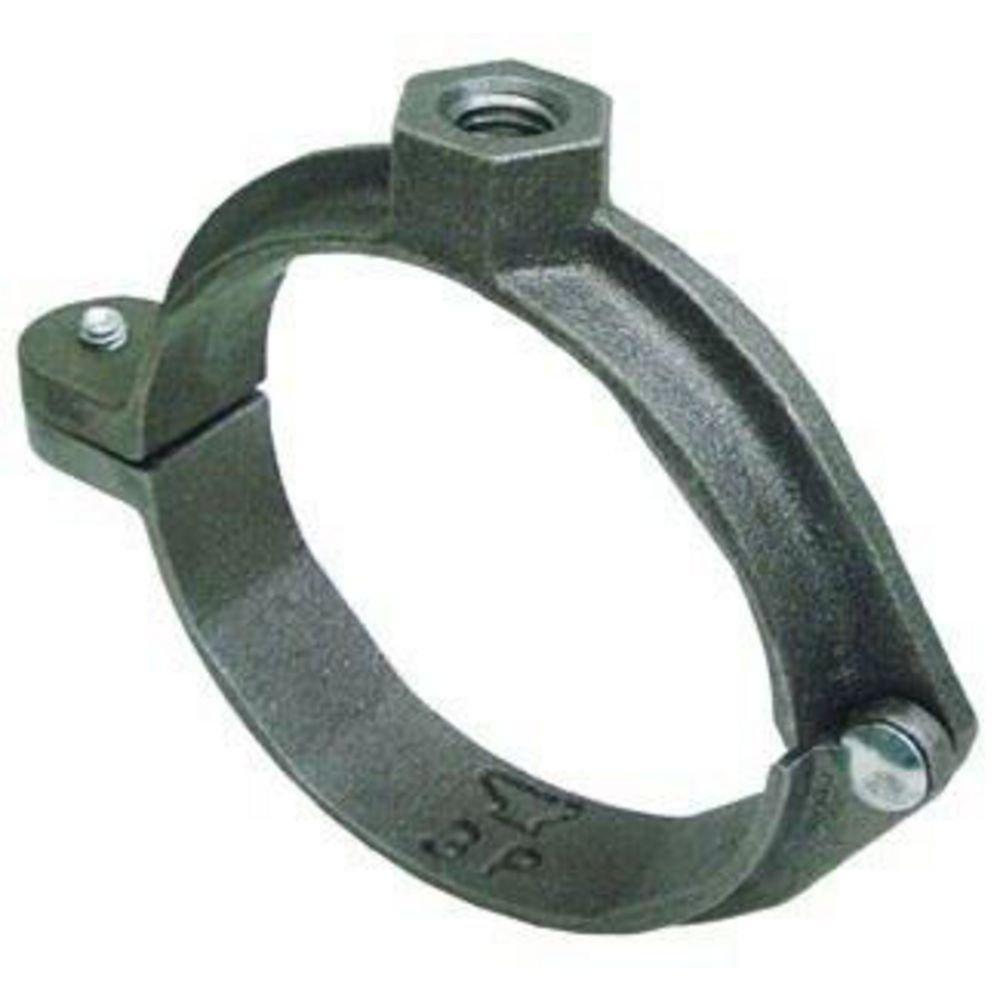

1-1/4 in. Galvanized Malleable Iron Hinged Split Ring Hanger
Anvil-Strut
Fig 138R 1-1/4 in. Galvanized Malleable Iron Hinged Split Ring Hanger
Package Quantity Info:
Each: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Anvil-Strut
Fig 138R
1-1/4 in. Galvanized Malleable Iron Hinged Split Ring Hanger
0560500225
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Malleable iron construction for strength and durability
- Hinged design with single closure screw for easy installation
- For support of non-insulated stationary piping
- Size range 3/8" through 3" pipe
- Available in plain or zinc plated finishes
- Allows installation without removing hanger rod
- Compatible with standard hanger rod sizes
- Suitable for temperatures up to 450°F
- Economical and reliable pipe clamp for hanger assemblies
- Used in fire sprinkler and mechanical piping support systems
Documents
Dimensions & Measurements
End Connection 1
Threaded
End Connections
Threaded
Fits Pipe Size
1-1/4 in
Rod Size (in)
3/8 in
Characteristics & Features
Coating
Plated
Collection
Fig 138R
Color Finish Category
Chromes
Color Finish Name
Plated
Material
Malleable Iron
Work Load Limit
180 lb
Electrical & Operational Information
Maximum Temperature
450
Warranty & Product Information
ANSI
ANSI 69
Application
Piping
FM Approved
No
MSS
MSS SP-58, MSS SP-69
Product Type
Pipe Clamp
UL Listed
No
UPC
690291608414
