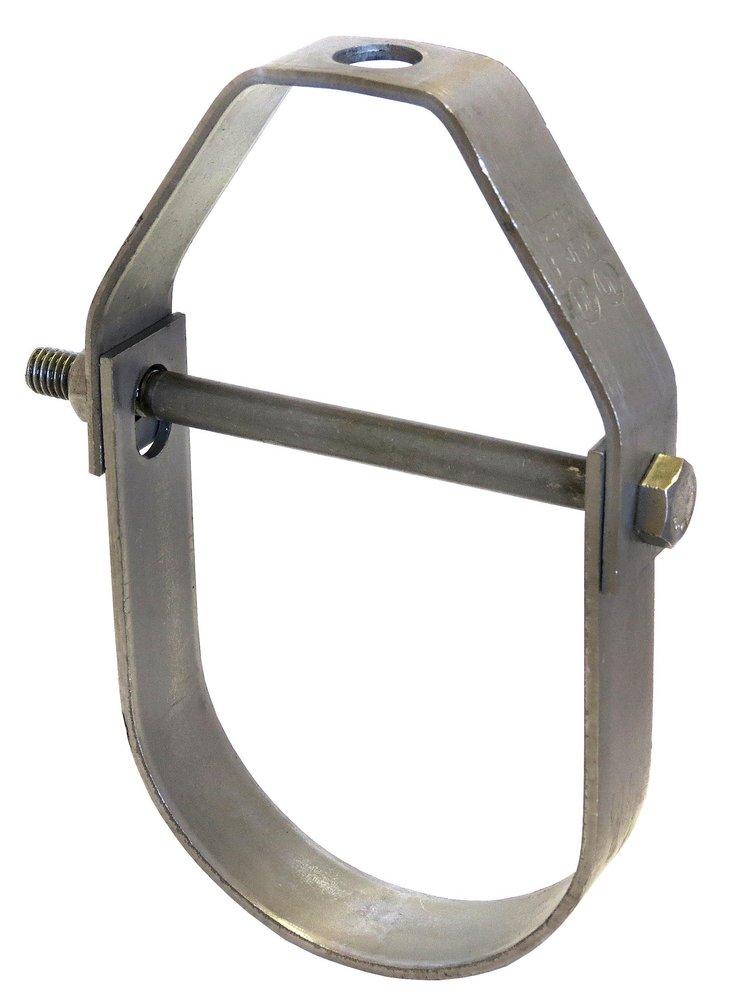

20 in. Hot Dipped Galvanized Carbon Steel Clevis Hanger
Anvil-Strut
Fig 260 20 in. Hot Dipped Galvanized Carbon Steel Clevis Hanger
Package Quantity Info:
Each: 1 Inner Pack: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Anvil-Strut
Fig 260
20 in. Hot Dipped Galvanized Carbon Steel Clevis Hanger
0500360193
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized
- Sizes 5" and up have rod and two nuts instead of bolt and nut; thread length on Clevis rod is such that the thread locks the nuts in place, and threads are not in shear plane
Documents
Specifications
- ANSI:
- ANSI SP-69
- Application:
- Stationary Piping
- Coating:
- Hot Dip Galvanized
- Collection:
- Fig 260
- FM Approved:
- Yes
- Fits Pipe Size:
- 20 in
- Height:
- 27-9/16 in
- MSS:
- MSS SP-58 Type 1, MSS SP-69
- Material:
- Carbon Steel
- Product Type:
- Clevis Hanger
- Rod Size (in):
- 1-1/4 in
- UL Listed:
- Yes
- UPC:
- 690291146503
- Width:
- 3 in
- Work Load Limit:
- 4800 lb
