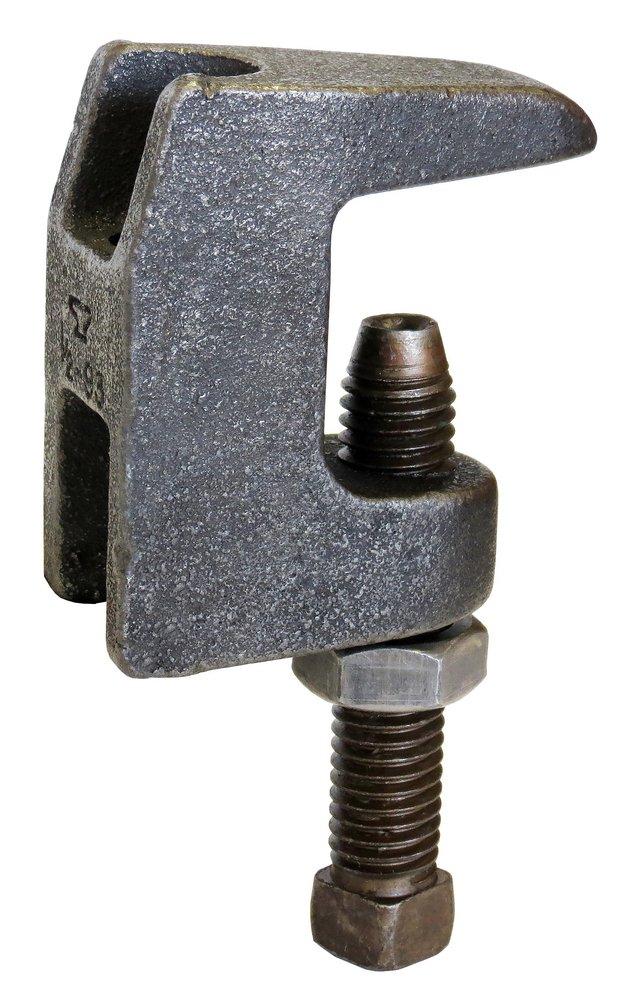

Fig 93 1-1/4 x 1/2 in. Plain Ductile Iron C-Clamp Beam Clamp

Brand image
AnvilStrut

Fig 93 1-1/4 x 1/2 in. Plain Ductile Iron C-Clamp Beam Clamp

  • Part #A93D
  • Item #2113941
  • Manufacturer Part #0500009170
3.8 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1
Out of Stock
  • Pick Up: Not available
  • Shipping: Not available

Product Details

  • Secured in place by a cup-pointed set screw tightened against the flange. A jam nut is provided for tightening the set screw against the body casting
  • Thru tapping of the body casting permits extended adjustment of the threaded rod
  • They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
  • Wider throat for attaching to flange with up to 1-1/4 in thickness

Documents


Specifications

ANSI:
ANSI SP-69
Application:
Residential
Coating:
Plain
Collection:
Fig 93
Color Finish Category:
Blacks
Color Finish Name:
Black
FM Approved:
Yes
Fits Pipe Size:
1-1/4 in
Height:
2-11/32 in
Length:
1-3/4 in
MSS:
MSS SP-58 Type 19, MSS SP-58 Type 23, MSS SP-69
Material:
Ductile Iron
Product Type:
C-Clamp
Rod Size (in):
1/2 in
UL Listed:
Yes
Weight:
0.75 lb
Width:
1-1/16 in
Work Load Limit:
950 lb
