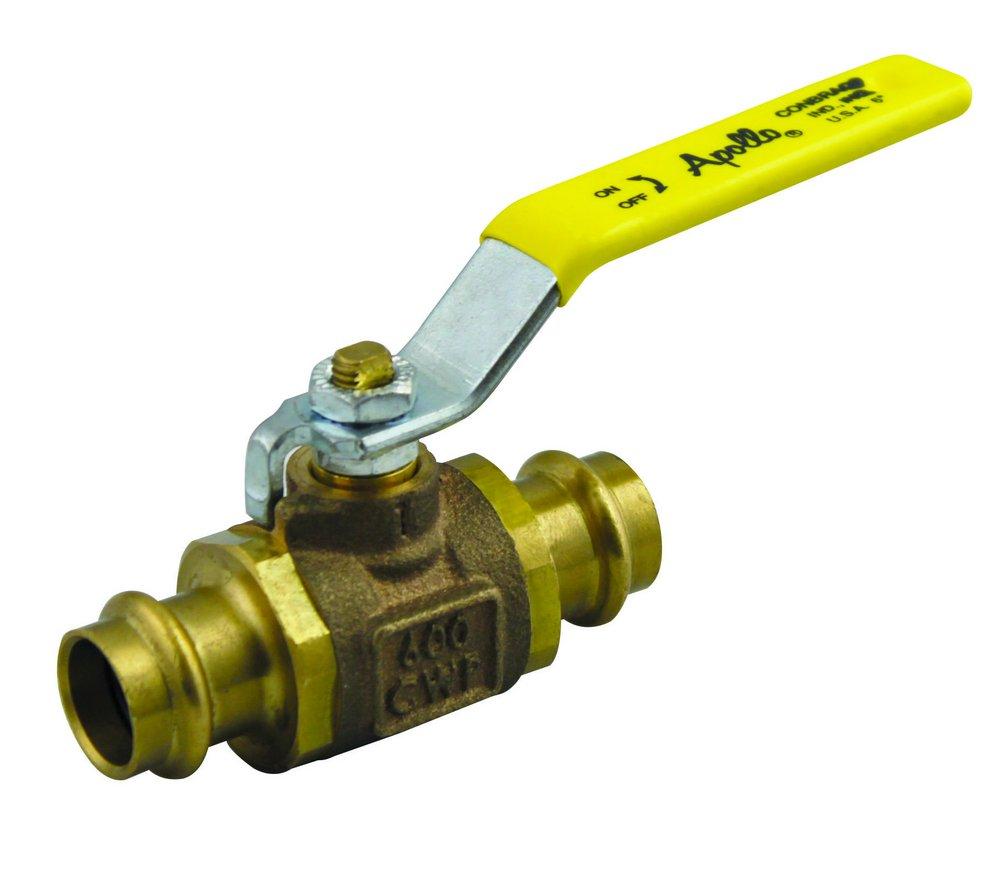

1-1/4 in. Cast Bronze Full Port Press 200# Ball Valve

Apollo® Press

77W-A Series 1-1/4 in. Cast Bronze Full Port Press 200# Ball Valve

  • Fast #
  • Part #A77W14611A
  • Item #7958028
  • Manufacturer Part #77W14611A
3.6 out of 5 Customer Rating
Brand image
Apollo® Press Bronze Cast Bronze Full Port Press 200# Ball Valve
Apollo® Press Bronze Cast Bronze Full Port Press 200# Ball Valve
Apollo® Press

77W-A Series 1-1/4 in. Cast Bronze Full Port Press 200# Ball Valve

  • Fast #
  • Part #A77W14611A
  • Item #7958028
  • Manufacturer Part #77W14611A
3.6 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 8 Pallet: 216
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Heavy Pattern Cast Bronze Body
  • Full-Port Flow
  • Adjustable Stem Packing
  • Fast, Reliable, Economical Press Installation
  • Ridgid® XL Press Tool Compatible
  • Leak Before Press® Technology
  • Blowout-Proof Stem
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ANSI:
ANSI Z1157
ASTM:
ASTM B-16 UNS C36000, ASTM B-283 C37700
BAA Compliant:
Yes
Clean Bagged:
No
Collection:
77W-A Series
Color Finish Name:
Bronze
End Connection 1:
Press
End Connection 2:
Press
End Connections:
Press
FM Approved:
Yes
Handle Length (in):
7-1/25 in
Handle Material:
Nylon
Handle Type:
Lever
IAPMO Listed:
Yes
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
3-13/100 in
MSS:
MSS SP-110
Material:
Bronze
Material Type:
C89836
Maximum Temperature:
250
Minimum Temperature:
0
NSF Certified:
No
Number of Pieces:
1 Piece
Origin:
Domestic
Pressure - High:
300
Pressure - Low:
0
Recommended Valve Application:
Cold Water, Hot Water, Hydronics, Steam
Temperature Range:
Up to 250 Deg F
Temperature Rating:
250
UL Listed:
No
UPC:
191988040741
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Disc Material:
Chrome Plated Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Multi-Fill PTFE
Valve Size:
1-1/4 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
4.3 lb
cUPC Certified:
No
