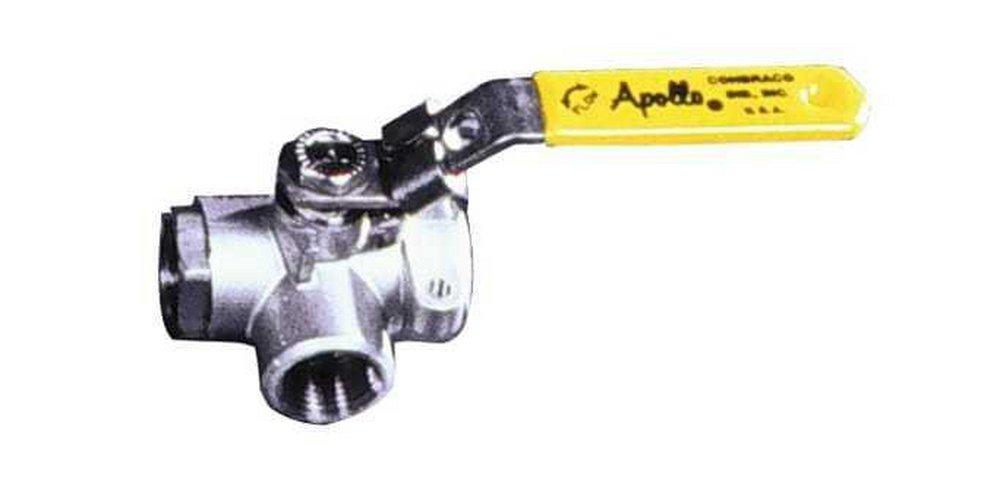

1/2 in. Stainless Steel Standard Port FNPT 800# Ball Valve
This product has been replaced by
Apollo Valves 1 in Stainless Steel Standard Port FPT Ball Valve
Manufacturer Part #766032757A
Manufacturer Part #766032757A
Apollo Valves
76-600 Series 1/2 in. Stainless Steel Standard Port FNPT 800# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 10 Case: 40 Pallet: 1080
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in NC
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in NC
Purchase history
Apollo Valves
76-600 Series
1/2 in. Stainless Steel Standard Port FNPT 800# Ball Valve
7660357A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Reinforced seats
- Meets NACE MR0175 (2000) & MR0103 (2012)
- Blowout-proof stem design
- Adjustable packing gland
- Investment cast body
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61
- ASME:
- No
- ASSE Standards:
- No
- ASTM:
- ASTM A-351
- AWWA:
- No
- CSA Certified:
- No
- Clean Bagged:
- Yes
- Collection:
- 76-600 Series
- Color Finish Name:
- Stainless Steel
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connection 3:
- FNPT
- End Connections:
- FNPT
- FM Approved:
- No
- Fire Suppression System Rated:
- No
- Handle Length (in):
- 3-22/25 in
- Handle Material:
- Stainless Steel/Vinyl
- Handle Type:
- Lever
- IAPMO Listed:
- No
- ISO:
- No
- Lead Law Compliance Level:
- Lead Free Not Certified, Approved for Non-Potable Water Applications
- Lead Law Compliant:
- Yes
- Length:
- 2-23/100 in
- MA Approved:
- No
- Material:
- Stainless Steel
- Material Type:
- CF8M
- Maximum Temperature:
- 500
- Minimum Temperature:
- -20
- NSF:
- NSF 61
- NSF Certified:
- Yes
- Number of Pieces:
- 1 Piece
- Origin:
- Domestic
- Pressure - High:
- 800
- Pressure Class:
- 800#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Recommended Valve Application:
- Water
- Temperature Range:
- 0 to 500 Deg F
- Temperature Rating:
- 500
- UL Listed:
- No
- UPC:
- 670750238840
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- 3-way
- Valve Disc Material:
- Stainless Steel
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.75 lb
- cUPC Certified:
- No
