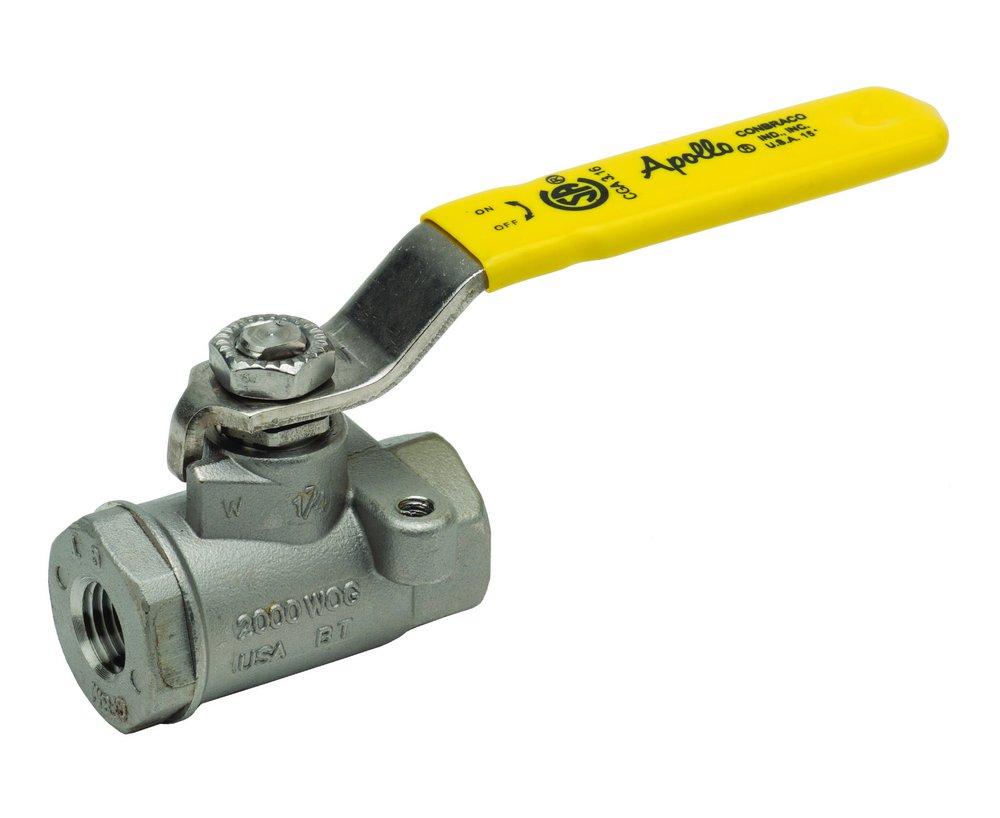

1/2 in. Stainless Steel Standard Port FNPT Ball Valve
You last purchased this on
Apollo Valves
76 Series 1/2 in. Stainless Steel Standard Port FNPT Ball Valve
Purchase history
Apollo Valves
76 Series
1/2 in. Stainless Steel Standard Port FNPT Ball Valve
7610327UAA
Order #
Order Date
Job Name
My PO#
Frequently Purchased Together
Product Details
Product Details
- ApolloValves76-100Seriesisathreaded,2-piecedesign,standardport,stainlesssteelballvalve.
- InvestmentCastComponents. ReinforcedSeats. Mountingpadforeasyactuatormounting. Blowout-proofstemdesign. Adjustablepackinggland. StainlessSteelLeverandNutMeetsNACEMR0175(2000)&MR0103(2012)
-
Lead Law Compliant
Documents
Specifications
- ANSI:
- ANSI 372, ANSI 61
- API:
- API 607
- ASTM:
- ASTM A-351 CF8M
- BAA Compliant:
- Yes
- CSA Certified:
- CSA 3.16
- Clean Bagged:
- No
- Collection:
- 76 Series
- Color Finish Name:
- Silver
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- Handle Type:
- Lever
- ISO:
- ISO 10497:2010
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 2-23/100 in
- MSS:
- MSS SP-110
- Material:
- Stainless Steel, Plastic
- Material Type:
- RPTFE
- NSF:
- NSF 372, NSF 61
- NSF Certified:
- Yes
- Number of Pieces:
- 2 Piece
- Pressure - High:
- 150, 2000
- Pressure Class:
- 150#
- Recommended Valve Application:
- Potable Water, Steam, Vacuum
- Temperature Range:
- -20 to 500 Deg F
- UL Listed:
- No
- Valve Body Material:
- Stainless Steel
- Valve Operator:
- Latch Lock Lever Handle
- Valve Port Opening:
- Standard Port
- Valve Seat Material:
- RPTFE
- Valve Size:
- 1/2 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 0.63 lb
