1-1/2 in. Bronze Full Port Solder 600# Ball Valve

Apollo Valves

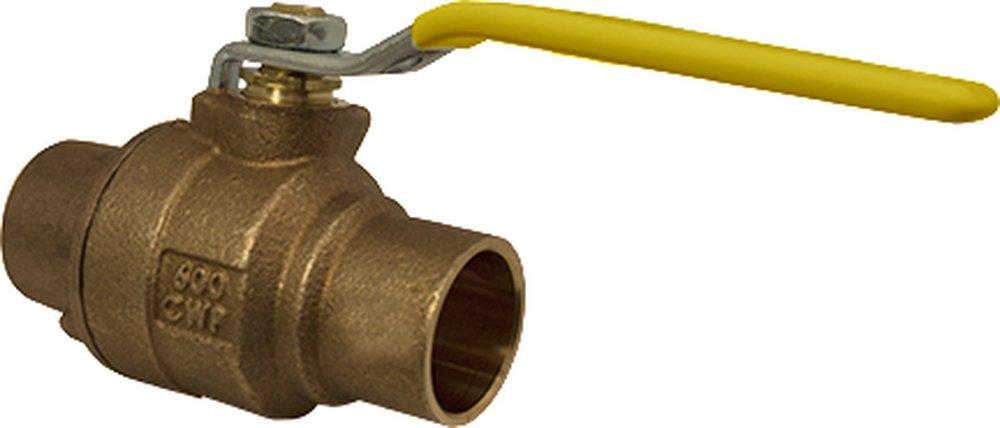

77C-A Series 1-1/2 in. Bronze Full Port Solder 600# Ball Valve

Brand image
Apollo Valves

77C-A Series 1-1/2 in. Bronze Full Port Solder 600# Ball Valve

  • Part #A77C20704A
  • Item #7099899
  • Manufacturer Part #77C20704A
3.8 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 CA: 6
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Blowout-Proof Stem Design
  • Adjustable Stem Packing
  • RPTFE Seats & Seals
  • MADE IN THE USA
  • 100% Factory Tested
  • Full-Port “Solid Ball” Design

Specifications

ANSI:
ANSI Z1157
ASTM:
ASTM B-16
BAA Compliant:
Yes
Clean Bagged:
No
Collection:
77C-A Series
Color Finish Name:
Bronze
End Connection 1:
Sweat
End Connection 2:
Sweat
End Connections:
Sweat
FM Approved:
No
Fire Suppression System Rated:
No
Handle Length (in):
5-37/100 in
Handle Material:
Zinc Plated Steel
Handle Type:
Lever
Height:
2-9/10 in
IAPMO Listed -:
Yes
ISO:
ISO 9001:2008
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
4-89/100 in
MSS:
MSS SP-110
Material:
Cast Bronze
Material Type:
B584, C84400
Maximum Temperature:
450
Minimum Temperature:
-20
NSF Certified:
No
Number of Pieces:
1 Piece
Origin:
Domestic
Pressure - Maximum:
600 psi
Pressure Class:
600#
Recommended Valve Application:
Potable Water, Steam
Temperature Range:
-20 to 450 Deg F
Temperature Rating:
450
UL Listed:
No
Valve Body Material:
Bronze
Valve Disc Material:
Brass
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
1-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
4.6 lb
cUPC Certified:
Yes
