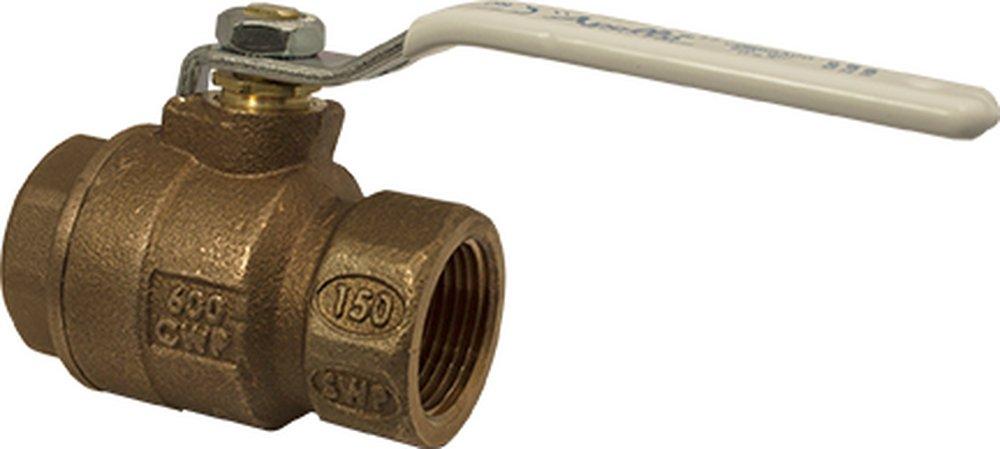

3/8 in. Bronze Full Port NPT 600# Ball Valve

Apollo Valves

77CLF-A Series 3/8 in. Bronze Full Port NPT 600# Ball Valve

Brand image
Apollo Valves

77CLF-A Series 3/8 in. Bronze Full Port NPT 600# Ball Valve

  • Part #A77CLF10201A
  • Item #7099853
  • Manufacturer Part #77CLF10201A
5 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 10 CA: 100
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Blow-out proof stem design
  • Adjustable stem packing
  • Multi-fill PTFE seats and seals
  • Made in the USA
  • RPTFE seats & seals
  • Factory tested
  • Full-port, solid ball design
  • Lead Law Compliant


Specifications

ANSI:
ANSI 372, ANSI 61, ANSI Z1157
ASTM:
ASTM B-16, ASTM B-584 C89836
Collection:
77CLF-A Series
Color Finish Name:
Yellow
End Connection 1:
FPT
End Connection 2:
FPT
End Connections:
FPT
FM Approved:
No
Handle Length (in):
2-41/50 in
Handle Material:
Zinc Plated Steel
IAPMO Listed -:
Yes
ISO:
ISO 9001:2008
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-9/100 in
MSS:
MSS SP-110
Material:
Bronze, Plastic, Steel
Material Type:
RPTFE
Maximum Temperature:
450
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
150, 600
Pressure Class:
150#, 600#
Recommended Valve Application:
Steam, Potable Water
UL Listed:
No
Valve Body Material:
Bronze
Valve Body Style:
2 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
3/8 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
0.6 lb
cUPC Certified:
Yes
