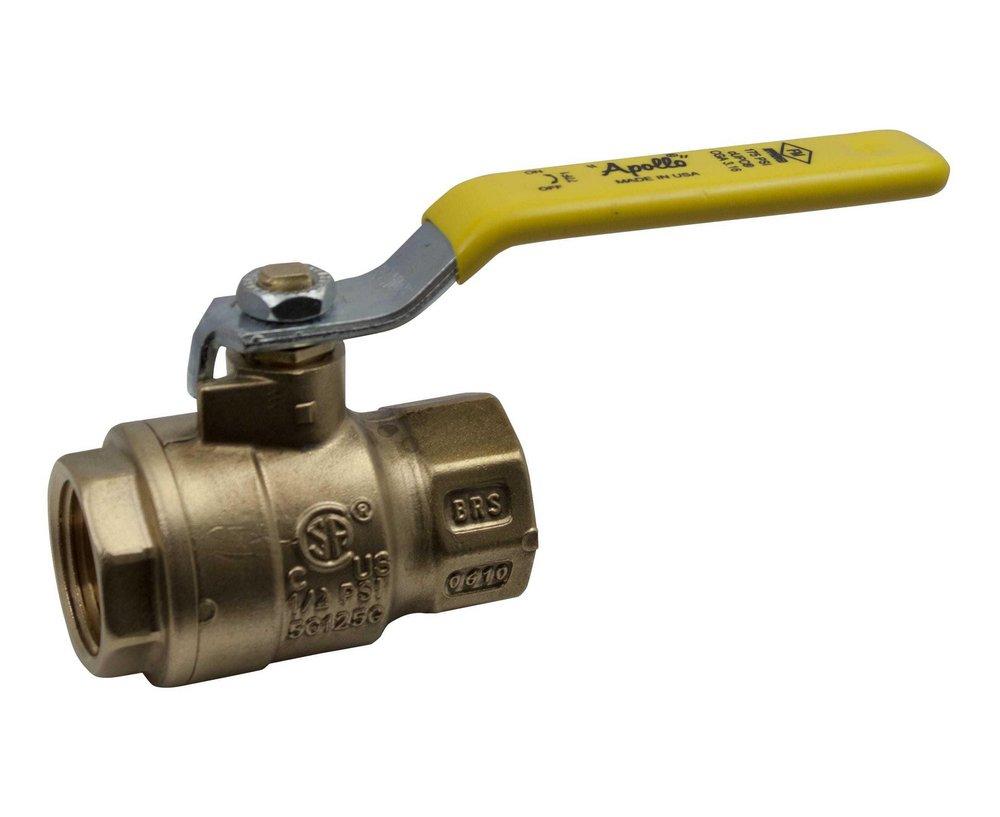

1 in. Brass Full Port NPT 400# Ball Valve

Apollo Valves

77FLF-100 Series 1 in. Brass Full Port NPT 400# Ball Valve

Brand image
Apollo Valves

77FLF-100 Series 1 in. Brass Full Port NPT 400# Ball Valve

  • Part #A77FLF10527
  • Item #4700837
  • Manufacturer Part #77FLF10527
5 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Heavy Pattern Forged Design
  • Full-Port Flow
  • Lead Free* Materials and Approvals
  • Dezincification Resistant Materials
  • Blowout-Proof Stem
  • 2-1/2” - 4” Sizes Now Feature 316SS Ball and Stem (Standard)
  • Adjustable Stem Packing
  • Superior RPTFE Seats and Packing
  • Silicone Free Assembly
  • 100% Factory Tested
  • Lead Law Compliant


Specifications

ANSI:
ANSI Z21.15
ASME:
ASME B16.33
ASSE Standards:
No
ASTM:
ASTM B-16
AWWA:
No
BAA Compliant:
Yes
CARB OTC LEED Compliant:
No
CE Approved:
No
CSA Certified:
CSA 9.1
Clean Bagged:
No
Collection:
77FLF-100 Series
Color Finish Name:
Brass
EPA Compliant:
No
End Connection 1:
NPT
End Connection 2:
NPT
End Connections:
NPT
FM Approved:
No
Fire Suppression System Rated:
No
GSA Approved:
No
Handle Length (in):
3-43/50 in
Handle Material:
Plated Steel;Insulated Polyvinyl
Handle Type:
Lever
Height:
2-11/1100 in
IAPMO Listed -:
No
ISO:
ISO 9001-2008
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
3-1/5 in
MA Approved -:
No
MSS:
MSS SP-110
Material:
Brass
Material Type:
C27451
Maximum Temperature:
400
Minimum Temperature:
0
NEMA:
No
NSF:
NSF 61, NSF 372
NSF Certified:
No
Number of Pieces:
1 Piece
Origin:
Domestic
Pressure - Maximum:
400 psi
Pressure Class:
600#
Recommended Valve Application:
Potable Water
TIS:
No
Temperature Range:
0 to 400 Deg F (-18 to 204 Deg C)
Temperature Rating:
400
UL Listed:
Yes
Valve Body Material:
Brass
Valve Body Style:
2 piece
Valve Disc Material:
Brass
Valve Operator:
Locking Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
RPTFE
Valve Size:
1 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
1.291 lb
cUPC Certified:
Yes
