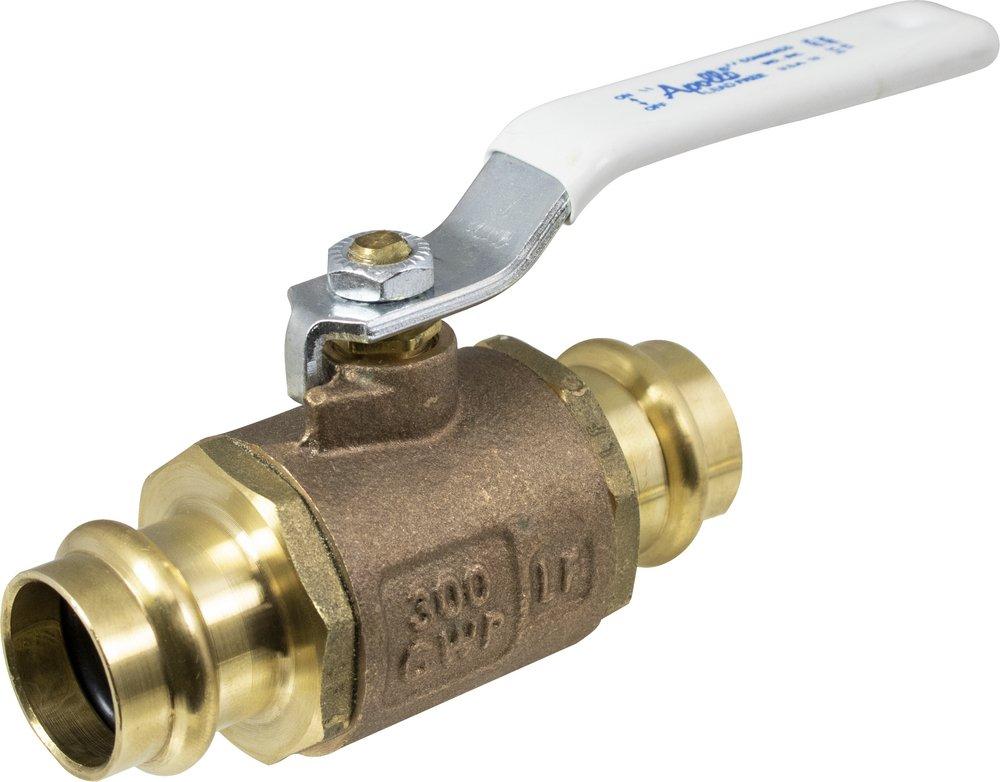

1/2 in. Bronze Full Port Press 300# Ball Valve
Apollo Valves
77WLF Series 1/2 in. Bronze Full Port Press 300# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 8 Case: 64Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Apollo Valves
77WLF Series
1/2 in. Bronze Full Port Press 300# Ball Valve
77WLF14301A
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Adjustable stem packing
- Fast, easy, economical installation
- Blow out proof stem
- Corrosion resistant materials
- Silicone free
- Ridgid® press tool compatible
- One hundred percent factory tested
- Lead free* brass & bronze materials
- Full-Port flow
- Leak before press® technology
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Press
End Connection 2
Press
End Connections
Press
Length
3-4/5 in
Pressure Class
300#
Valve Size
1/2 in
Weight
0.61 lb
Characteristics & Features
Collection
77WLF Series
Handle Material
Plated Steel
Material
Bronze, Brass, Plastic
Material Type
RPTFE
Valve Body Material
Bronze
Valve Body Style
2 piece
Valve Disc Material
Chrome Plated Brass
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
RPTFE
Valve Stem
Standard
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
250
Pressure - High
300
Temperature Range
0 to 250 Deg F (-18 to 121 Deg C)
Warranty & Product Information
ANSI
ANSI 372, ANSI 61, ANSI Z1157
ASTM
ASTM B-16 C36000, ASTM B-584 C89836, ASTM B-88K, ASTM B-88L, ASTM B-88M
FM Approved
No
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110
NSF
NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water, HVAC
UL Listed
No
UPC
191988086435
