This product requires certification to purchase.

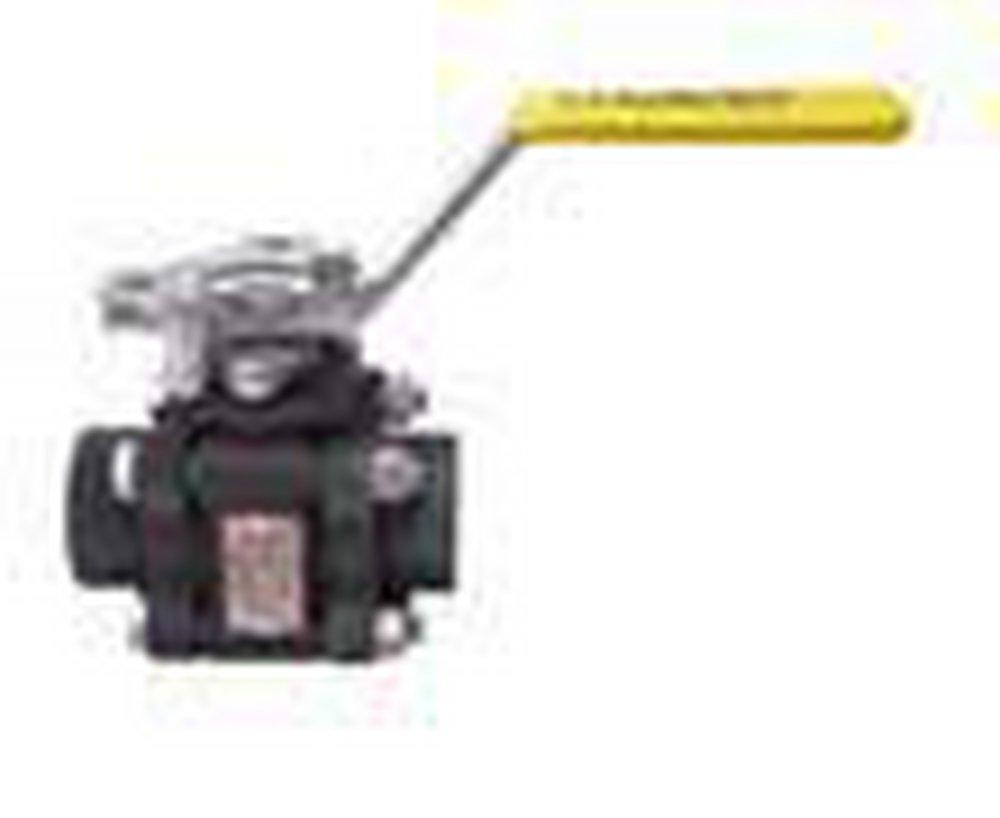

1-1/4 in. Carbon Steel Full Port Socket Weld 1500# Ball Valve

Apollo Valves

83A-200 Series 1-1/4 in. Carbon Steel Full Port Socket Weld 1500# Ball Valve

  • Fast #
  • Part #A83A24601
  • Item #3155950
  • Manufacturer Part #83A24601
4.5 out of 5 Customer Rating
Brand image
Apollo Valves Carbon Steel Full Port Socket Weld 1500# Ball Valve
Apollo Valves Carbon Steel Full Port Socket Weld 1500# Ball Valve
Apollo Valves

83A-200 Series 1-1/4 in. Carbon Steel Full Port Socket Weld 1500# Ball Valve

  • Fast #
  • Part #A83A24601
  • Item #3155950
  • Manufacturer Part #83A24601
4.5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 1 Pallet: 169
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Stainless steel trim and hardware
  • Swing-out center section
  • Pressure balanced solid ball
  • Compression controlled RPTFE gaskets
  • Anti-blowout one piece bottom entry stem
  • Two-position locking
  • Adjustable multi-piece PTFE "V" style packing
  • Cast bosses on the center-section and end caps for bleed and drain ports
  • Vacuum services to 29 in. of Hg
  • 150 psig saturated steam
  • Requires Certification

Specifications

ASME:
ASME B16.11
ASTM:
ASTM A-216 WCB, ASTM A-276
Clean Bagged:
No
Collection:
83A-200 Series
End Connection 1:
Socket Weld
End Connection 2:
Socket Weld
End Connections:
Socket Weld
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Stainless Steel
IAPMO Listed:
No
ISO:
ISO 5211
Length:
4-1/2 in
MA Approved:
No
MSS:
MSS SP-110, MSS SP-25
Material:
Carbon Steel
NSF Certified:
No
Origin:
Domestic
Pressure - High:
150
Pressure Class:
1500#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Steam, HVAC, Compressed Air
UL Listed:
No
UPC:
670750088476
Valve Body Style:
3 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Multi-Seal
Valve Size:
1-1/4 in
Valve Stem:
Bottom-loaded/Blowout-proof
Valve Type:
Ball Valve
Weight:
14.2 lb
Width:
3-21/25 in
cUPC Certified:
No
