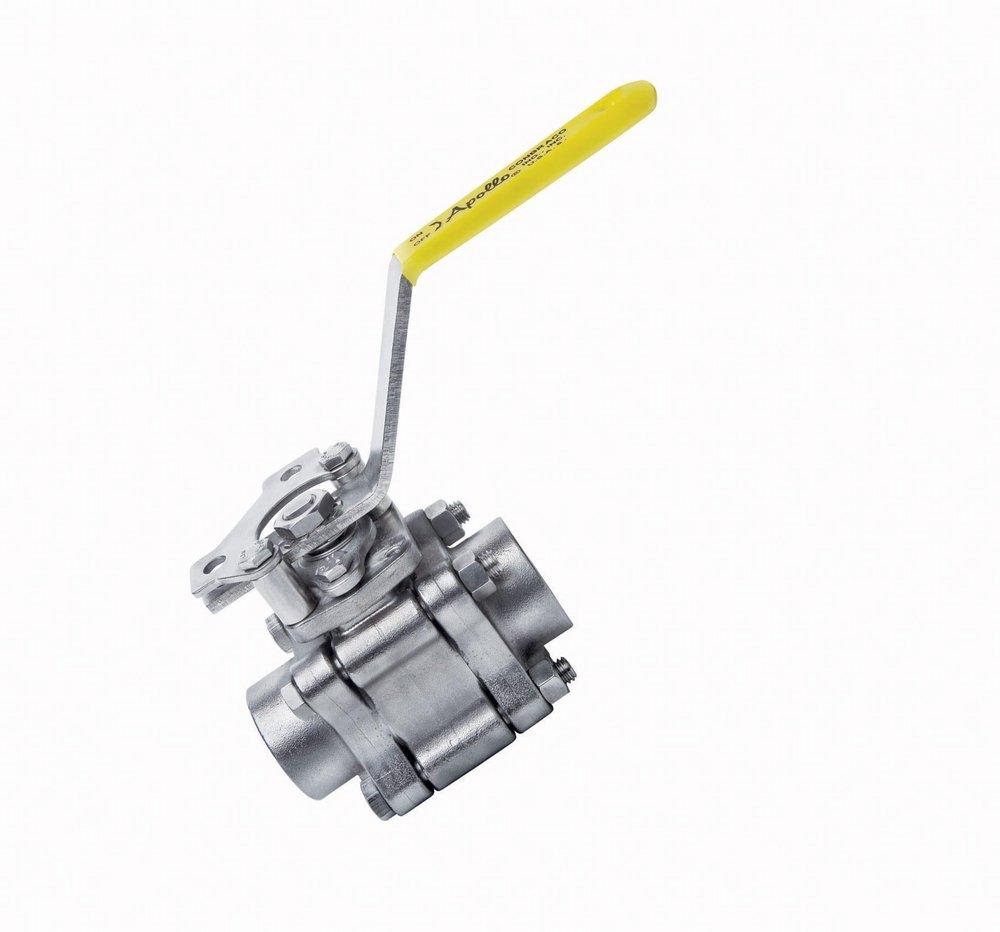

1/2 in. CF8M Stainless Steel Full Port NPT 1500# Ball Valve
Apollo Valves
86A-100 Series 1/2 in. CF8M Stainless Steel Full Port NPT 1500# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1 Case: 1 Pallet: 227Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
Apollo Valves
86A-100 Series
1/2 in. CF8M Stainless Steel Full Port NPT 1500# Ball Valve
86A10301
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Stainless steel trim and hardware
- Swing-out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Two position locking
- Application industrial
- Lead-free
- Made in USA
- 3-piece construction with enclosed fasteners
- Full port
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
FPT
End Connection 2
FPT
End Connections
FPT
Length
2-4/5 in
Pressure Class
1500#
Valve Size
1/2 in
Weight
2.3 lb
Width
2-1/50 in
Characteristics & Features
Collection
86A-100 Series
Handle Material
Stainless Steel
Material
Stainless Steel
Material Type
CF8M
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
CF8M
Valve Body Style
3 piece
Valve Disc Material
Stainless Steel
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Multi-Seal
Valve Stem
Bottom-Loaded/Blowout-Proof
Valve Type
Ball Valve
Electrical & Operational Information
Pressure - High
150, 1500
Temperature Range
-50 to 500 Deg F
Warranty & Product Information
ASME
ASME B1.20.1
ASTM
ASTM A-276 Type 316, ASTM A-351 CF3M, ASTM A-351 CF8M
FM Approved
No
IAPMO Listed
No
ISO
ISO 5211
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MSS
MSS SP-110, MSS SP-25
NSF Certified
No
Origin
Domestic
Recommended Valve Application
Compressed Air, Natural Gas
UL Listed
No
UPC
670750059827
