1 in. Stainless Steel Full Port NPT x Socket Weld 1500# Ball Valve

Apollo Valves

86A-100 Series 1 in. Stainless Steel Full Port NPT x Socket Weld 1500# Ball Valve

  • Fast #
  • Part #A86A10563
  • Item #3155947
  • Manufacturer Part #86A10563
4.1 out of 5 Customer Rating
Brand image

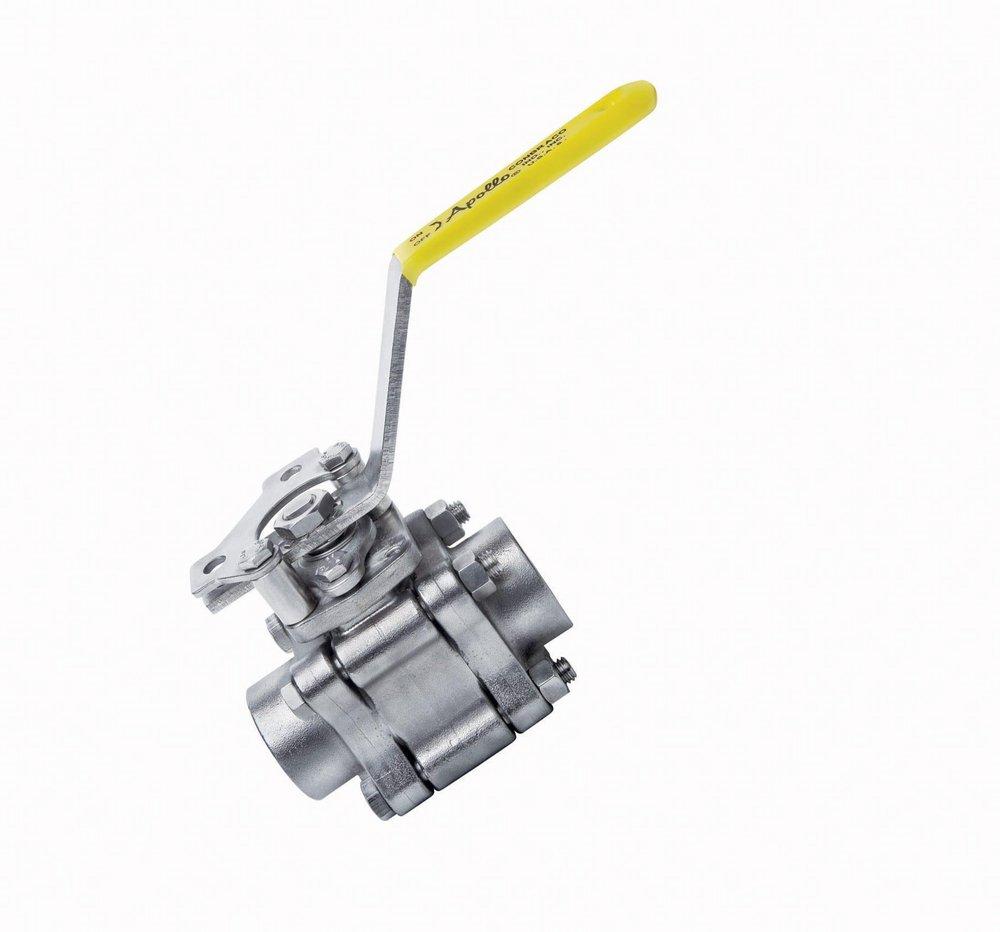

Apollo Valves Stainless Steel Full Port NPT x Socket Weld 1500# Ball Valve
Apollo Valves Stainless Steel Full Port NPT x Socket Weld 1500# Ball Valve
Apollo Valves

86A-100 Series 1 in. Stainless Steel Full Port NPT x Socket Weld 1500# Ball Valve

  • Fast #
  • Part #A86A10563
  • Item #3155947
  • Manufacturer Part #86A10563
4.1 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • 3-piece construction w/ enclosed fasteners
  • Full port
  • Stainless steel trim & hardware
  • Swing-out center section
  • Pressure balanced solid ball
  • Compression controlled RPTFE gaskets
  • Anti-blowout one piece bottom entry stem
  • Two-position locking
  • Adjustable multi-piece PTFE “V” style packing
  • Fully machined ISO 5211 mounting
  • Requires Certification

  • Lead Law Compliant

Specifications

ASME:
ASME B1.20.1
ASTM:
ASTM A-276, ASTM A-351 CF3M, ASTM A-351 CF8M
Clean Bagged:
No
Collection:
86A-100 Series
End Connection 1:
NPT
End Connection 2:
Socket Weld
End Connections:
NPT x Socket Weld
FM Approved:
No
Fire Suppression System Rated:
No
Handle Material:
Stainless Steel
IAPMO Listed:
No
ISO:
ISO 5211
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
4-19/100 in
MA Approved:
No
MSS:
MSS SP-110, MSS SP-25
Material:
Stainless Steel
Material Type:
CF8M
NSF Certified:
No
Origin:
Domestic
Pressure - High:
150
Pressure Class:
1500#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Compressed Air, Natural Gas
UL Listed:
No
UPC:
670750087653
Valve Body Style:
3 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Multi-Seal
Valve Size:
1 in
Valve Stem:
Bottom-loaded/Blowout-proof
Valve Type:
Ball Valve
Weight:
5.7 lb
Width:
2-67/100 in
cUPC Certified:
No
