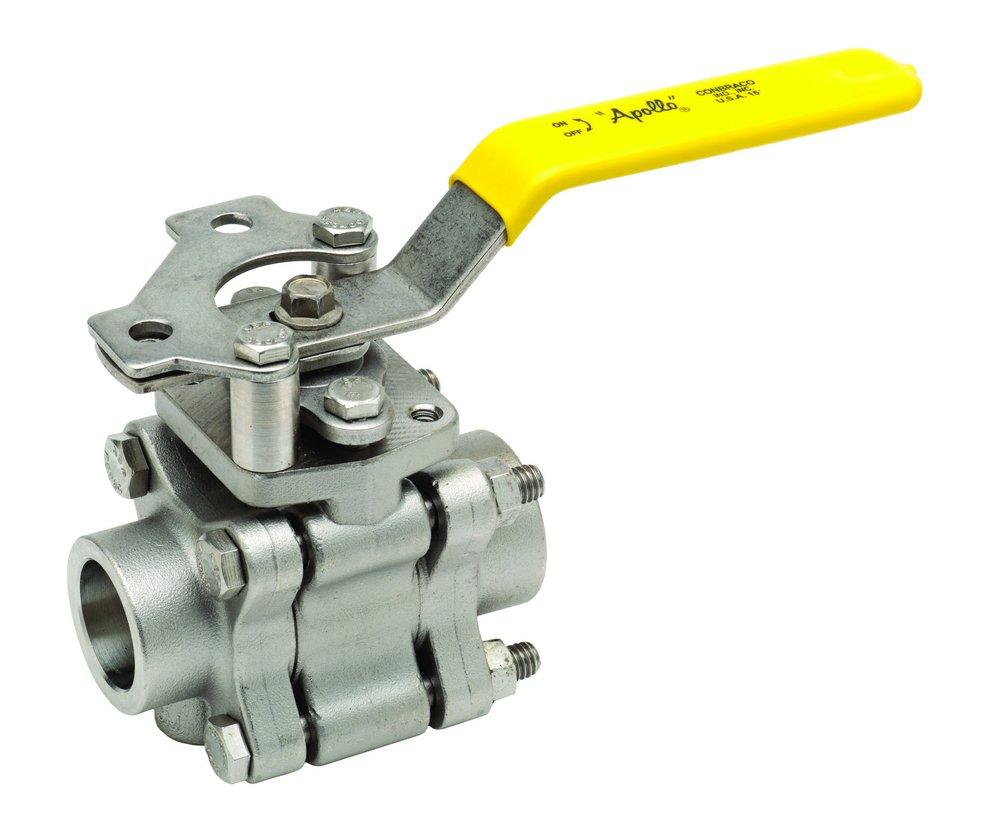

1 in. CF8M Stainless Steel Full Port Socket Weld 1500# Ball Valve

Apollo Valves

86A-200 Series 1 in. CF8M Stainless Steel Full Port Socket Weld 1500# Ball Valve

Brand image
Apollo Valves

86A-200 Series 1 in. CF8M Stainless Steel Full Port Socket Weld 1500# Ball Valve

  • Part #A86A20501
  • Item #3155926
  • Manufacturer Part #86A20501
4.8 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 1 PT: 123
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Swing-out center section
  • Pressure balanced solid ball
  • Stainless steel trim and hardware
  • Lead-free
  • Made in USA
  • Saturated steam 150 psi
  • Two-position locking
  • Lead Law Compliant


Specifications

API:
API 608
ASME:
ASME B16.11, ASME B16.34
ASTM:
ASTM A-276 Grade 316SS, ASTM A-351 CF3M, ASTM A-351 CF8M
Collection:
86A-200 Series
Color Finish Name:
Silver, Yellow
End Connection 1:
Socket Weld
End Connection 2:
Socket Weld
End Connections:
Socket Weld
FM Approved:
No
Handle Material:
Stainless Steel
IAPMO Listed -:
No
ISO:
ISO 5211
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
4-19/100 in
MSS:
MSS SP-110, MSS SP-25
Material:
Stainless Steel
Material Type:
18-8, 300, 316, CF8M
NSF Certified:
No
Origin:
Domestic
Pressure - High:
150, 1500
Pressure Class:
1500#
Recommended Valve Application:
Compressed Air, Natural Gas, Steam, Potable Water
UL Listed:
No
Valve Body Material:
Stainless Steel
Valve Body Style:
3 piece
Valve Disc Material:
Stainless Steel
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
Multi-Seal
Valve Size:
1 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
5.7 lb
