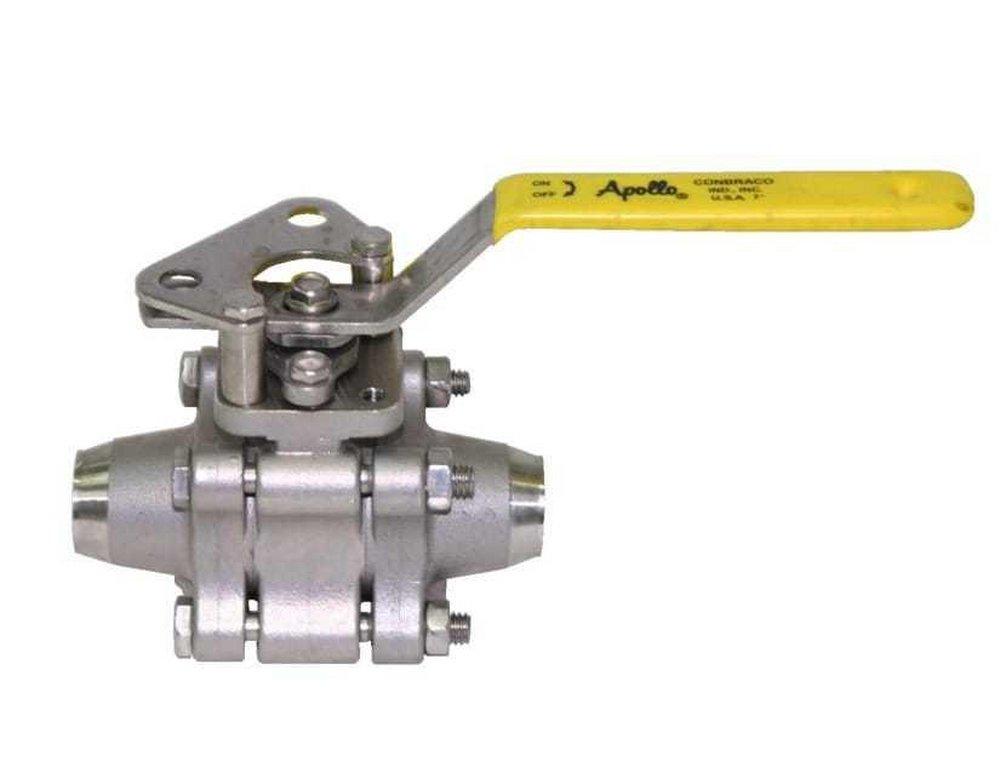

3/4 in. CF8M Stainless Steel Full Port Butt Weld 1500# Ball Valve
Apollo Valves
86A-300 Series 3/4 in. CF8M Stainless Steel Full Port Butt Weld 1500# Ball Valve
Purchase history
Apollo Valves
86A-300 Series
3/4 in. CF8M Stainless Steel Full Port Butt Weld 1500# Ball Valve
86A30401
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- The 86A-300 Stainless Steel 3 Piece Full Port Ball Valve offers an exceptional combination of durability and performance, thanks to its 3-piece construction and enclosed fasteners. This standard port valve features a swing-out center section for optimal fluid flow, and a pressure balanced solid ball for reliable operation. Additional safety is ensured by the anti-blowout one piece bottom entry stem and two-position locking system.
- 3-piece construction with enclosed fasteners
- Standard port
- Stainless steel trim & hardware
- Swing-out center section
- Pressure balanced solid ball
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Two-position locking
- Fully machined ISO5211 mounting;Cast bosses on the center-section and end caps for bleed & drain ports;Vacuum service to 29 in of Hg.;150 psi saturated steam
-
Lead Law Compliant
Specifications
- ASME:
- ASME B16.25
- ASTM:
- ASTM A-351, ASTM A-276
- Collection:
- 86A-300 Series
- End Connection 1:
- Butt Weld
- End Connection 2:
- Butt Weld
- End Connections:
- Butt Weld
- FM Approved:
- No
- IAPMO Listed:
- No
- ISO:
- ISO 5211
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Material:
- Stainless Steel
- Material Type:
- CF8M
- NSF Certified:
- No
- Pressure - Maximum:
- 150 psig
- Pressure Class:
- 1500#
- Proposition 65:
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- UL Listed:
- No
- UPC:
- 670750088865
- Valve Body Style:
- 3 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Size:
- 3/4 in
- Valve Type:
- Ball Valve
