1 in. Stainless Steel Full Port NPT 600# Ball Valve
You last purchased this on
Apollo Valves

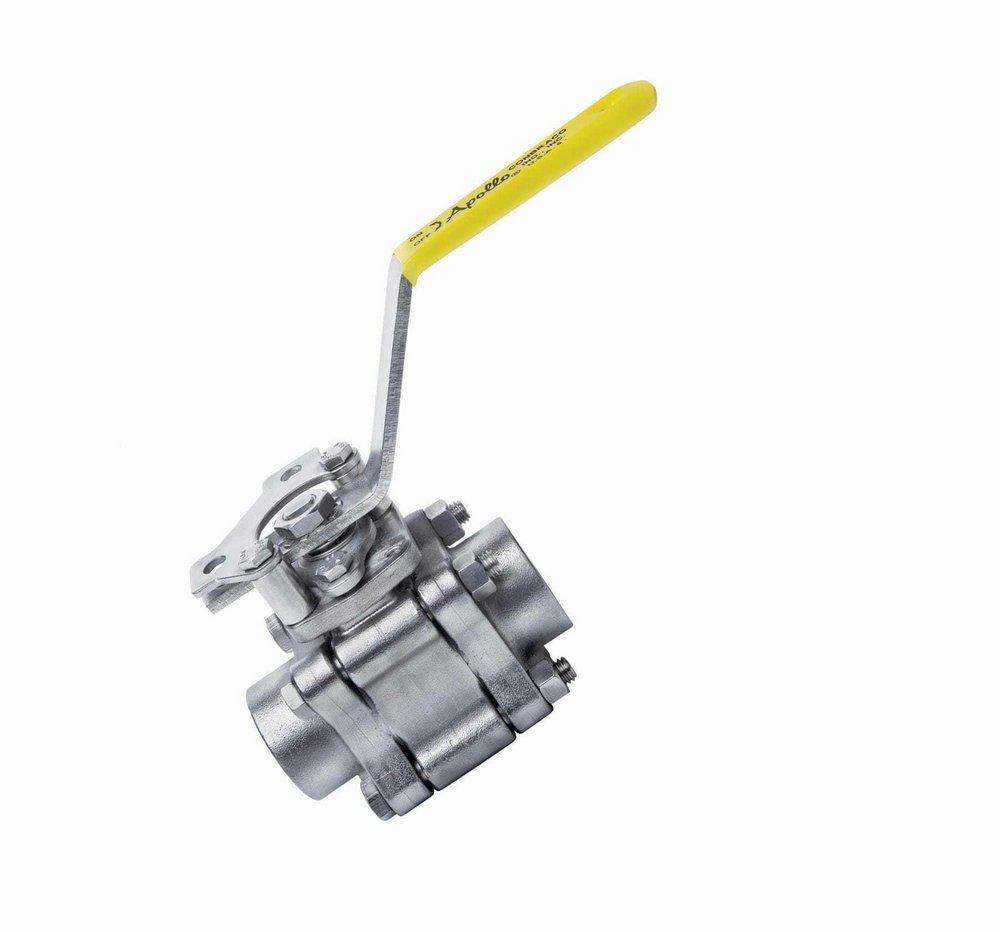

86B-100 Series 1 in. Stainless Steel Full Port NPT 600# Ball Valve
Points
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
-
Pick Up: Not available
-
Shipping: Not available
Purchase history
Apollo Valves
86B-100 Series
1 in. Stainless Steel Full Port NPT 600# Ball Valve
86B10501
Order #
Order Date
Job Name
My PO#
Product Details
- Full port
- Stainless steel trim & hardware
- 3-piece construction with enclosed fasteners
- Two-position locking
- Compression controlled RPTFE gaskets
- Anti-blowout one piece bottom entry stem
- Pressure balanced solid ball
- Swing-out center section
- Cast bosses on the center-section and end caps for bleed & drain ports
- Fully machined ISO 5211 mounting
-
Lead Law Compliant
Specifications
- API:
- API 608
- ASME:
- ASME B1.20.1, ASME B16.3, ASME B16.34, ASME Class 600
- ASTM:
- ASTM A-193 Grade B8, ASTM A-193 Grade B8M3, ASTM A-194 Grade 8, ASTM A-276 Grade 316SS, ASTM A-351 CF3M, ASTM A-351 CF8M
- Application:
- Industry
- Clean Bagged:
- No
- Collection:
- 86B-100 Series
- Color Finish Name:
- Silver, Yellow
- End Connection 1:
- FNPT
- End Connection 2:
- FNPT
- End Connections:
- FNPT
- FM Approved:
- No
- Handle Material:
- 300 Stainless Steel
- IAPMO Listed -:
- No
- ISO:
- ISO 5211
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 4-19/100 in
- Material:
- Stainless Steel
- Material Type:
- 18-8, 300, CF8M
- NSF Certified:
- No
- Origin:
- Domestic
- Pressure - High:
- 250
- Pressure Class:
- 600#
- Recommended Valve Application:
- Compressed Air, Natural Gas, Steam, Water
- UL Listed:
- No
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- 3 piece
- Valve Operator:
- Lever Handle
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- Multi-Seal
- Valve Size:
- 1 in
- Valve Stem:
- Blowout-proof
- Valve Type:
- Ball Valve
- Weight:
- 5.7 lb
