1-1/2 in. CF8M Stainless Steel Reduced Port Flanged 150# Ball Valve

Apollo Valves

87A-100 Series 1-1/2 in. CF8M Stainless Steel Reduced Port Flanged 150# Ball Valve

  • Fast #
  • Part #A87A10701A
  • Item #4542459
  • Manufacturer Part #87A10701A
4 out of 5 Customer Rating
Brand image

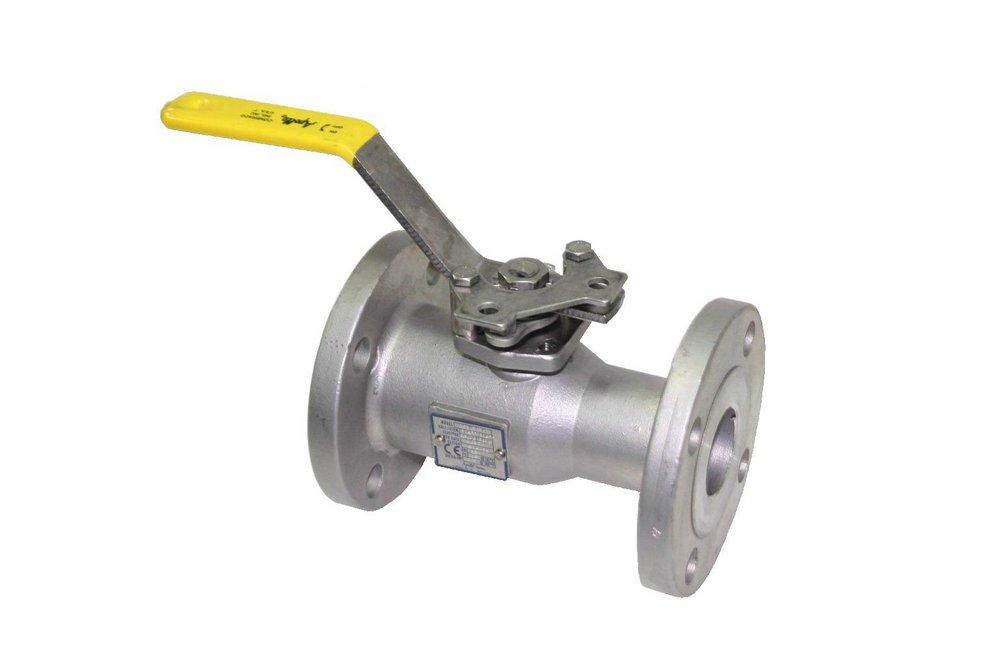

Apollo Valves Silver CF8M Stainless Steel Reduced Port Flanged 150# Ball Valve
Apollo Valves Silver CF8M Stainless Steel Reduced Port Flanged 150# Ball Valve
Apollo Valves

87A-100 Series 1-1/2 in. CF8M Stainless Steel Reduced Port Flanged 150# Ball Valve

  • Fast #
  • Part #A87A10701A
  • Item #4542459
  • Manufacturer Part #87A10701A
4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Application industrial
  • Lead-free
  • Made in USA
  • Two position locking device (valves 6” full port, 8” standard port and smaller)
  • Chevron style adjustable stem seals
  • ISO 5211 mounting pad bolt pattern
  • Slot vented ball for thermal expansion
  • Rated up to 150 psi saturated steam: ASME class 150, 300, & 600 valves
  • Rated up to 250 psi saturated steam: ASME class 300 valves require the -65 option
  • ASME Class 600 valves require the -24-80 options or -38 option
  • Requires Certification

  • Lead Law Compliant

Specifications

ANSI:
ANSI 61-G
ASME:
ASME Class 150
ASTM:
ASTM A-193-B8 Class 1, ASTM A-276, ASTM A-351
Collection:
87A-100 Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Handle Material:
Stainless Steel
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
6-1/2 in
Material:
Stainless Steel, Plastic
Material Type:
CF8M, RPTFE
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
150
Pressure Class:
150#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Compressed Air, Natural Gas
UL Listed:
Yes
UPC:
670750400285
Valve Body Material:
Stainless Steel
Valve Body Style:
2 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Standard Port
Valve Seat Material:
RPTFE
Valve Size:
1-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
11 lb
