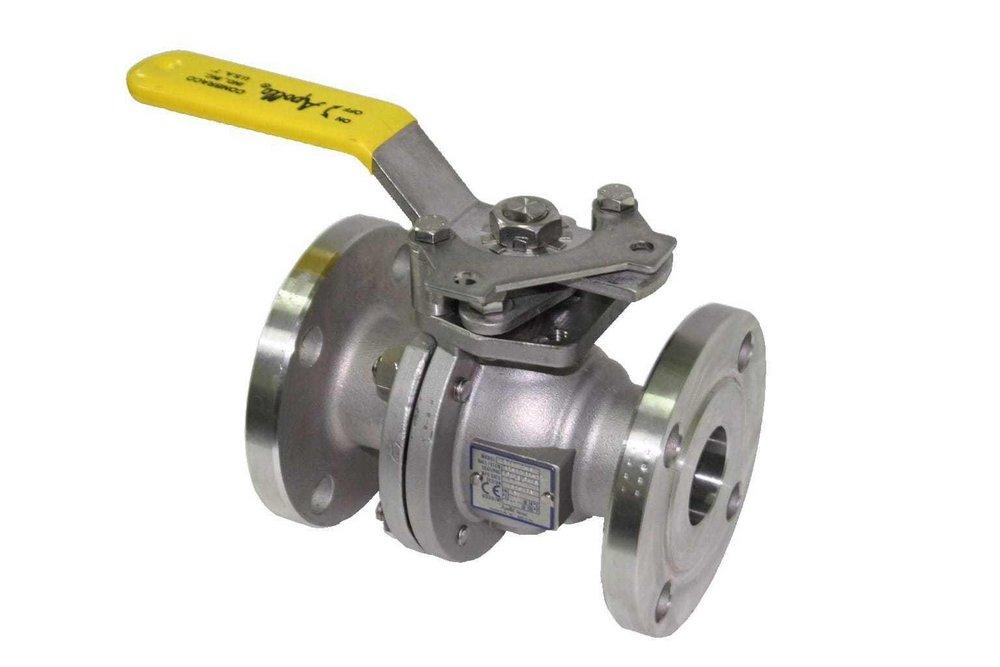

1 in. Stainless Steel Full Port Flanged 150# Ball Valve

Apollo Valves

87A-200 Series 1 in. Stainless Steel Full Port Flanged 150# Ball Valve

  • Fast #
  • Part #A87A20565
  • Item #7578145
  • Manufacturer Part #87A20565
4.4 out of 5 Customer Rating
Brand image
Apollo Valves Stainless Steel Stainless Steel Full Port Flanged 150# Ball Valve
Apollo Valves Stainless Steel Stainless Steel Full Port Flanged 150# Ball Valve
Apollo Valves

87A-200 Series 1 in. Stainless Steel Full Port Flanged 150# Ball Valve

  • Fast #
  • Part #A87A20565
  • Item #7578145
  • Manufacturer Part #87A20565
4.4 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1 Case: 4
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Two Position Locking Device
  • Chevron Style Adjustable Stem Seals
  • ISO 5211 Mounting Pad Bolt Pattern
  • Slot Vented Ball for Thermal Expansion
  • Requires Certification

  • Not Compliant, Approved for Non-Potable Water Applications

Specifications

ANSI:
ANSI 61, ANSI 372
API:
API 608
ASME:
ASME B16.5, ASME B16.10, ASME B16.34, ASME B16.33, ASME B16.38, ASME B31.1, ASME B31.3, ASME B31.8
ASSE Standards:
No
ASTM:
ASTM A351 CF8M, ASTM A276 Type 316, ASTM A193 B8 Class 2
AWWA:
No
CSA Certified:
No
Clean Bagged:
No
Collection:
87A-200 Series
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Fire Suppression System Rated:
Yes
Handle Material:
Stainless Steel/Vinyl
Height:
2-3/20 in
IAPMO Listed:
No
ISO:
No
Lead Law Compliance Level:
Not Compliant, Approved for Non-Potable Water Applications
Length:
5 in
MA Approved:
No
MSS:
MSS SP-25, MSS SP-61, MSS SP-72
Material:
Stainless Steel
Material Type:
CF8M
Maximum Temperature:
600
Minimum Temperature:
-20
NSF:
NSF 61, NSF 372
NSF Certified:
Yes
Origin:
Domestic
Pressure - Maximum:
275 psi
Pressure Class:
150#
Proposition 65:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Recommended Valve Application:
Potable Water, Steam
Temperature Range:
-20 to 600 Deg F
UL Listed:
UL 125
UPC:
670750917462
Valve Body Material:
Stainless Steel
Valve Body Style:
Flanged
Valve Disc Material:
316 Stainless Steel
Valve Operator:
Lever Handle
Valve Port Opening:
Full Port
Valve Seat Material:
MPTFE
Valve Size:
1 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
7 lb
cUPC Certified:
No
