3/4 in. Brass Standard Port F1807 Ball Valve

Apollo Valves

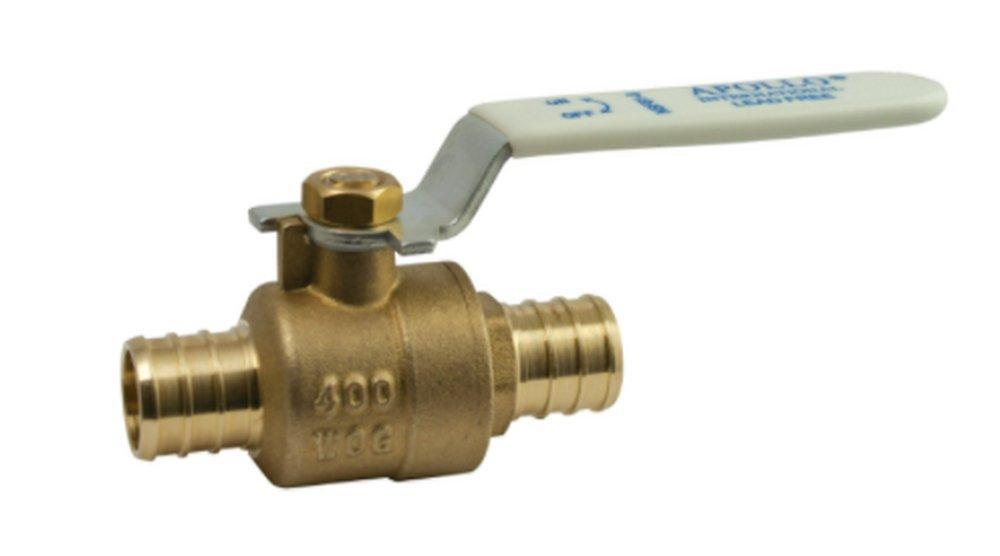

94XLF Series 3/4 in. Brass Standard Port F1807 Ball Valve

  • Fast #
  • Part #A94XLF10401
  • Item #7205970
  • Manufacturer Part #94XLF10401
3.7 out of 5 Customer Rating
Brand image
Apollo Valves Brass DZR Brass Standard Port F1807 400# Ball Valve
Apollo Valves Brass DZR Brass Standard Port F1807 400# Ball Valve
Apollo Valves

94XLF Series 3/4 in. Brass Standard Port F1807 Ball Valve

  • Fast #
  • Part #A94XLF10401
  • Item #7205970
  • Manufacturer Part #94XLF10401
3.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 12 Case: 96
Looking for compatible parts?
Out of Stock
How to get it:
  • Pick Up   Not Available
    0  in  Leesburg, VA
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Description
  • Lead Free* DZR Materials and Certification
  • ASTM F1807 PEX Design
  • White Handle Grip Identifies Lead Free Construction
  • Standard Port Design
  • Double O-ring Stem Seal
  • Blow-Out Proof Stem Design
  • Silicone Free Assembly
Product Information
  • Requires Certification

  • Lead Law Compliant

Documents

SPECIFICATION
Dimensions & Measurements
End Connection 1
PEX
End Connection 2
PEX
End Connections
PEX x PEX
Height
1-57/100 in
Length
2-31/100 in
Pressure Class
160#
Pressure - Maximum
160 psi
Valve Size
3/4 in
Weight
0.41 lb
Characteristics & Features
Clean Bagged
No
Collection
94XLF Series
Handle Material
Steel
Material
Brass
Material Type
DZR
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Brass
Valve Body Style
Flanged
Valve Disc Material
Brass
Valve Operator
Lever Handle
Valve Port Opening
Standard Port
Valve Seat Material
MPTFE
Valve Stem
Blowout-proof
Valve Type
Ball Valve
Electrical & Operational Information
Maximum Temperature
200
Minimum Temperature
-20
Temperature Range
-20 to 200 Deg F
Warranty & Product Information
ANSI
ANSI 61, ANSI 372, ANSI 14
ASME
No
ASSE Standards
No
ASTM
ASTM F-1807
AWWA
No
BAA Compliant
No
CSA Certified
No
cUPC Certified
Yes
Fire Suppression System Rated
No
FM Approved
No
IAPMO Listed
Yes
ISO
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
MA Approved
No
MSS
No
NSF
NSF 14, NSF 372, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
No
UPC
670750061509
