1 in. Bronze Full Port Solder Gate Valve

You last purchased this on

Apollo Valves

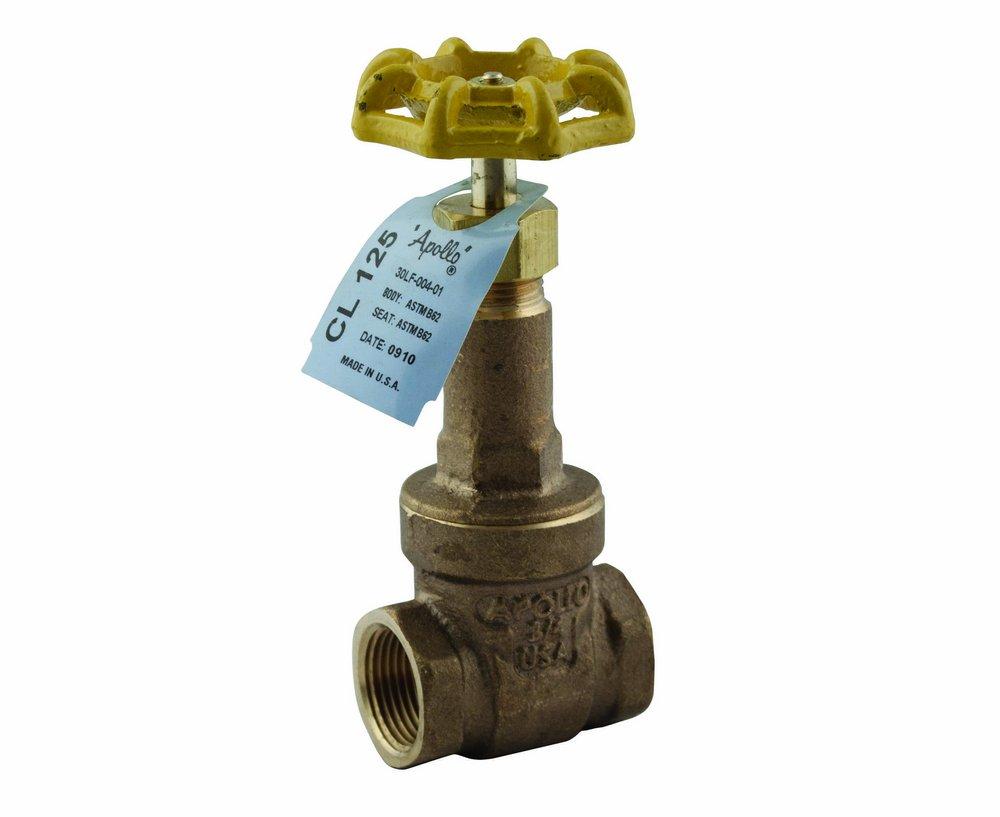

Model 101S-LF 1 in. Bronze Full Port Solder Gate Valve

This product requires certification to purchase.
Brand image
You last purchased this on

Apollo Valves

Model 101S-LF 1 in. Bronze Full Port Solder Gate Valve

  • Fast #
  • Part #A30LF08501
  • Item #4700846
  • Manufacturer Part #30LF08501
5 out of 5 Customer Rating
This product requires certification to purchase.

X Points
Log in or Create an Account to see product availability.
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

  • Threaded bonnet
  • Solid bronze disc
  • 200 CWP
  • Max temp: 406° F
  • Lead free option (NSF 61/NSF 372)
  • Requires Certification
  • Lead Law Compliant


Specifications

ANSI:
ANSI 372, ANSI 61-8 2010 Annex F, ANSI 61-8 2010 Annex G
ASME:
ASME B16.18
ASTM:
ASTM B-21, ASTM B-584 C89836
Application:
Cold Working Pressure
Collection:
Model 101S-LF
End Connection 1:
Solder
End Connection 2:
Solder
End Connections:
Solder
FM Approved:
No
Handle Material:
Malleable Iron
Height:
6-71/100 in
Lead Law Compliance Level:
Lead Law Compliant and Certified
Lead Law Compliant:
Yes
Length:
2-24/25 in
MSS:
MSS SP-139, MSS SP-80 Type 2
Material:
Bronze
Material Type:
B584-C89836
Maximum Temperature:
100
NSF:
NSF 372, NSF 61-8 2010 Annex F, NSF 61-8 2010 Annex G
NSF Certified:
Yes
Origin:
Domestic
Pressure - High:
200
Pressure Class:
200#
Recommended Valve Application:
Commercial, Potable Water
Temperature Range:
-20 to 406 Deg F
UL Listed:
No
Valve Body Material:
Bronze
Valve Bonnet Type:
Threaded
Valve Disc Material:
Bronze
Valve Operator:
Hand Wheel
Valve Port Opening:
Full Port
Valve Size:
1 in
Valve Stem:
Rising
Valve Type:
Gate Valve
Weight:
2.2 lb
