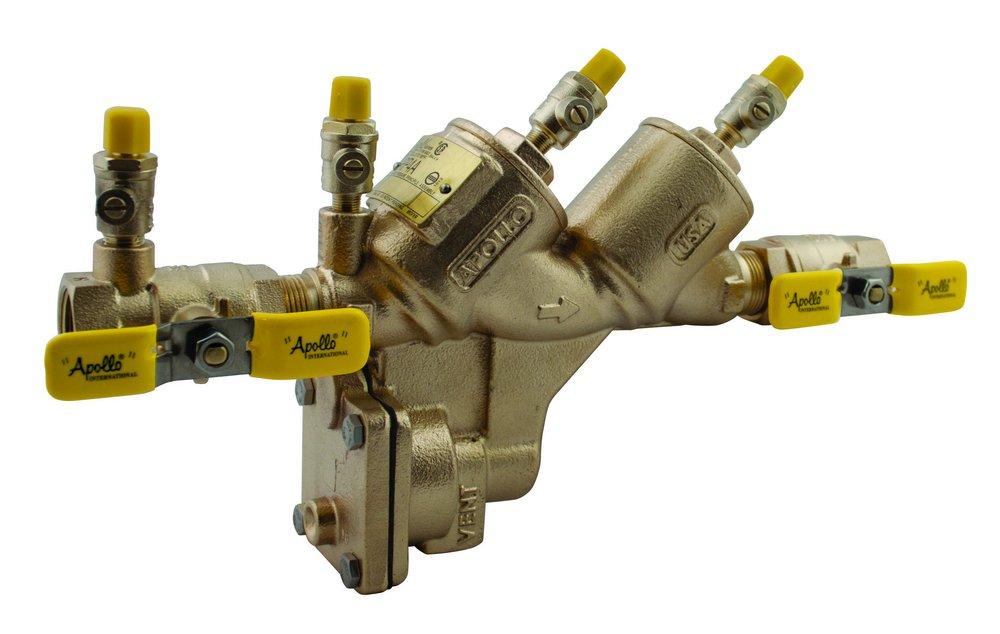

1-1/2 in Bronze SAE Reduced Pressure Zone Assembly
Apollo Valves
RPLF4A Series 1-1/2 in Bronze SAE Reduced Pressure Zone Assembly
Purchase history
Apollo Valves
RPLF4A Series
1-1/2 in Bronze SAE Reduced Pressure Zone Assembly
4ALF217A2F
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Maximum protection against back-pressure/back-siphonage
- Modular check valve cartridge with easily replaced parts
- Reversible/removable chloramine resistant silicone seat discs
- Low head pressure loss
- Top mounted test cocks
- Threaded test cock protectors
- Internal sensing passage
- Modular captured spring relief valve
- Lead-free
- Made in USA
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
SAE
End Connection 2
SAE
End Connections
SAE
Height
9-7/8 in
Length
18 in
Valve Size
1-1/2 in
Weight
17.4 lb
Characteristics & Features
Collection
RPLF4A Series
Installation Type
Horizontal
Material
Bronze
Material Type
C89836
Proposition 65
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Valve Body Material
Bronze
Valve Body Style
Ball
Valve Disc Material
Chloramine-resistant Silicone
Valve Operator
Lever Handle
Valve Port Opening
Full Port
Valve Seat Material
Chloramine-Resistant Silicone
Valve Type
Reduced Pressure Zone Assembly
Electrical & Operational Information
Pressure - High
175
Temperature Range
33 to 180 Deg F
Warranty & Product Information
ANSI
ANSI 372, ANSI 61
ASSE Standards
ASSE 1013 2011
AWWA
AWWA C-511
CSA Certified
CSA B64.4
FM Approved
No
IAPMO Listed
No
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 372, NSF 61
NSF Certified
Yes
Recommended Valve Application
Potable Water
UL Listed
No
UPC
670750212215
