1-1/2 in. Ductile Iron Reduced Port Flanged 150# Ball Valve

Atomac

AKH3 1-1/2 in. Ductile Iron Reduced Port Flanged 150# Ball Valve

  • Fast #
  • Part #AAKH3PFAJ
  • Item #207829
  • Manufacturer Part #1-1/2-AKH3-PFA
4.7 out of 5 Customer Rating
Brand image

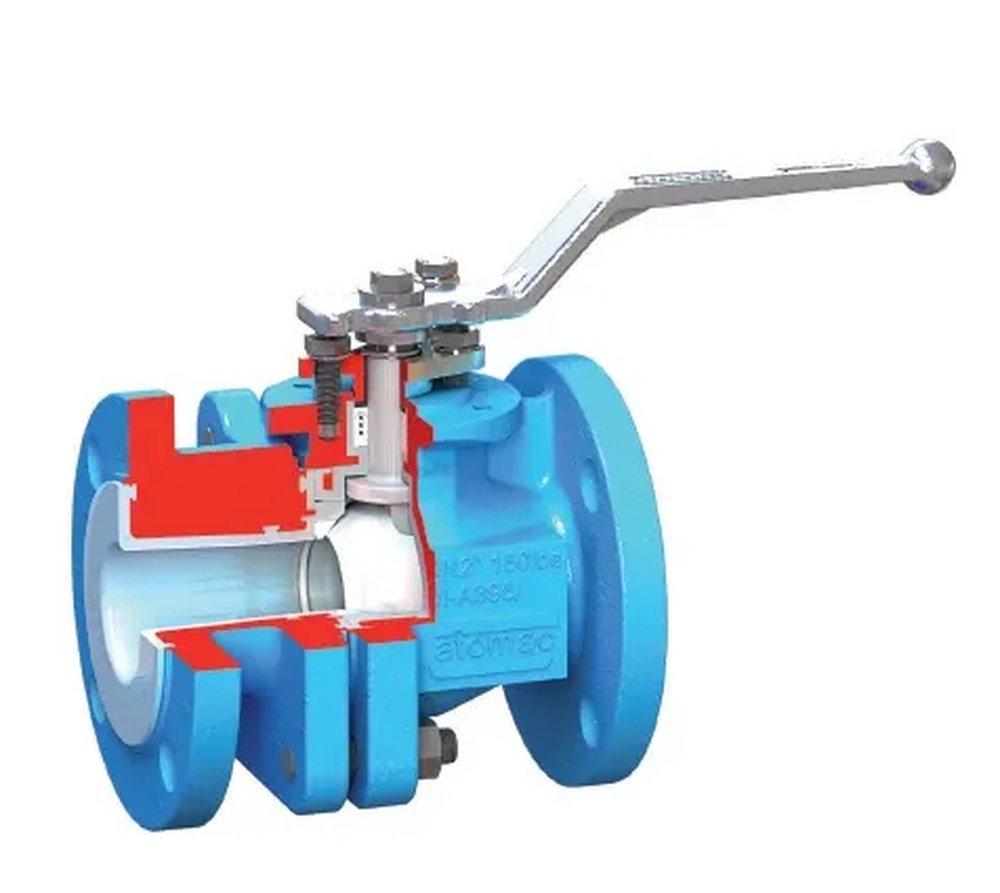

Atomac Ductile Iron Reduced Port Flanged 150# Ball Valve
Atomac Ductile Iron Reduced Port Flanged 150# Ball Valve
Atomac

AKH3 1-1/2 in. Ductile Iron Reduced Port Flanged 150# Ball Valve

  • Fast #
  • Part #AAKH3PFAJ
  • Item #207829
  • Manufacturer Part #1-1/2-AKH3-PFA
4.7 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Bay Shore, NY
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Resistant to chemical attack
  • Positive shutoff
  • ANSI CL 150
  • Use of non-genuine Delta repair part voids warranty
  • Economical performance and improved process efficiency from bubble-tight shut-off across the pressure range of 1 to 19 bar (14.5 to 275 psi)
  • Long-term external leak protection provided by PTFE chevron packing rings in a deep stuffing box
  • Thick, molded liner is securely attached to all coated components; liner integrity is valid by high voltage inspection process
  • Low installation costs, as ASME dimensions permit the replacement of previously installed valves with no need to alter existing piping
  • Safety assured by blowout-proof stem assembly and anti-static device
  • Also available as a V-port ball valve for modulating control services
  • Requires Certification

Documents

SPECIFICATION

Specifications

ANSI:
ANSI B10.5, ANSI B16.10
API:
API 598
ASME:
ASME B16.10, ASME B16.5
ASTM:
ASTM A-395, ASTM A-536
Clean Bagged:
No
Collection:
AKH3
End Connection 1:
Flanged
End Connection 2:
Flanged
End Connections:
Flanged
FM Approved:
No
Fire Suppression System Rated:
No
IAPMO Listed:
No
ISO:
ISO 5211
Length:
6-1/2 in
MA Approved:
No
MSS:
MSS SP-25
Material:
Ductile Iron
NSF Certified:
No
Pressure - High:
275
Pressure Class:
150#
UL Listed:
No
Valve Body Material:
Ductile Iron
Valve Body Style:
1 piece
Valve Operator:
Lever Handle
Valve Port Opening:
Standard Port
Valve Seat Material:
PTFE
Valve Size:
1-1/2 in
Valve Stem:
Blowout-proof
Valve Type:
Ball Valve
Weight:
13.7 lb
cUPC Certified:
No
