3/8 in. Stainless Steel Full Port NPT 1000# Ball Valve
Bonomi USA

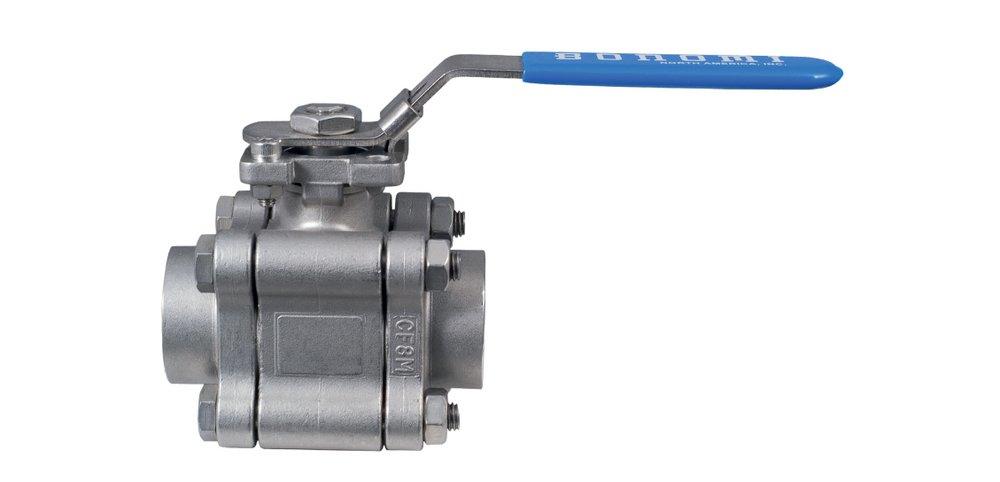

3/8 in. Stainless Steel Full Port NPT 1000# Ball Valve
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Bonomi USA
3/8 in. Stainless Steel Full Port NPT 1000# Ball Valve
730LL-3/8
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Direct mount high performance 3-piece full port ball valves with locking lever
- Class 900 sizes 1/4" to 2", class 600 sizes 2 1/2" - 4"
- Carbon steel-2220 psi, stainless steel-2160 psi (1/4" - 2"), carbon steel-1480 psi, stainless steel-1440 psi (2 1/2" - 4")
- Working steam pressure to 250 psi
- Temperature range: -50°F to 550°F
- ISO 5211 mounting pad/square stem
- TFM-4215 ball seats
- Standard latch locking handle
- Conforms to ANSI 16.34, ANSI B1.20.1 thread depths, NACE MR0175
- Fire safe to API 607
Documents
Specifications
- ANSI:
- ANSI B1.20.1, ANSI B16.34
- API:
- API 607
- End Connection 1:
- NPT
- End Connection 2:
- NPT
- End Connections:
- NPT
- Handle Material:
- Stainless Steel
- ISO:
- ISO 5211
- Length:
- 2-61/100 in
- Material:
- Stainless Steel
- Pressure - High:
- 250
- Pressure Class:
- 1000#
- Temperature Range:
- -50 to 550 Deg F
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- 3 piece
- Valve Port Opening:
- Full Port
- Valve Seat Material:
- TFM
- Valve Size:
- 3/8 in
- Valve Type:
- Ball Valve
- Weight:
- 1.5 lb
