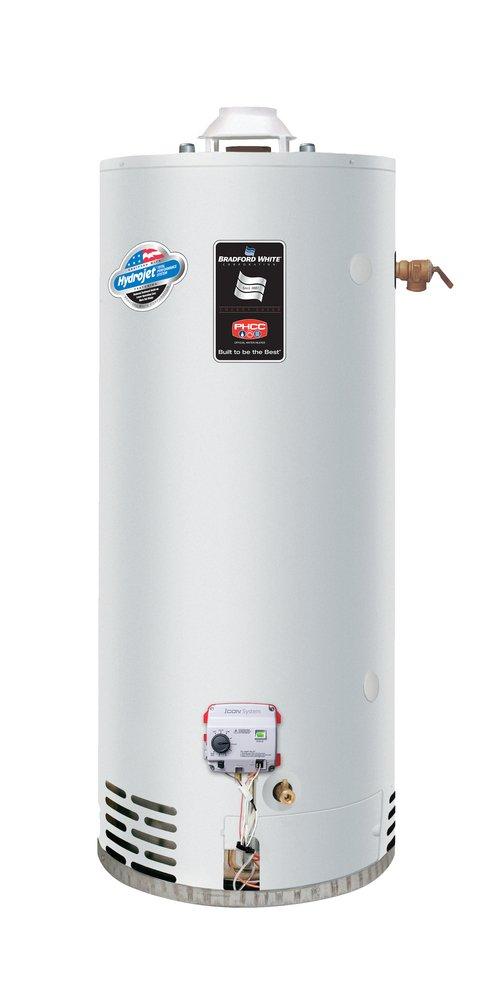

75 gal. Tall 76 MBH Low NOx Atmospheric Vent Propane Water Heater
Bradford White
FVIR Defender Safety System® 75 gal. Tall 76 MBH Low NOx Atmospheric Vent Propane Water Heater
Purchase history
Bradford White
FVIR Defender Safety System®
75 gal. Tall 76 MBH Low NOx Atmospheric Vent Propane Water Heater
RG275H6X-500-506
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Unit is equipped with a White Rodgers Mechanical Control gas valve
- Unit comes with an A420 aluminum anode rod
- Hydro Jet® Total Performance System Is A Cold Water Inlet Sediment Reducing Device Helps Prevent Sediment Build Up In Tank
- Non-Cfc Foam Insulation
- Pedestal Base
- Protective Magnesium Anode Rod
- 4 In “Snap Lock” Draft Diverter
- T&P Relief Valve
- Low Restrictive Brass Drain Valve - Durable Tamper Proof Design
- Water Connections - Factory-Installed True Dielectric Fittings Extend Water Heater Life And Simplify Water Line Connections
Dimensions & Measurements
Capacity
75 gal
Depth
29-1/4 in
Diameter
26 in
Height
62-5/8 in
Pressure - Maximum
300 psi
Recovery 90°F Rise GPH
82
Water Connections
Top
Water Connection Size
1 in
Water Heater Capacity Range
51 - 100 gal
Weight
240 lb
Characteristics & Features
AFUE
80 %
Antimicrobial
Yes
Collection
FVIR Defender Safety System®
Drain Valve Material
Brass
Lining of Tank
Vitraglas®
Proposition 65
WARNING: CANCER AND REPRODUCTIVE HARM. WWW.P65WARNINGS.CA.GOV
Vent Type
Atmospheric Vent
Water Heater Type
Tall
Electrical & Operational Information
BTU
76000
Emission
Low NOx
First Hour Rating
135
Fuel Type
Propane
Maximum Temperature
160
MBH
76
Power Source
Gas
Temperature Range
Up to 160 Deg F
Warranty & Product Information
ANSI
ANSI Z21.10.1, ANSI Z21.10.3
Application
Residential
CEC Compliant
For Sale in CA
CSA Certified
CSA 4.3 2017
Energy Star Compliant
No
ETL Listed
No
NSF
NSF 372
UL Listed
No
Uniform Energy Factor (UEF)
0.59
UPC
671632849925
