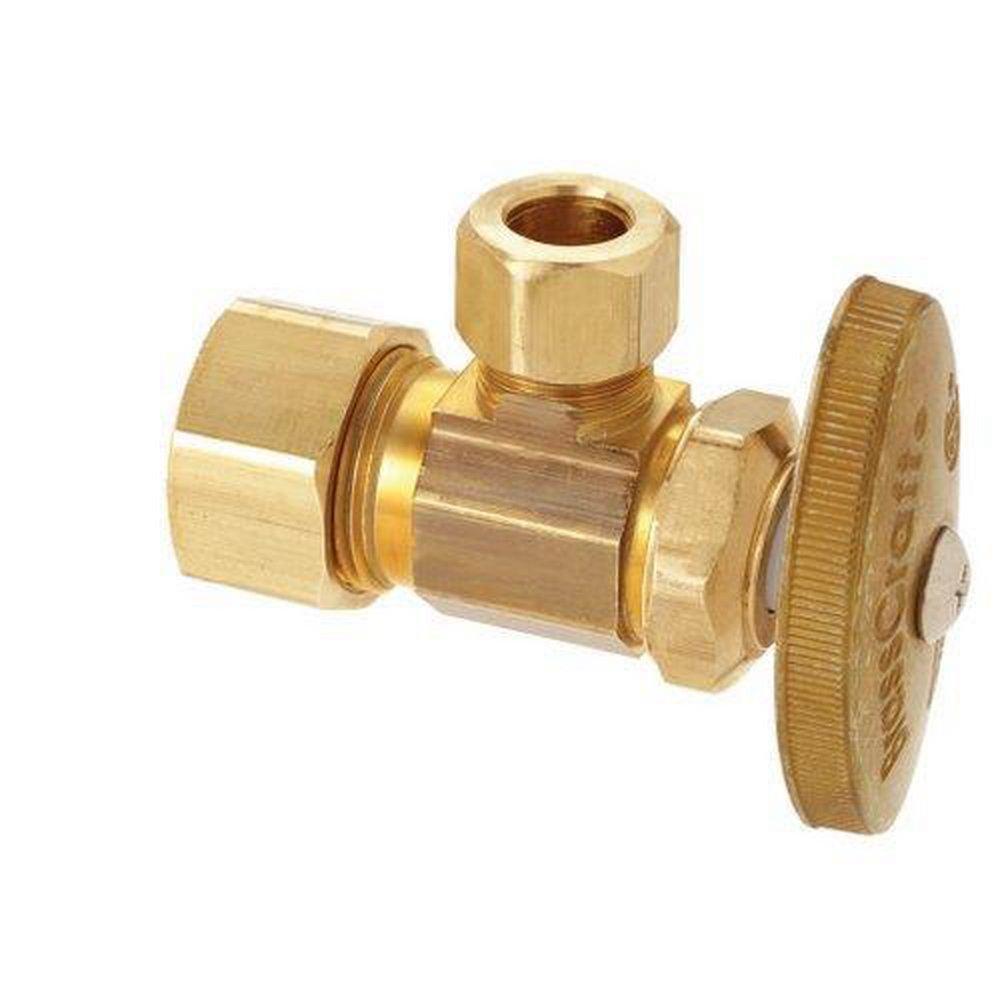

1/2 x 3/8 in. Solvent Weld x OD Compression Angle Supply Stop Valve in Rough Brass
BrassCraft
1/2 x 3/8 in. Solvent Weld x OD Compression Angle Supply Stop Valve in Rough Brass
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 60 Pallet: 12468
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
BrassCraft
1/2 x 3/8 in. Solvent Weld x OD Compression Angle Supply Stop Valve in Rough Brass
PR19X R
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Machined, one-piece body construction for strength, durability and long-lasting performance
- 1/2 in nom CPVC x 3/8 in OD comp
- Compatible with CPVC tubing
- For use in potable water distribution systems not intended for recirculating water systems that produce continuous use temperatures above 115°F for those applications, use our KT™ series ball stops
- Multi-turn operation means water flow control with only a few turns of the handle
- Easy-to-remove handle protects against accidental operation during rough-ins
-
Lead Law Compliant
Specifications
- ANSI:
- ANSI 61, ANSI 372
- ASME:
- ASME A112.18.1
- CSA Certified:
- CSA B125.1
- Color Finish Category:
- Brass Tones
- Color Finish Name:
- Rough Brass
- End Connection 1:
- Socket Weld
- End Connection 2:
- Compression
- End Connections:
- Socket Weld x Compression
- Handle Material:
- ABS
- Height:
- 1-76/100 in
- IAPMO Listed:
- Yes
- Lead Law Compliance Level:
- Lead Law Compliant and Certified
- Lead Law Compliant:
- Yes
- Length:
- 2-3/4 in
- Material:
- Brass, Plastic
- Material Type:
- ABS
- NSF:
- NSF 61, NSF 372
- NSF Certified:
- Yes
- Number of Handles:
- Single Handle
- Origin:
- Domestic
- Pressure - Maximum:
- 125 psi
- Recommended Valve Application:
- Potable Water
- Temperature Range:
- 40 to 160 Deg F
- UL Listed:
- No
- UPC:
- 026613142555
- Valve Body Material:
- Brass
- Valve Body Style:
- 1 piece
- Valve Operator:
- Oval Knurled Handle
- Valve Size:
- 1/2 in x 3/8 in
- Valve Type:
- Angle Supply Stop Valve
- Weight:
- 0.24191 lb
- Width:
- 1-7/50 in
