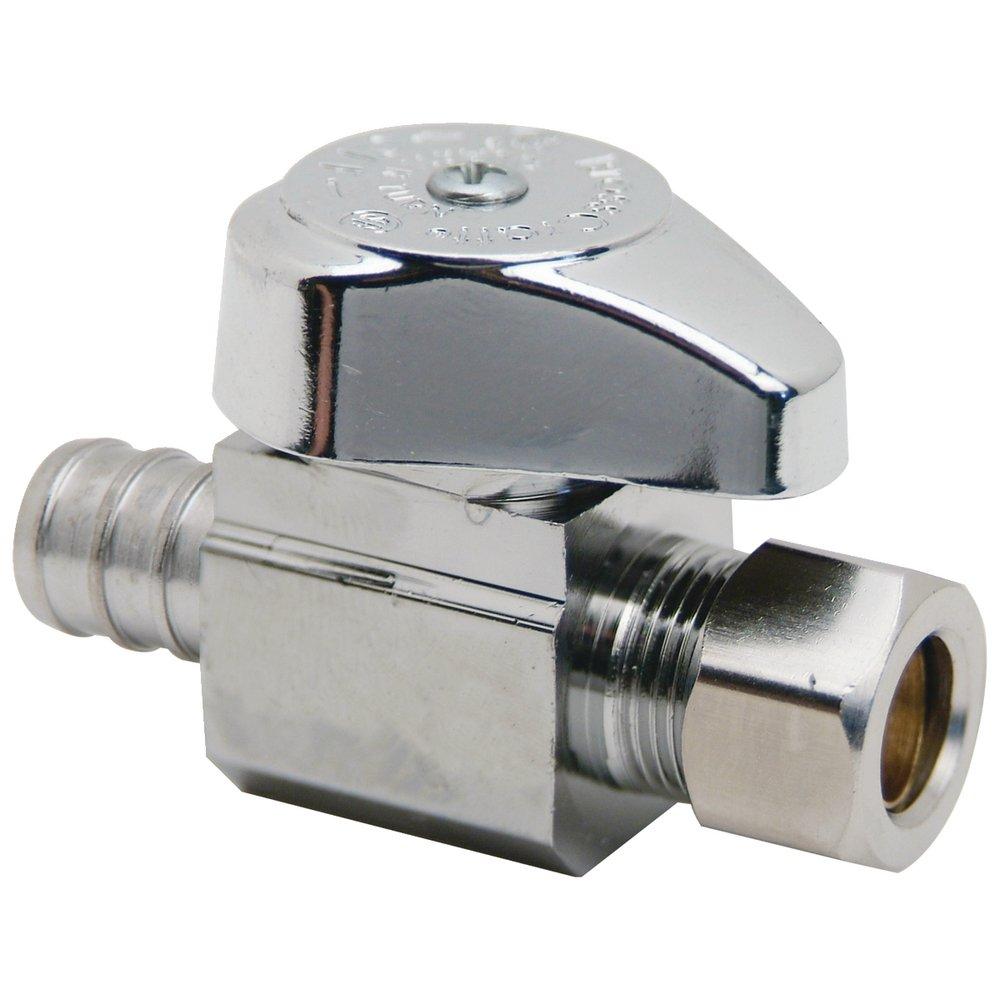

1/2 x 3/8 in. Barbed x OD Compression Straight Supply Stop Valve in Chrome Plated
BrassCraft
G2™ Series 1/2 x 3/8 in. Barbed x OD Compression Straight Supply Stop Valve in Chrome Plated
Package Quantity Info:
Each: 1 Inner Pack: 5 Case: 60Quantity:
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping AvailableAvailable for immediate shipment
Purchase history
BrassCraft
G2™ Series
1/2 x 3/8 in. Barbed x OD Compression Straight Supply Stop Valve in Chrome Plated
G2BRPX14X C
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Description
- Machined one-piece brass body provides strength, durability and long-lasting performance
- 1/2 in nom crimp barb inlet x 3/8 in OD comp outlet
- Compatible with PEX tubing
- For use in potable water distribution systems not intended for recirculating water systems that produce continuous use temperatures above 115°F for those applications, use our KT™ series ball stops
- One-piece shut-off mechanism provides smooth on-off operation without freeze-ups even after long periods of non-use
- Easy-to-remove handle protects against accidental operation during rough-ins
- 100 percent leak tested to ensure reliable, leak-free performance
Product Information
-
Lead Law Compliant
Dimensions & Measurements
End Connection 1
Barbed
End Connection 2
Compression
End Connections
Barbed x Compression
Height
1-12/25 in
Length
2-2/25 in
Pressure - Maximum
125 psi
Valve Size
1/2 in x 3/8 in
Weight
0.20031 lb
Width
13/16 in
Characteristics & Features
Collection
G2™ Series
Color Finish Category
Chromes
Color Finish Name
Chrome Plated
Handle Material
ABS
Handle Type
Quarter Turn
Material
Brass, Plastic
Material Type
Polymer
Number of Handles
Single Handle
Valve Body Material
Brass
Valve Body Style
1 piece
Valve Operator
Quarter Turn Handle
Valve Type
Straight Supply Stop Valve
Electrical & Operational Information
Maximum Temperature
160
Minimum Temperature
40
Pressure - High
125
Temperature Range
40 to 160 Deg F
Warranty & Product Information
ANSI
ANSI 372
ASME
ASME A112.18.1
ASTM
ASTM F-1807
CSA Certified
CSA B125.1
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 61, NSF 372
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Potable Water
UL Listed
No
UPC
026613149578
