1/2 in x 3/8 in Ball Handle Angle Supply Stop Valve in Polished Chrome

BrassCraft

KTPR19 Series 1/2 in x 3/8 in Ball Handle Angle Supply Stop Valve in Polished Chrome

  • Fast #
  • Part #BKTPR19XC
  • Item #3869306
  • Manufacturer Part #KTPR19X C
5 out of 5 Customer Rating
Brand image

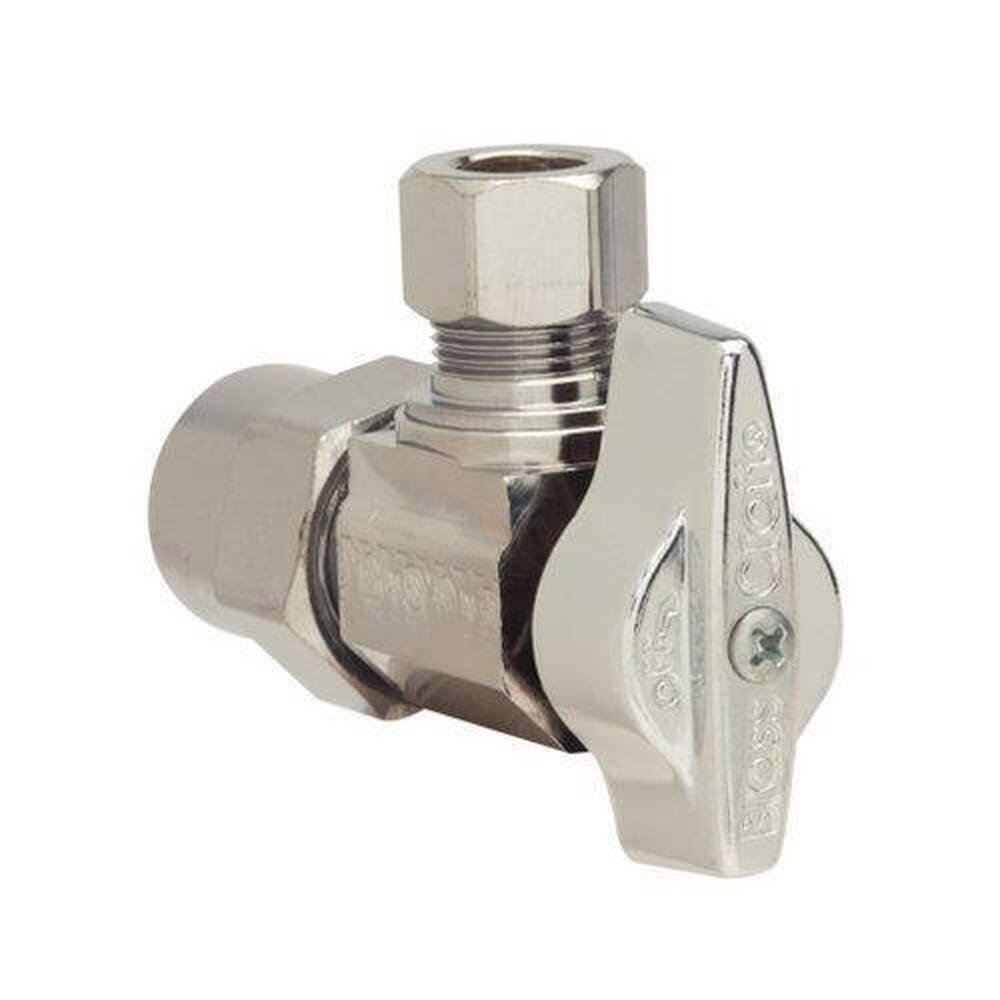

BrassCraft Polished Chrome 1/2 in x 3/8 in Ball Handle Angle Supply Stop Valve
BrassCraft Polished Chrome 1/2 in x 3/8 in Ball Handle Angle Supply Stop Valve
BrassCraft

KTPR19 Series 1/2 in x 3/8 in Ball Handle Angle Supply Stop Valve in Polished Chrome

  • Fast #
  • Part #BKTPR19XC
  • Item #3869306
  • Manufacturer Part #KTPR19X C
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 5 Case: 60
Quantity:
Looking for compatible parts?
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Available
    Available for immediate shipment

Product Details

Product Description
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • 1/2 in. Nom CPVC Inlet x 3/8 in. OD Comp Outlet 1/4-Turn Angle Ball Stop
  • Compatible with CPVC tubing
  • For use in potable water distribution systems and recirculating water systems that produce continuous use temperatures above 115° F
  • Precision-machined brass ball to provide smoother operation without freeze ups even after long periods of non-use
  • Blow-out proof, plated stem is assembled from the inside with double O-rings to help ensure safe, reliable performance
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • Positive 1/4 turn shut-off
  • Chrome finish
  • 100% leak tested to ensure reliable, leak-free performance
Product Information
  • Requires Certification

  • Lead Law Compliant

Dimensions & Measurements
End Connection 1
Solvent Weld
End Connection 2
Compression
End Connections
Solvent Weld x Compression
Length
2-9/25 in
Pressure - Maximum
125 psi
Valve Size
1/2 in
Weight
0.28107 lb
Width
2-1/4 in
Characteristics & Features
Collection
KTPR19 Series
Color Finish Category
Chromes
Color Finish Name
Polished Chrome
Handle Type
Ball
Material
Brass
Valve Body Material
Brass
Valve Body Style
Angle
Valve Seat Material
PTFE
Valve Type
Angle Supply Stop Valve
Electrical & Operational Information
Maximum Temperature
180
Minimum Temperature
40
Temperature Range
40 to 180 Deg F
Warranty & Product Information
ANSI
ANSI 14, ANSI 61
ASME
ASME A112.18.1-2005, ASME A112.18.1.6
ASTM
ASTM F-1807, ASTM F-876, ASTM F-877
CSA Certified
CSA B125.1-05
IAPMO Listed
Yes
Lead Law Compliance Level
Lead Law Compliant and Certified
Lead Law Compliant
Yes
NSF
NSF 14, NSF 61
NSF Certified
Yes
Origin
Domestic
Recommended Valve Application
Water
UL Listed
No
UPC
026613138374
