BrassCraft STCR19 Series 1/2 x 3/8 in. Compression x OD Compression Loose Key Handle Angle Supply Stop Valve in Chrome Plated | Ferguson

Ferguson.com no longer supports Internet Explorer. If you continue using IE, your experience will be degraded and you will not be able to check out. To use Ferguson.com, please use one of the following browsers: Chrome, Safari, Firefox, or Edge.

Skip to main content Skip to footer content

BrassCraft

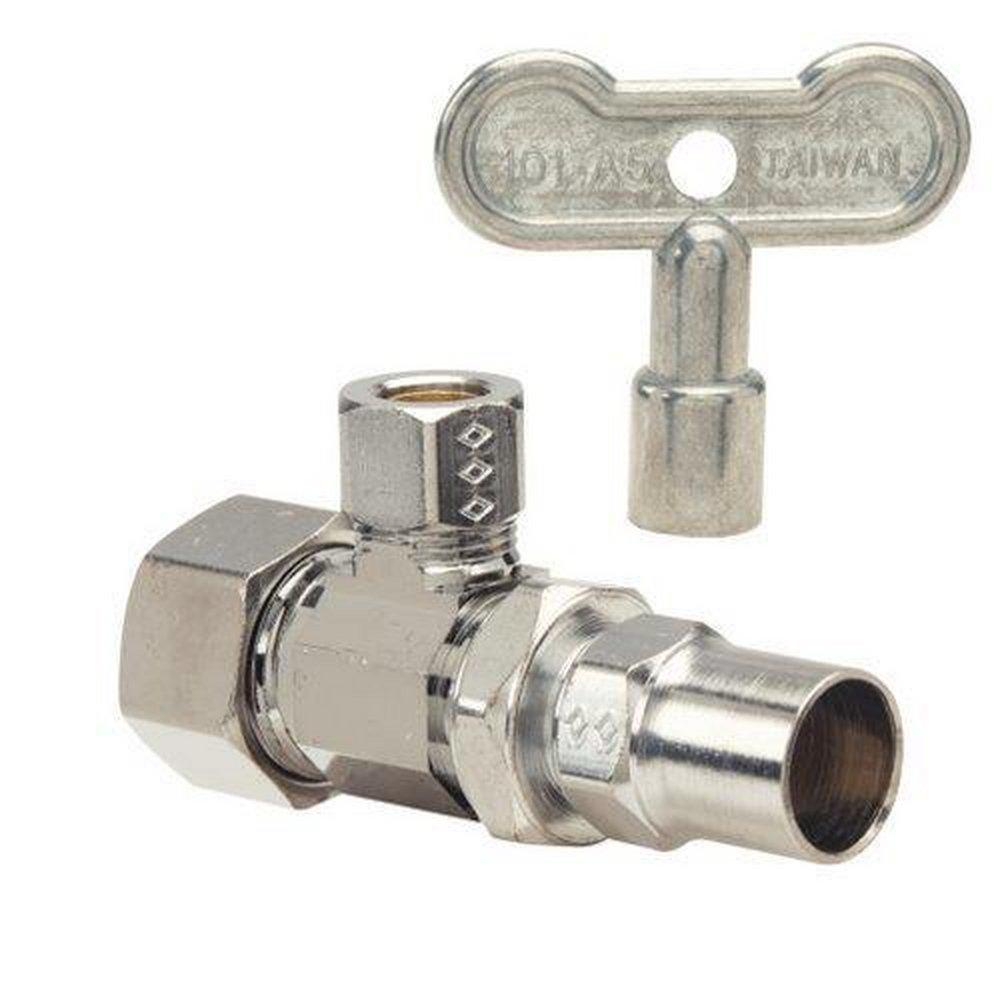

BrassCraft Chrome Plated Compression x OD Compression Loose Key Handle Angle Supply Stop Valve in Chrome Plated

BrassCraft

Fast #
Part #BSTCR19XC
Item #3869560
Manufacturer Part #STCR19X C

$24.31

EACH

Valve Size: 1/2 in x 3/8 in

Add $45.00 more to cart to get FREE Shipping

Pick Up: Not available
Shipping: Available for immediate shipment

Frequently Purchased Together

Product Details

Machined, one-piece body construction for strength, durability and long-lasting performance
1/2 in. Nom Comp x 3/8 in. OD Comp
Compatible with copper or PEX pipe (PEX installations require a stainless steel tube insert, not included)
For use in potable water distribution systems. Not intended for recirculating water systems that produce continuous use temperatures above 115° F. For those applications, use our KT™ series ball stops.
Lockshield feature helps protect against tampering and accidental activation; includes loose key
Features a stuffing box
Multi-turn operation means water flow control with only a few turns of the key
One-piece shut-off mechanism provides smooth on-off operation
Chrome finish
Contractor pack includes 5 individually tray valves

Lead Law Compliant

Documents

SPECIFICATION

INSTALLATION

Specifications

ANSI:: ANSI 372, ANSI 61

ASME:: ASME A112.18.1

CSA Certified:: CSA B125.1

Collection:: STCR19 Series

Color Finish Category:: Chromes

Color Finish Name:: Chrome Plated

End Connection 1:: Compression

End Connection 2:: OD Compression

End Connections:: Compression x OD Compression

Handle Material:: Zinc Die Cast

Handle Type:: Loose Key

Height:: 1-1/50 in

IAPMO Listed:: Yes

Lead Law Compliance Level:: Lead Law Compliant and Certified

Lead Law Compliant:: Yes

Length:: 3 in

Material:: Brass

Maximum Temperature:: 160

Minimum Temperature:: 40

NSF:: NSF 372, NSF 61

NSF Certified:: Yes

Origin:: Domestic

Pressure - High:: 125

Recommended Valve Application:: Potable Water, Residential, Commercial

Temperature Range:: 40 to 160 Deg F

UL Listed:: No

Valve Body Material:: Brass

Valve Body Style:: 1 piece

Valve Operator:: Multi-Turn Handle

Valve Size:: 1/2 in x 3/8 in

Valve Type:: Angle Supply Stop Valve

Weight:: 0.34885 lb

Width:: 2-1/4 in
