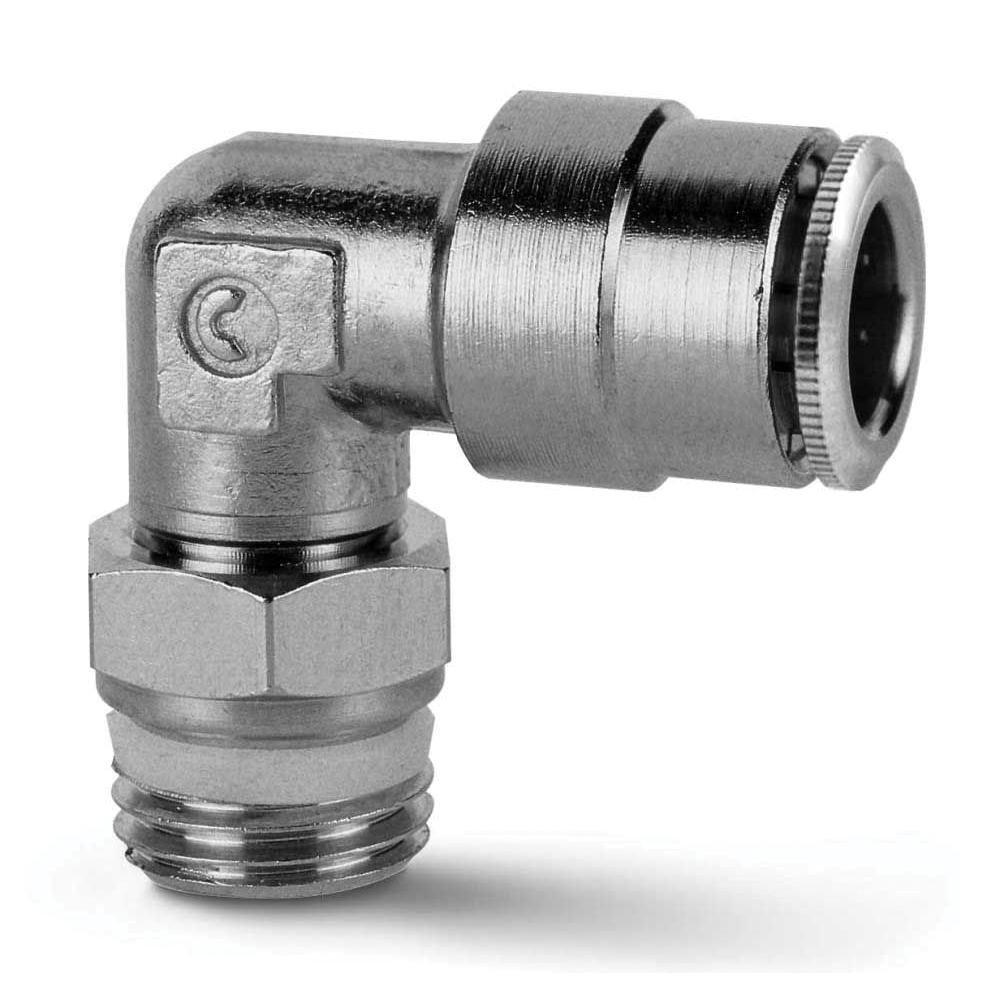

1/4 in. POLY X 1/8 NPT M 90 SWVL Elbow
Camozzi Automation
1/4 in. POLY X 1/8 NPT M 90 SWVL Elbow
Package Quantity Info:
Each: 1 Inner Pack: 1
Log in or Create Account
Log in or Create an Account to see product availability.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Camozzi Automation
1/4 in. POLY X 1/8 NPT M 90 SWVL Elbow
6520-04-02
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Resistant to UV exposure
- Better resistance to stress-cracking, abrasion, solvents, detergents, hydrocarbons and other fluid media
- Simplified manifold circuits with broader variety of fitting combinations and shapes to select
- Lighter weight for end-of-arm tooling and robotic handling
- Compact design reduces overall dimensions for valve assemblies, packaging applications and control cabinets
- 12% reduction in overall body size, compared to brass line
- Full ID flow and high-relief undercuts offers greatest flow without restriction to circuit design flow calculations
Documents
Specifications
- Coating:
- Nickel Plated
- Elbow Degree:
- 90°
- End Connection 1:
- MNPT
- End Connection 2:
- Push
- End Connections:
- MNPT x Push
- Fitting Size 1:
- 1/8 in
- Fitting Size 2:
- 1/4 in
- Fitting Sizes:
- 1/8 in x 1/4 in
- Fitting Type:
- Swivel Elbow
- Material:
- Carbon Steel
- Maximum Temperature:
- 175
- Pressure - High:
- 145
