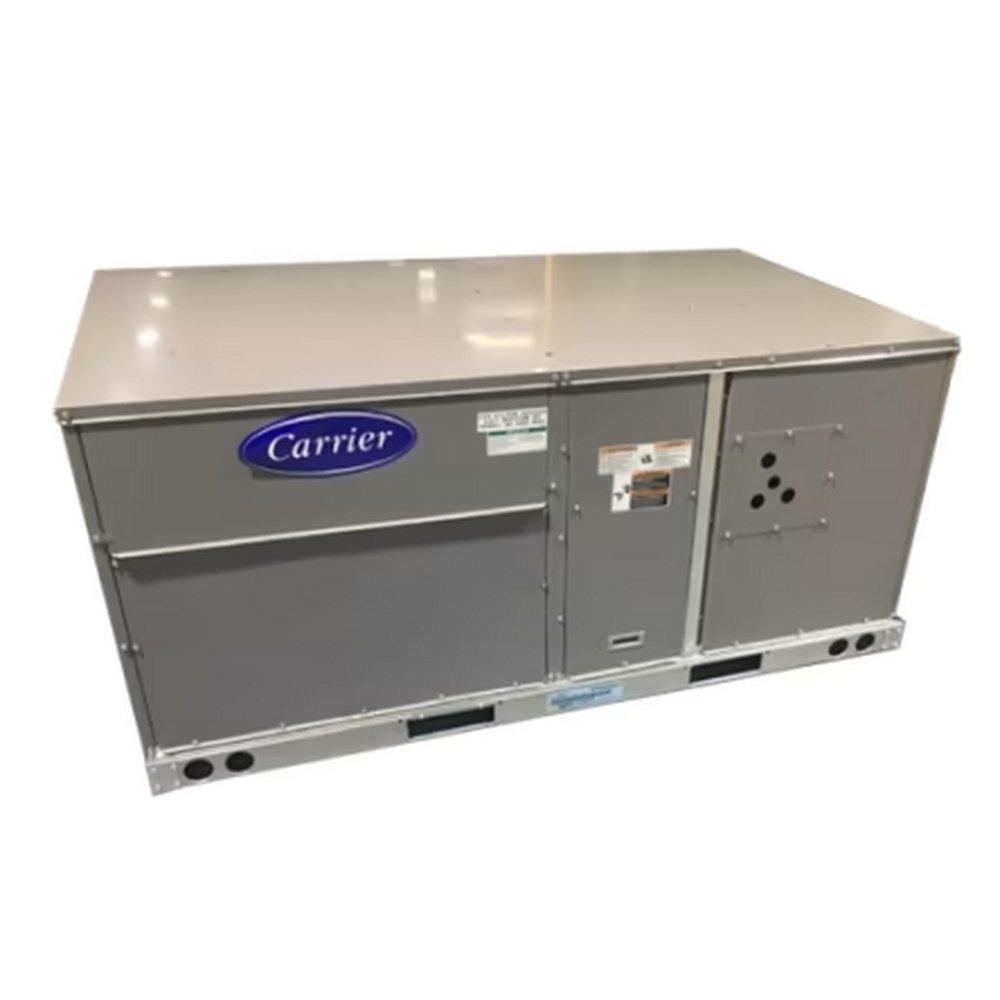

48000 BTU Multi-Zone 208/230V
Carrier Corporation
48000 BTU Multi-Zone 208/230V
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Carrier Corporation
48000 BTU Multi-Zone 208/230V
40QQ-048ABA3-0A0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Vane axial fan (VAF) technology
- Three fan speeds: High, medium and low
- Electronically commutated fan motor (ECM)
- Built in pulse modulating valve for installation ease
- Built-in mounting bracket for FS box installation (for heat recovery)
- Horizontal and vertical economizer option
- 14" or 24" roof curb option
- Electric heat option
- Available in 3, 4 & 5 tons capacity
Specifications
- A2L Compatible:
- No
- AMP:
- 6.1, 8
- Application:
- Commercial
- BTU:
- 48000
- BTU Cooling Rating:
- 48000 Btu/h
- BTU Heat Rating:
- 52000 Btu/h
- CFM:
- 1750 ft3/min
- Decibel Rating (dB):
- 76 dB
- Depth:
- 46-5/8 in
- Energy Star Compliant:
- No
- Height:
- 41-3/8 in
- Indoor Outdoor:
- Indoor
- Liquid Line (OD):
- 3/8 in
- MBH:
- 48
- Max Fuse Size:
- 15
- Phase:
- Single Phase
- Refrigerant:
- R-410A
- Suction Line (OD):
- 5/8 in
- Tonnage:
- 4 Ton
- Volts:
- 208/230V
- Weight:
- 388 lb
- Width:
- 74-3/8 in
