15 Ton - Commercial Split System Air Conditioner - 208/230/3
Carrier Corporation

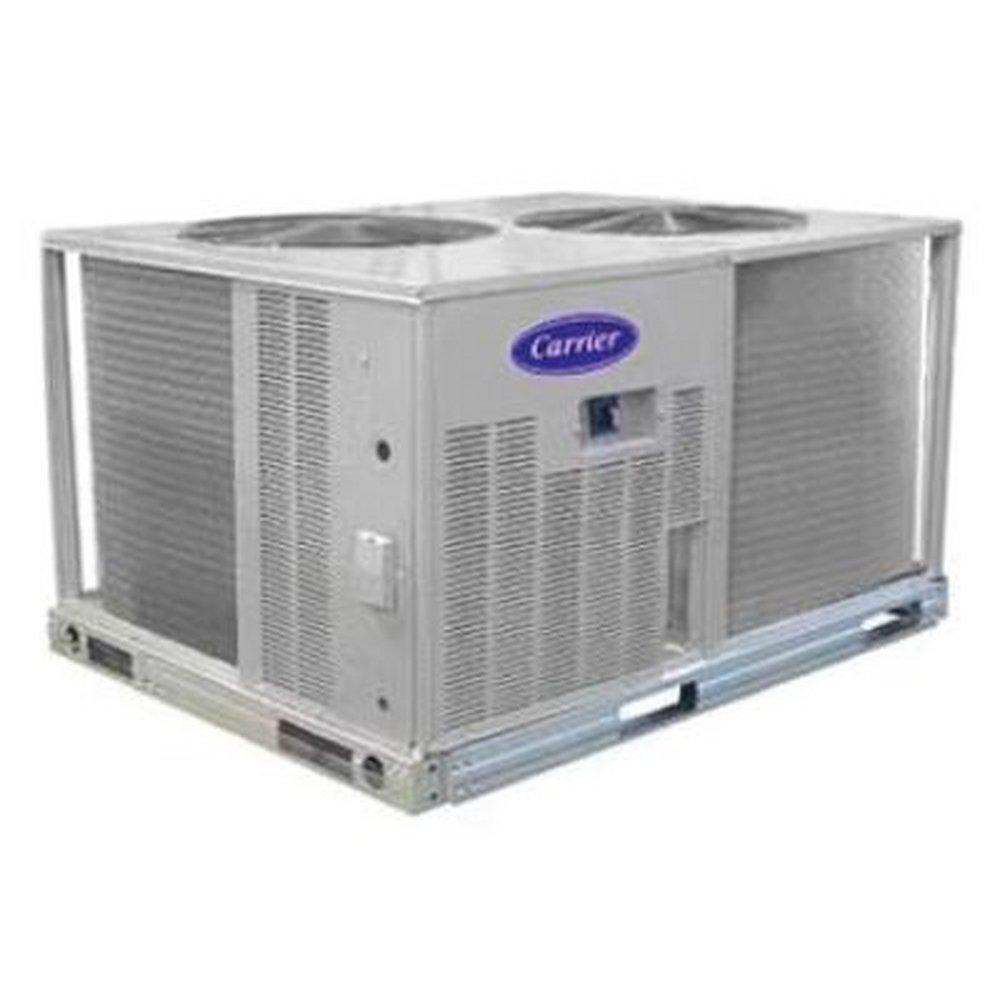

Gemini® 15 Ton - Commercial Split System Air Conditioner - 208/230/3
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Carrier Corporation
Gemini®
15 Ton - Commercial Split System Air Conditioner - 208/230/3
38AUZB16A0M5-0A0A0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Designed for long dependable rooftop or on-the-ground operation
- Environmentally sound Puron® R410A refrigerant
- Reliable split system that provides a solution to a wide range of commercial HVAC needs
- Single circuit cooling only system EERs from 11.5
- Standard crankcase heater
- Compressor vibration isolation
- Low ambient temperature control
- High and low pressure switches
- Anti-short cycling protection
Specifications
- A2L Compatible:
- No
- AFUE:
- 90.10 %
- BTU Cooling Rating:
- 184000 Btu/h
- Collection:
- Gemini®
- Compressor Stages:
- Two Stage
- Compressor Type:
- Scroll
- Configuration:
- Horizontal, Vertical
- Decibel Rating (dB):
- 84.2 dB
- Depth:
- 45-1/8 in
- EER:
- 11.2
- Factory Std. Refrigerant Charge:
- 60 oz
- Height:
- 50-3/8 in
- Horsepower:
- 1/4 hp
- IEER:
- 14.3
- Length:
- 86-3/8 in
- Liquid Line (OD):
- 5/8 in
- Lock Rotor Amps (LRA):
- 164
- Max CFM:
- 9000 cfm
- Max Fuse Size:
- 80
- Number of Condenser Fan Motors:
- 3
- Phase:
- Three Phase
- Rated Load Amps (RLA):
- 25
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- Suction Line (OD):
- 1-3/8 in
- Tonnage:
- 15 Ton
- Volts:
- 208/230V
- Watts:
- 970 W
- Weight:
- 731 lb
