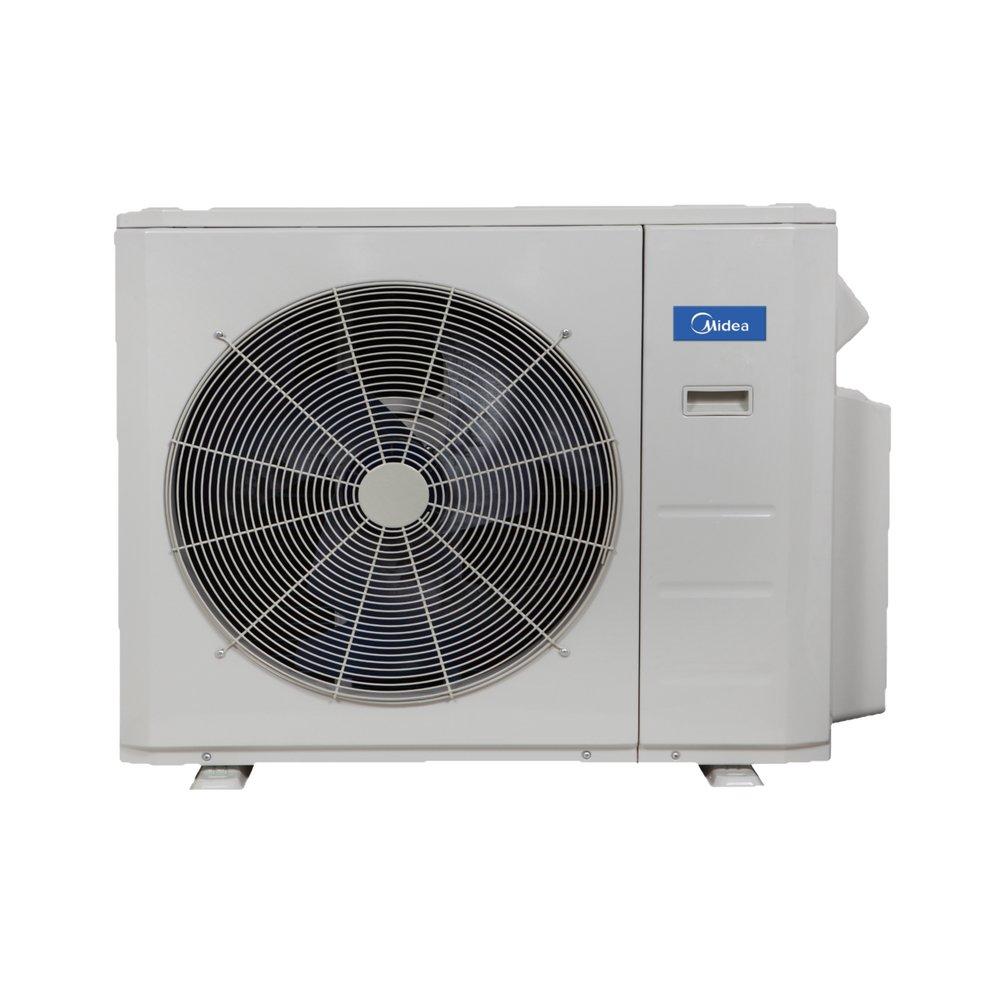

24,000 BTU – Outdoor – Multi Zone – Mini-Split – 21.3 SEER2 – 208/230V – R-410A
This product has been replaced by
Carrier Corporation 24k BTU - Multi-Zone High-Heat Mini-Split Heat Pump - w/ Base pan Heater - R-454B - 208/230/1
Manufacturer Part #37MGHAQ24DA3
Manufacturer Part #37MGHAQ24DA3
Carrier Corporation
Preferred™ Series 24,000 BTU – Outdoor – Multi Zone – Mini-Split – 21.3 SEER2 – 208/230V – R-410A
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Carrier Corporation
Preferred™ Series
24,000 BTU – Outdoor – Multi Zone – Mini-Split – 21.3 SEER2 – 208/230V – R-410A
38MGHBQ24CA3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Inverter compressor
- Up to 26 SEER2 cooling efficiency
- Up to 10.3 HSPF2 heating efficiency
- Built-in basepan heater
- Total piping lengths range from 197 ft to 328 ft depending on unit size
- Connects three to five multiple style indoor units (Preferred™) to a single outdoor unit
- Condenser high temperature protection
- Refrigerant leakage detection
- Quiet outdoor sound operation, as low as 61 dB
-
Green
Specifications
- A2L Compatible:
- No
- AMP:
- 24.5
- Application:
- Residential
- BTU:
- 24000
- BTU Cooling Rating:
- 24000 Btu/h
- BTU Heat Rating:
- 25000 Btu/h
- CFM:
- 2129 ft3/min
- Collection:
- Preferred™ Series
- Decibel Rating (dB):
- 61 dB
- Depth:
- 16-7/50 in
- EER:
- 13.1
- Energy Star Compliant:
- Yes
- HSPF:
- 11.0
- HSPF2:
- 10.3
- Height:
- 31-89/100 in
- Indoor Outdoor:
- Outdoor
- Length:
- 16-1/10 in
- Liquid Line (OD):
- 1/4 in
- MBH:
- 24
- Max CFM:
- 2129 cfm
- Max Fuse Size:
- 25
- Phase:
- Single Phase
- Proposition 65:
- This product can expose you to chemicals including Lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm.
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- EXV
- SEER:
- 24.1
- SEER2:
- 23.9
- Suction Line (OD):
- 3/8 in
- Tonnage:
- 2 Ton
- Volts:
- 208/230V
- Weight:
- 139.77 lb
- Width:
- 37-6/25 in
- Zones:
- 3
