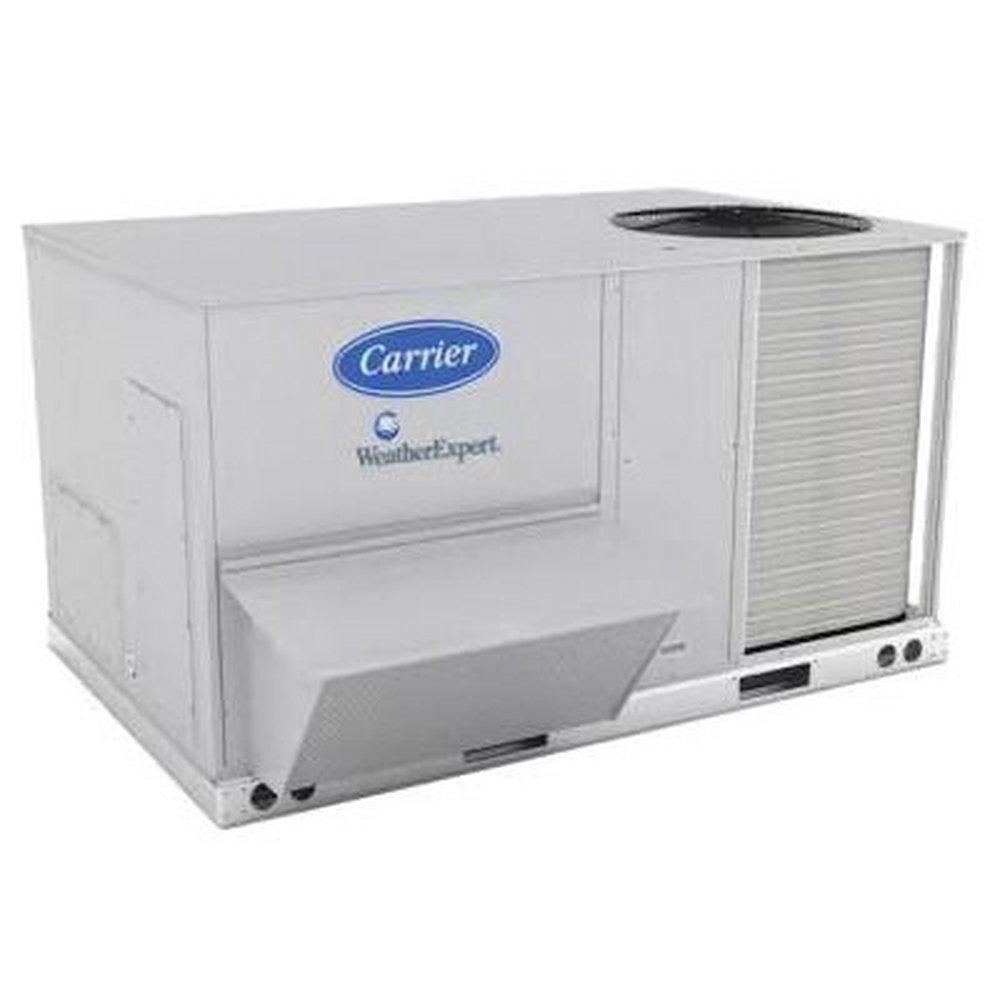

7.5 Ton Commercial Rooftop Packaged Gas/Electric Unit 208/230V - Medium Heat
Carrier Corporation
WeatherExpert® 7.5 Ton Commercial Rooftop Packaged Gas/Electric Unit 208/230V - Medium Heat
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Carrier Corporation
WeatherExpert®
7.5 Ton Commercial Rooftop Packaged Gas/Electric Unit 208/230V - Medium Heat
48LCE008B2A5-1N0A0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Exceeded department of energy advanced RTU challenge by 15%
- All models have three-stage cooling capacity control
- Exclusive non-corrosive composite condensate pan in accordance with ASHRAE 62 Standard, sloping design, side or center drain
- All models have standard cooling operation up to 125 Deg F and down to 40 Deg F
- VAV models use a duct static pressure sensor to vary the units indoor fan motor variable frequency drive while cooling capacity is controlled by the units supply air temperature sensor, to make sure the correct temperature in each zone
- Control terminal board facilitating simple safety circuit troubleshooting and simplified control box arrangement
- Access panels with easy grip handles and tool-less filter access door
- Innovative, easy starting, no-strip screw feature on unit access panels
- 2 in disposable return air filters
Documents
Specifications
- A2L Compatible:
- No
- BTU Cooling Rating:
- 89000 Btu/h
- BTU Heat Rating:
- 180000 Btu/h
- CFM:
- 2625 ft3/min
- Coil Type:
- Evaporator
- Collection:
- WeatherExpert®
- Compressor Type:
- Scroll
- Depth:
- 116 in
- EER:
- 19.8
- ETL Listed:
- Yes
- Factory Std. Refrigerant Charge:
- 357 oz
- Height:
- 57 in
- Horsepower:
- 1/3 hp
- Max CFM:
- 2625 cfm
- Phase:
- Three Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- Refrigeration Control Type:
- TXV
- SEER:
- 19.8
- Stages:
- Three
- Tonnage:
- 7.5 Ton
- UL Listed:
- Yes
- Volts:
- 208/230V
- Weight:
- 1606 lb
- Width:
- 63 in
