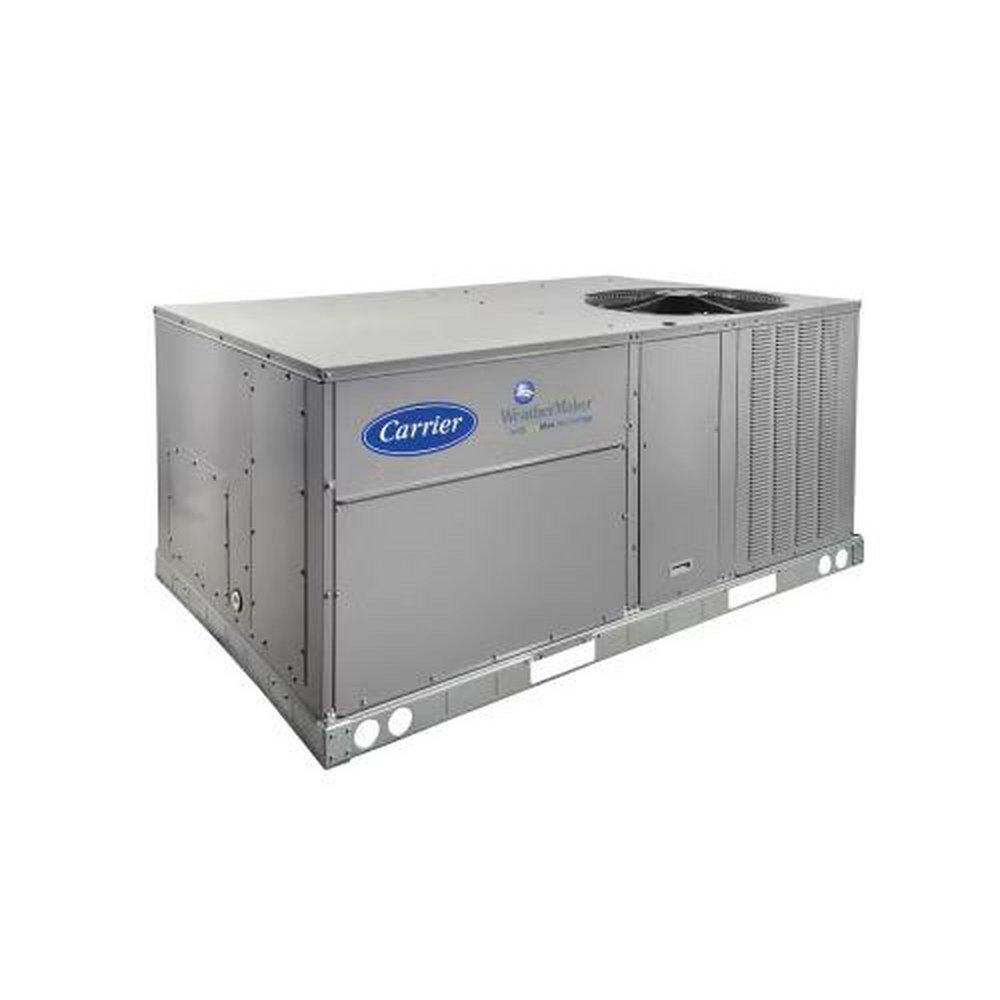

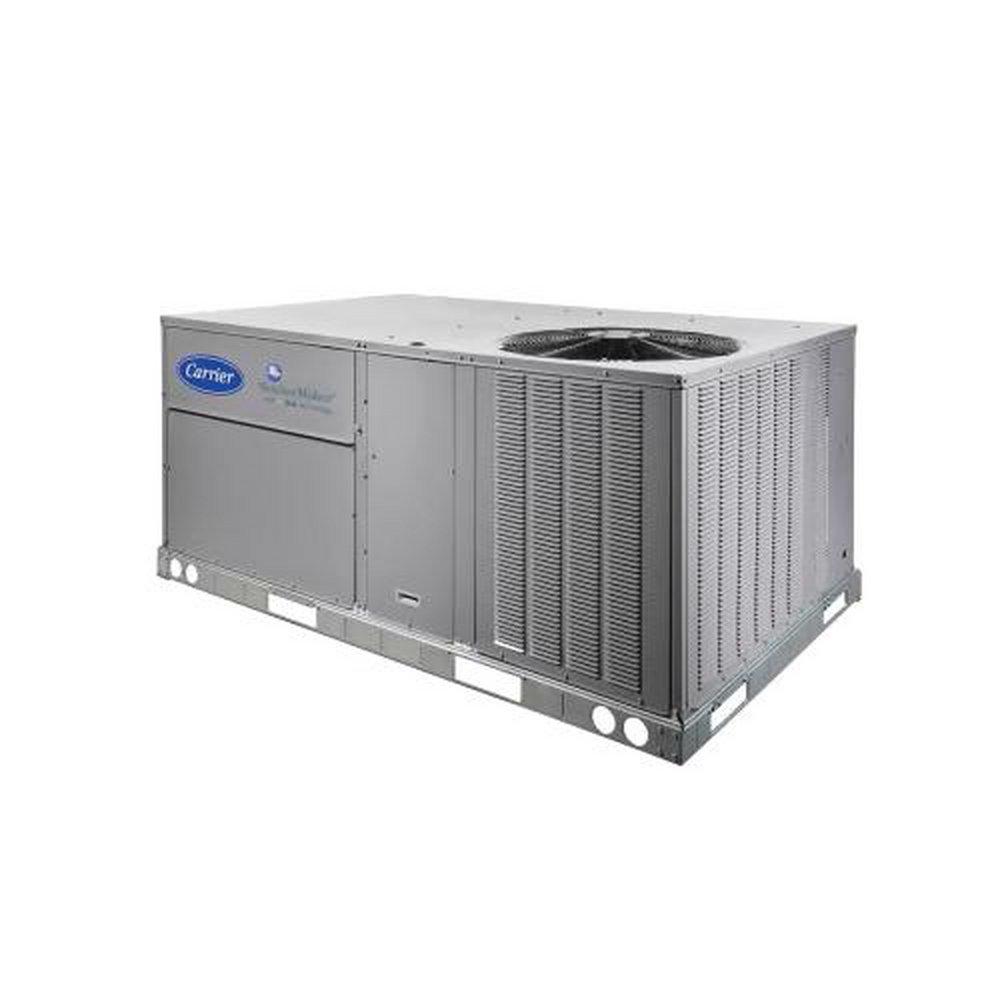

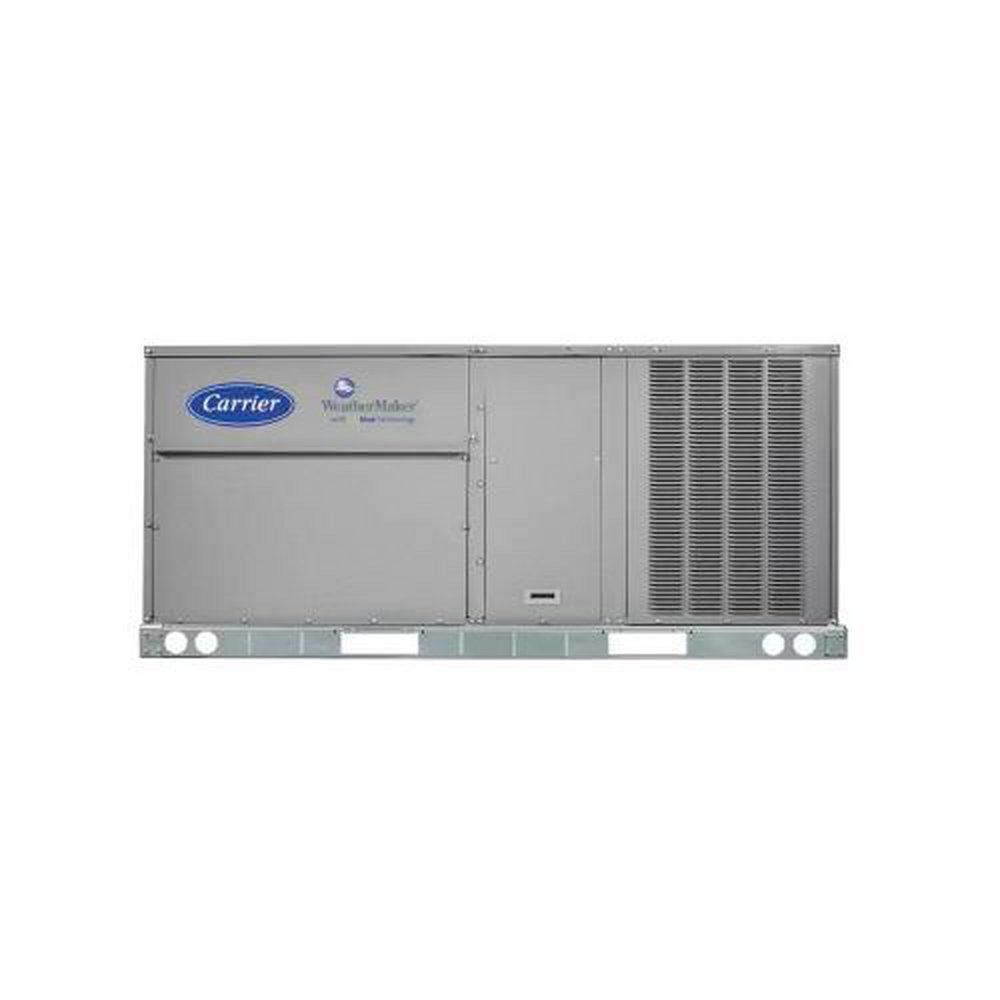

5 Ton - 13.8 SEER2 - Cooling Only / Electric Heat Packaged Rooftop System - 208-230/3
Carrier Corporation
WeatherMaker® 5 Ton - 13.8 SEER2 - Cooling Only / Electric Heat Packaged Rooftop System - 208-230/3
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
Pick Up Not AvailableNot available in LA
-
Shipping Not AvailableNot available at this timeShipping Not AvailableNot available in LA
Purchase history
Carrier Corporation
WeatherMaker®
5 Ton - 13.8 SEER2 - Cooling Only / Electric Heat Packaged Rooftop System - 208-230/3
50FC-A06A2A5-0A0A0
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Meets and exceeds ASHRAE 90.1 energy efficiency levels
- New unit control board with intuitive, quick fan speed adjustment
- New direct drive EcoBlue™ technology indoor fan system uses vane axial fan design and electronically commutated motor
- Single-stage cooling capacity 04-06 models, two-stage on 07-30 models
- SEERs up to 14.0, IEER of 15.2
- Cooling operating range up to 115 Deg F (46 Deg C) and down to 40 Deg F (4 Deg C) using winter start kit
- Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 standard, sloping design side or center drain
- Pre-painted exterior panels and primer-coated interior panels tested to 500 hr salt spray protection
- New unit control board facilitating simple safety circuit troubleshooting and simplified control box arrangement as well as easy intuitive fan speed adjustment
Specifications
- A2L Compatible:
- No
- AMP:
- 16
- BTU Cooling Rating:
- 60000 Btu/h
- Blower Type:
- ECM
- Coil Type:
- RTPF
- Collection:
- WeatherMaker®
- Compressor Type:
- Scroll
- Configuration:
- Horizontal, Vertical
- Decibel Rating (dB):
- 79 dB
- EER:
- 11.2
- EER2 Range:
- 10.6 - 11.1
- ETL Listed:
- Yes
- Factory Std. Refrigerant Charge:
- 9
- Height:
- 33
- Horsepower:
- 1/4 hp
- Length:
- 74
- MBH:
- 58.5
- Max CFM:
- 2500
- Phase:
- Three Phase
- Power Source:
- Electric
- Refrigerant:
- R-410A
- SEER:
- 14.0
- SEER2:
- 13.4
- SEER2 Range:
- 13.4 - 13.7
- Stages:
- Single
- Tonnage:
- 5 Ton
- Type:
- C50FCA06A2A50A0A0
- UL Listed:
- Yes
- Volts:
- 208/230V
- Watts:
- 5.2
- Weight:
- 511
- Width:
- 47
