This product requires certification to purchase.

4 Ton - High Heat - Commercial Packaged Gas/Electric Unit - 208/230V - 3 Phase - R-410A

Carrier Corporation

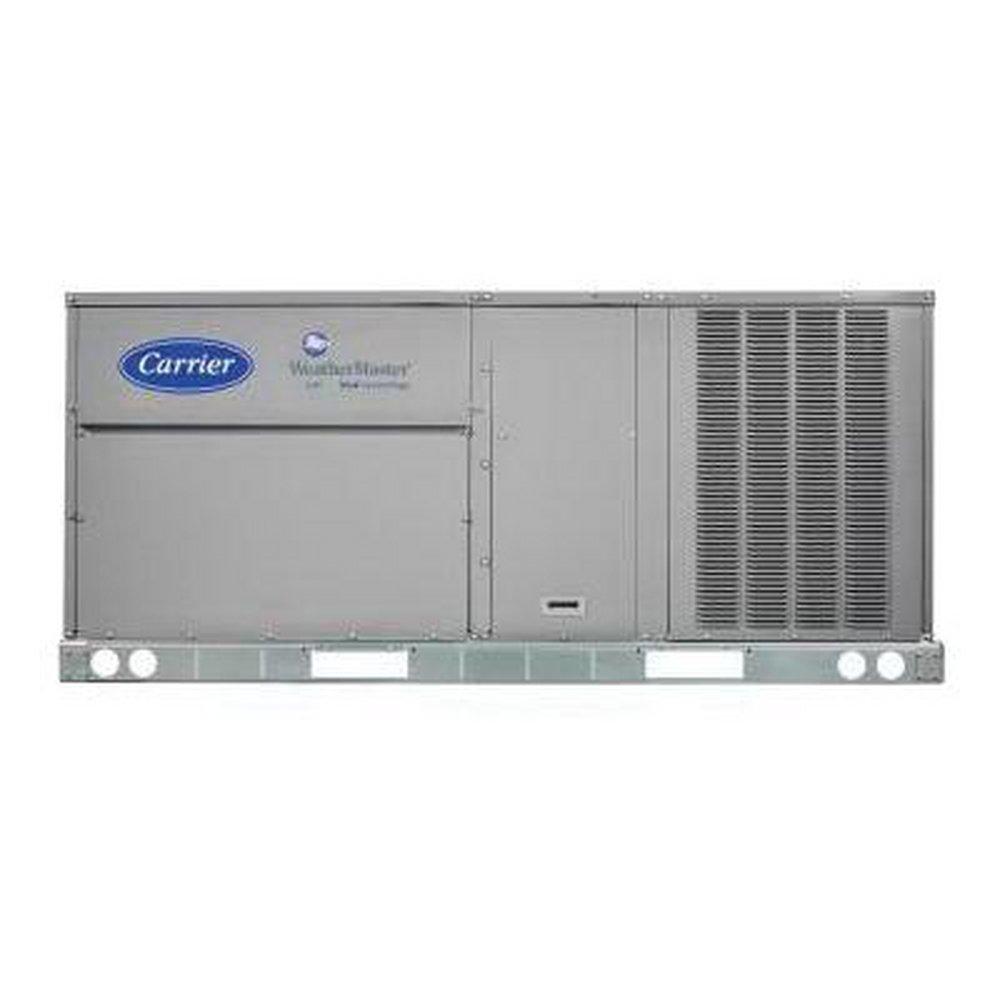

WeatherMaster® 4 Ton - High Heat - Commercial Packaged Gas/Electric Unit - 208/230V - 3 Phase - R-410A

  • Fast #
  • Part #C48GCFJ05A2A50A0A0
  • Item #10290896
  • Manufacturer Part #48GCFJ05A2A5-0A0A0
5 out of 5 Customer Rating
Brand image
4.0T HI HT G/E RTU PURON 208/230V-3
4.0T HI HT G/E RTU PURON 208/230V-3
Carrier Corporation

WeatherMaster® 4 Ton - High Heat - Commercial Packaged Gas/Electric Unit - 208/230V - 3 Phase - R-410A

  • Fast #
  • Part #C48GCFJ05A2A50A0A0
  • Item #10290896
  • Manufacturer Part #48GCFJ05A2A5-0A0A0
5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Altamonte Springs, FL
    0 nearby
    Pick Up  Not Available
    Not available in FL
  • Shipping Not Available
    Not available at this time
    Shipping Not Available
    Not available in FL

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • New unit control board with intuitive, quick fan speed adjustment
  • EcoBlue™ technology indoor fan system uses vane axial fan design and electronically commutated motor with beltless design
  • Two stage cooling capacity control on all models
  • Gas efficiencies up to 82%
  • Cooling operating range up to 125 Deg F and down to 35 Deg F
  • Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 Standard, sloping design; side or center drain
  • Exclusive IGC solid state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
  • Pre-painted exterior panels and primer-coated interior panels tested to 500 hr salt spray protection
  • Access panels with easy grip handles
  • Requires Certification

Documents

SPECIFICATION

Specifications

A2L Compatible:
No
AMP:
26
BTU Cooling Rating:
48000 Btu/h
BTU Heat Rating:
150000 Btu/h
CFM:
2220
Coil Type:
Evaporator
Collection:
WeatherMaster®
Compressor Type:
Scroll
Decibel Rating (dB):
79 dB
Depth:
74
EER2 Range:
11.7 - 23.0
Factory Std. Refrigerant Charge:
144
Height:
41
Horsepower:
1/3 hp
Max CFM:
2220
Max Fuse Size:
30
Phase:
Three Phase
Power Source:
Electric
Refrigerant:
R-410A
Refrigeration Control Type:
TXV
SEER:
16.0
Stages:
Two
Tonnage:
4 Ton
UL Listed:
Yes
Volts:
208/230V
Weight:
555
Width:
47
