12.5 Ton - Medium Heat - Packaged Gas/Electric Rooftop Unit - 460/3

Carrier Corporation

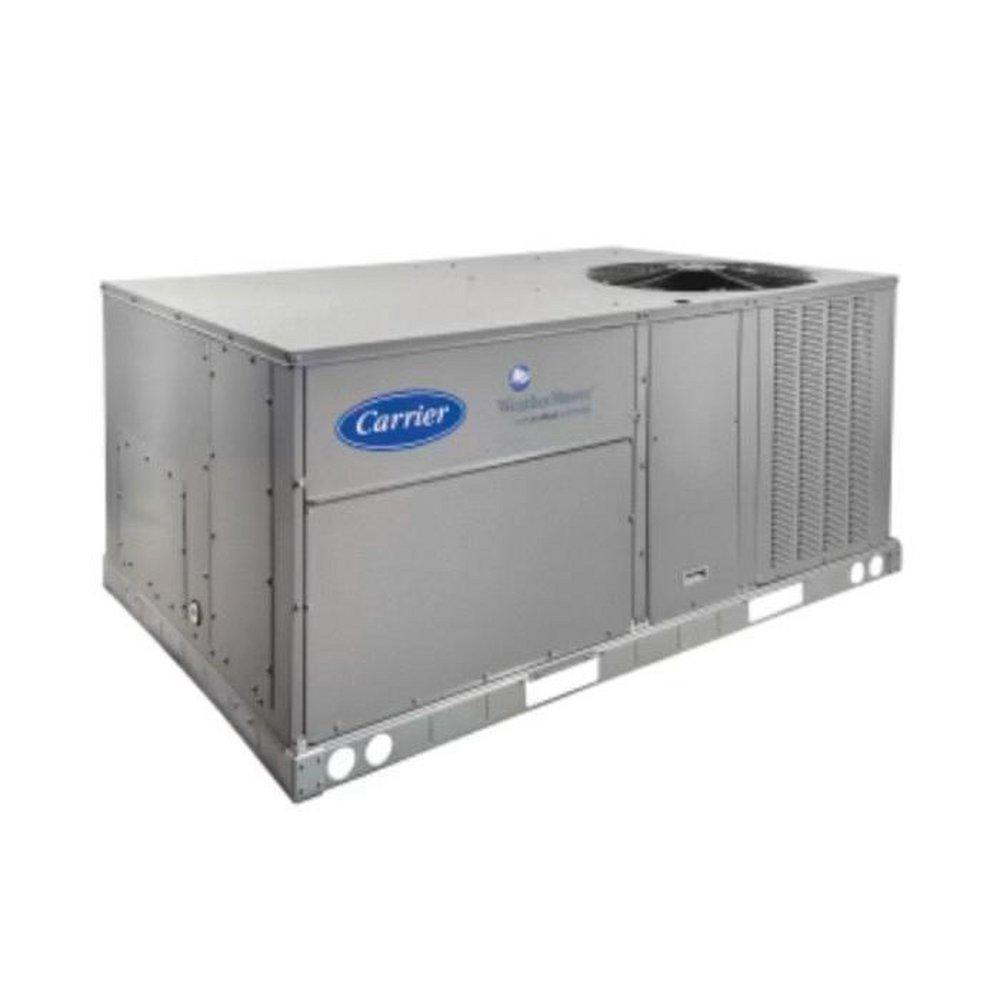

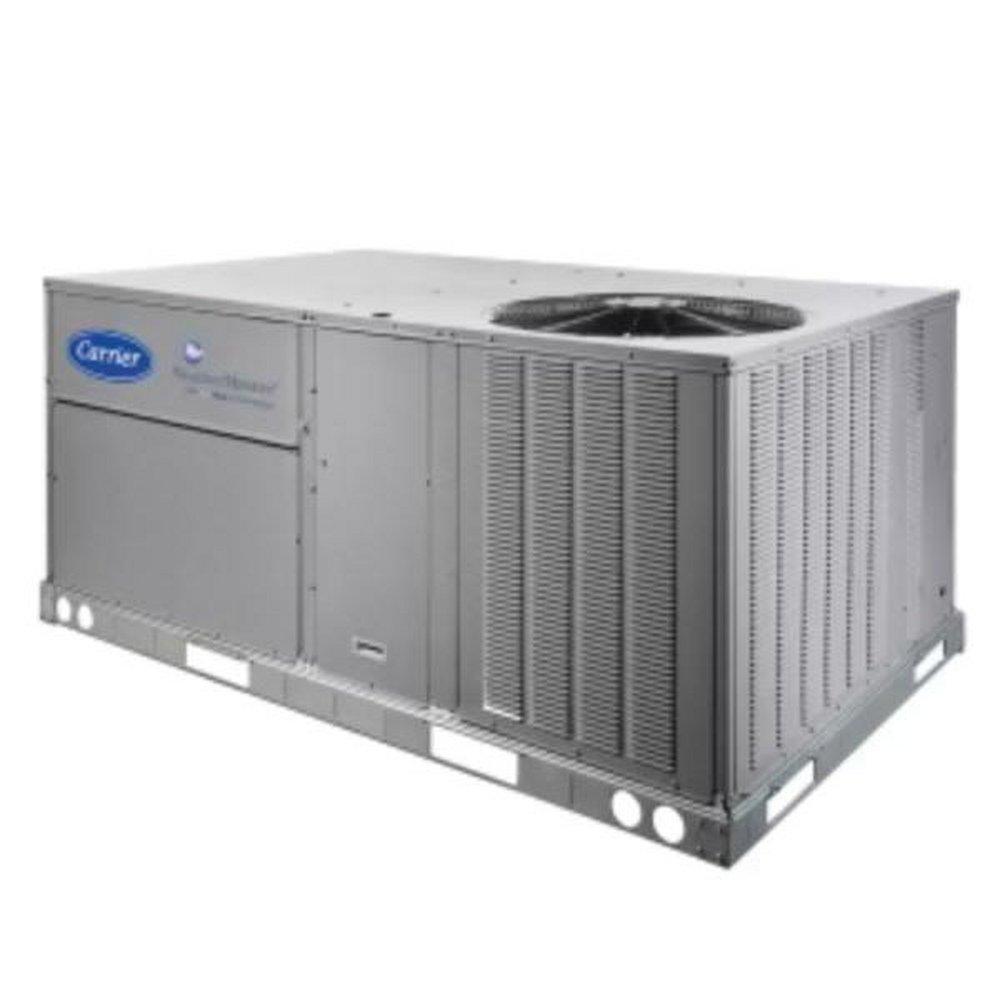

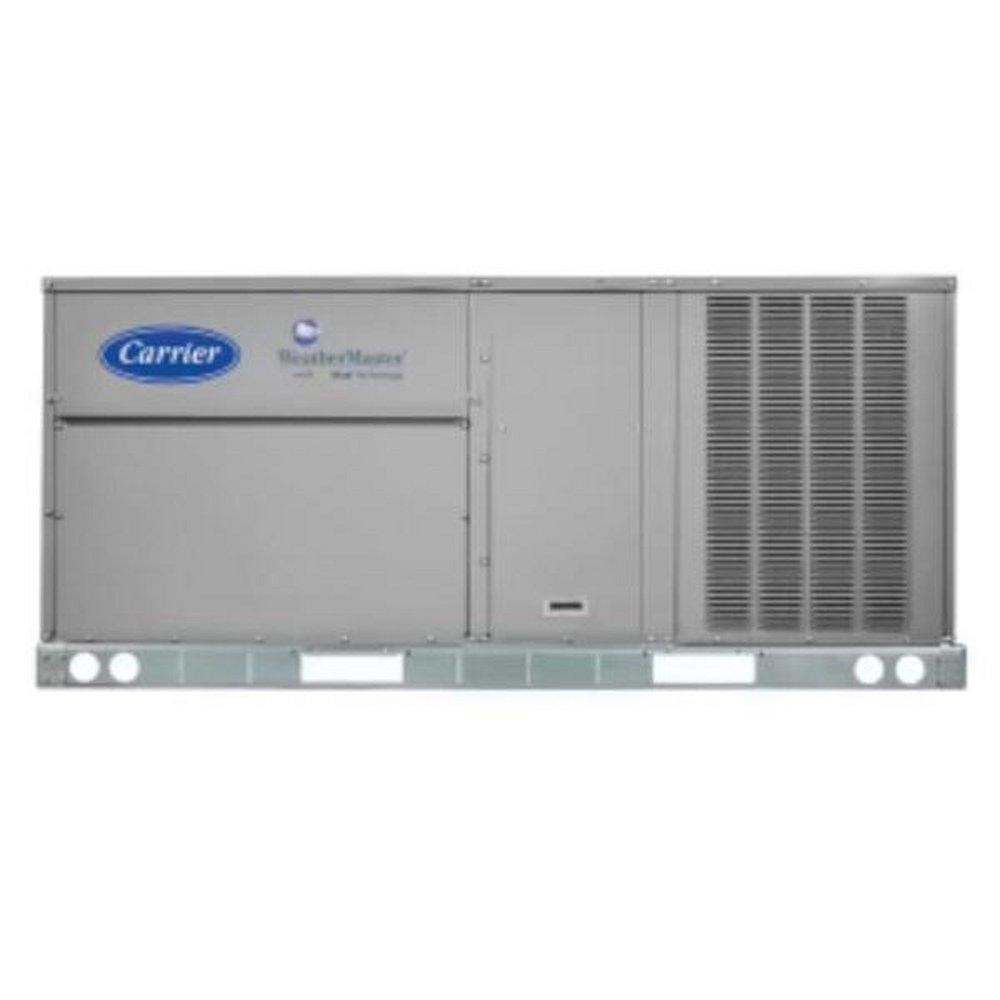

WeatherMaster® 48GC 12.5 Ton - Medium Heat - Packaged Gas/Electric Rooftop Unit - 460/3

  • Fast #
  • Part #C48GCEM14A3A60A0A0
  • Item #10290895
  • Manufacturer Part #48GCEM14A3A6-0A0A0
4.9 out of 5 Customer Rating
Brand image
12.5T MED HT G/E RTU PURON 460V-3
12.5T MED HT G/E RTU PURON 460V-3
12.5T MED HT G/E RTU PURON 460V-3
12.5T MED HT G/E RTU PURON 460V-3
12.5T MED HT G/E RTU PURON 460V-3
12.5T MED HT G/E RTU PURON 460V-3
Carrier Corporation

WeatherMaster® 48GC 12.5 Ton - Medium Heat - Packaged Gas/Electric Rooftop Unit - 460/3

  • Fast #
  • Part #C48GCEM14A3A60A0A0
  • Item #10290895
  • Manufacturer Part #48GCEM14A3A6-0A0A0
4.9 out of 5 Customer Rating
X Points

Package Quantity Info:

Each: 1 Inner Pack: 1
Log in or Create an Account to see product availability.

Product Details

Product Details

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Meets and exceeds ASHRAE 90.1 energy efficiency levels
  • New unit control board with intuitive quick fan speed adjustment
  • New direct drive - EcoBlue™ technology indoor fan system uses vane axial fan design and electronically commutated motor with beltless design
  • Two-stage cooling capacity control on all models
  • SEER to 16.0
  • Gas efficiencies up to 82%
  • Cooling operating range up to 125 Deg F (52 Deg C) and down to 35 Deg F (2 Deg C)
  • Innovative corrosive-resistant composite condensate pan in accordance with ASHRAE 62 standard, sloping design; side or center drain
  • Exclusive IGC solid-state control for on-board diagnostics with LED error code designation, burner control logic and energy saving indoor fan motor delay
  • Requires Certification

Specifications

A2L Compatible:
No
Application:
Commercial
BTU:
146000
BTU Cooling Rating:
146000 Btu/h
BTU Heat Rating:
224000 Btu/h
Blower Type:
Direct Drive
Coil Type:
RTPF
Collection:
WeatherMaster® 48GC
Compressor Type:
Scroll
Configuration:
Horizontal, Vertical
Decibel Rating (dB):
83 dB
EER:
12.0
Fuel Type:
Natural Gas, Propane
Height:
49 in
Horsepower:
1/4 hp
Ignition System:
Direct Spark Ignition
Input (MBH):
224 MBH
Length:
88 in
MBH:
146
Max CFM:
9000 cfm
Phase:
Three Phase
Power Source:
Electric, Gas
Refrigerant:
R-410A
SEER:
16.5
Stages:
2C
Tonnage:
12.5 Ton
Volts:
460V
Watts:
12.2 kW
Weight:
1390 lb
Width:
63 in
