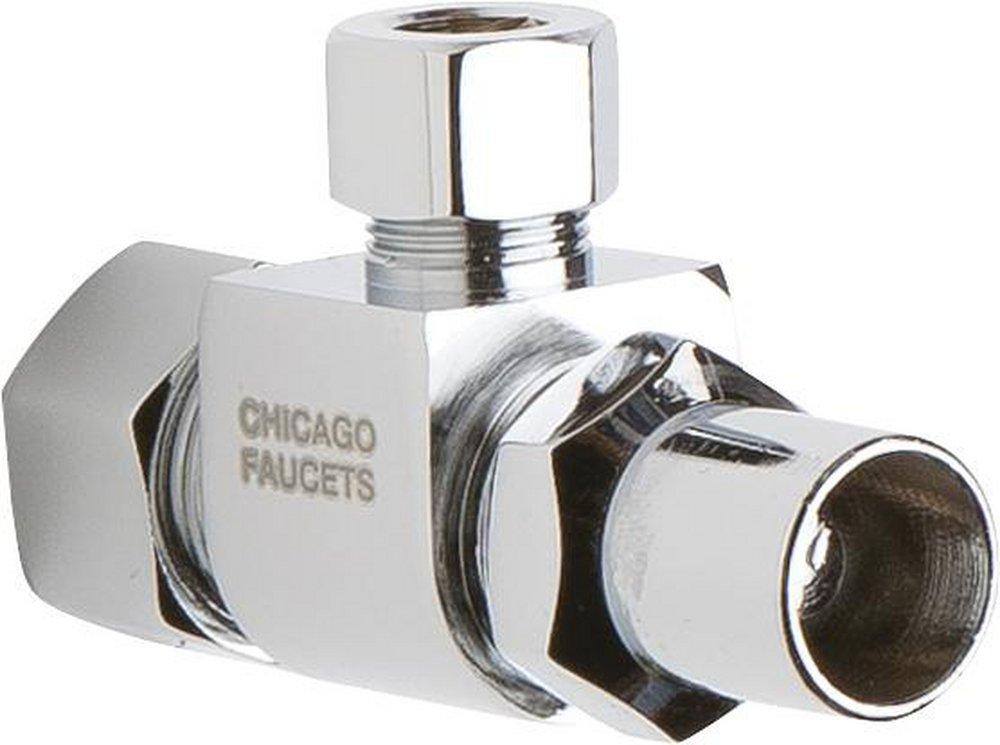

1/2 x 3/8 in. OD Compression Loose Key Handle Angle Supply Stop Valve in Polished Chrome

Chicago Faucets

1/2 x 3/8 in. OD Compression Loose Key Handle Angle Supply Stop Valve in Polished Chrome

  • Fast #
  • Part #CSTC3100AB
  • Item #4516066
  • Manufacturer Part #STC-31-00-AB
4.5 out of 5 Customer Rating
Brand image
Chicago Faucets Polished Chrome OD Compression Loose Key Handle Angle Supply Stop Valve in Polished Chrome
Chicago Faucets Polished Chrome OD Compression Loose Key Handle Angle Supply Stop Valve in Polished Chrome
Chicago Faucets

1/2 x 3/8 in. OD Compression Loose Key Handle Angle Supply Stop Valve in Polished Chrome

  • Fast #
  • Part #CSTC3100AB
  • Item #4516066
  • Manufacturer Part #STC-31-00-AB
4.5 out of 5 Customer Rating
X Points

EACH
Pro Pricing Displays discounted prices List Pricing Displays catalog prices No Pricing Removes prices from page

Package Quantity Info:

Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Looking for compatible parts?
How to get it:
  • Pick Up   Not Available
    0  in  Hilliard, OH
    0 nearby
  • Shipping Not Available
    Not available at this time

Product Details

Product Details

  • Angle Stop Compression Valve
  • 5/8" O.D. (1/2" Nominal) Female Compression Inlet
  • Lifetime faucet warranty, with 5-year limited cartridge warranty and 1-year limited finish warranty
  • 3/8" O.D. female compression outlet
  • Loose key handle
  • Polished chrome
  • Weight 0.518 lb
  • Requires Certification

  • Lead Law Compliant

Documents

SPECIFICATION

Specifications

ANSI:
ANSI 372, ANSI 61-9
ASME:
ASME A112.18.1
CSA Certified:
CSA B125.1
Color Finish Category:
Chromes
Color Finish Name:
Polished Chrome
End Connection 1:
OD Compression
End Connection 2:
OD Compression
End Connections:
OD Compression
Flow Rate:
4 gpm
Handle Type:
Loose Key
Height:
1-3/16 in
IAPMO Listed:
No
Lead Law Compliance Level:
Lead Free and Lead Leaching Compliant
Lead Law Compliant:
Yes
Length:
3-5/16 in
Material:
ECAST Brass
Maximum Temperature:
140
NSF:
NSF 372, NSF 61-9
NSF Certified:
Yes
Pressure - High:
125
Proposition 65:
WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Recommended Valve Application:
Commercial, Residential
Temperature Range:
40 to 140 Deg F
UL Listed:
No
UPC:
611943539863
Valve Body Material:
Cast Brass
Valve Body Style:
Angle
Valve Operator:
Loose Key Handle
Valve Size:
1/2 in x 3/8 in
Valve Type:
Angle Supply Stop Valve
Weight:
0.518 lb
