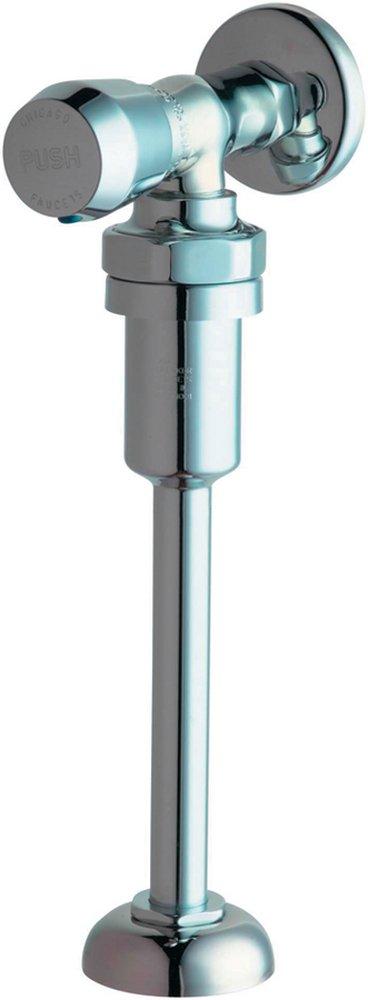

1 gpf Manual Flush Valve

Chicago Faucets

1 gpf Manual Flush Valve

Brand image
Chicago Faucets

1 gpf Manual Flush Valve

  • Part #C732VB665PSHCP
  • Item #561140
  • Manufacturer Part #732-VB665PSHCP
5 out of 5 Customer Rating

$1.00
EACH

Package Quantity Info:

EA: 1 IP: 1 CA: 1 PT: 200
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • Angle valve with loose wall flange
  • 1/2" NPT female inlet
  • Angled urinal valve
  • 3/4" O.D. x 9 7/8" vacuum breaker tailpiece
  • MVP metering adjustable cycle time closure cartridge
  • Vandal Proof 1-3/4" round metering handle with hot and cold index buttons
  • ADA Compliant


Specifications

ADA Compliant:
Yes
ANSI:
ANSI 372, ANSI 61 Section 9, ANSI A117.1
ASME:
ASME A112.18.1
ASSE Standards:
ASSE 1001
Application:
Commercial, Residential
BAA Compliant:
Yes
Bathroom Faucet Type:
Metering
Built-in Stops:
No
CSA Certified:
CSA B125.1
Cartridge Type:
Metering, Self Closing, Rebuildable
Color Finish Category:
Chromes
Color Finish Name:
Polished Chrome
Deck Plate Included:
Yes
Dispenser Only:
Yes
Dispenser Type:
Cold Only
Drain Included:
No
EcoLogo Certified:
No
End Connection 1:
FNPT
End Connection 2:
Slip
End Connections:
FNPT x Slip
Faucet Material:
Brass
Faucet Mount:
Wall Mount
Fitting Size 1:
1/2 in
Fitting Size 2:
3/4 in
Fitting Sizes:
1/2 in x 3/4 in
Flow Rate:
1.0 gpf
Flow Rate Range:
1.0 gpf - 1.5 gpf
Flush Type:
Manual
Flush Valve Application:
Commercial Urinal
GSA Approved:
No
Handle Type:
Button
Length:
12 in
MA Approved -:
No
Material:
Brass
Maximum Temperature:
140
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Number of Handles:
Single Handle
Number of Holes:
1 Hole
Origin:
Domestic
Pressure - Maximum:
125 psi
Scald Guard:
No
Side Spray:
No
Spud Location:
Top
Temperature Range:
40 to 140°F
Vacuum Breaker:
Yes
Vandal Resistant:
Yes
WaterSense Labeled:
No
Weight:
1.5 lb
Width:
3-3/5 in
