in Polished Chrome Hot and Cold Water Dispenser

Chicago Faucets

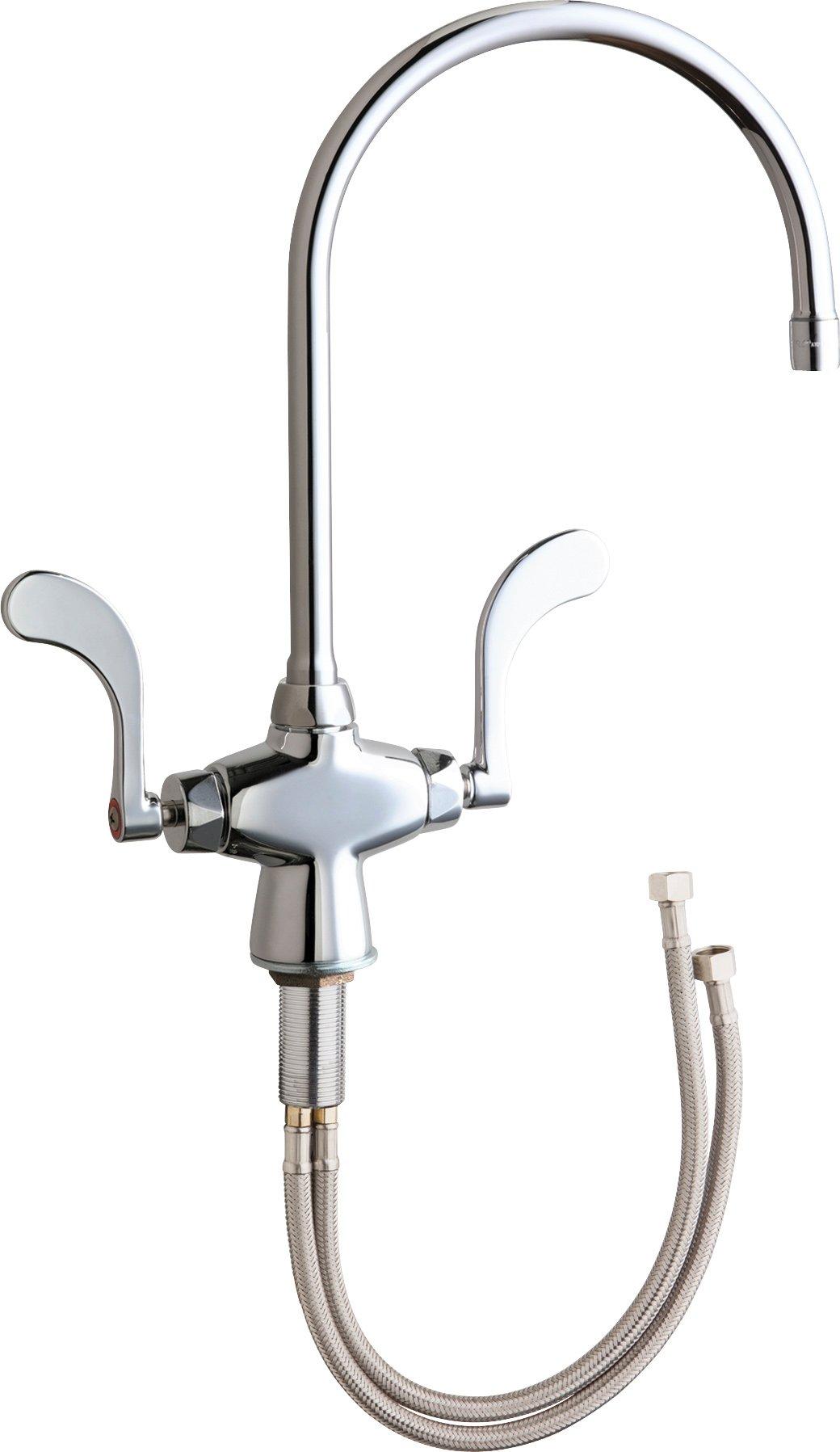

Ecast® in Polished Chrome Hot and Cold Water Dispenser

Brand image
Chicago Faucets

Ecast® in Polished Chrome Hot and Cold Water Dispenser

  • Part #C50GN8AE35317XKAB
  • Item #7114086
  • Manufacturer Part #50-GN8AE35-317XKAB
3.4 out of 5 Customer Rating

$1.00
EACH
Color Finish Name: Polished Chrome Select Color Finish Name

Package Quantity Info:

EA: 1
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
Add $45.00 more to cart to get FREE Shipping
  • Pick Up: Not available
  • Shipping: Available for immediate shipment

Product Details

  • 8" c-c rigid/swing gooseneck spout
  • 1.5 GPM (5.7 L/min) max. pressure compensating aerator outlet
  • Single-hole, deck-mounted manual sink faucet
  • Color/Finish: Polished Chrome
  • 3/8" compression flexible stainless steel supply hoses
  • Mounting Hardware Included
  • Ceramic 1/4-turn operating cartridge
  • 4" Metal wristblade handles with secured red and blue index buttons
  • Lead Law Compliant

  • ADA Compliant

Documents


Specifications

ADA Compliant:
Yes
ANSI:
ANSI 372, ANSI 61 Section 9, ANSI A117.1
ASME:
ASME A112.18.1
Application:
Commercial, Residential
Built-in Stops:
No
CARB OTC LEED Compliant:
No
CEC Compliant:
For Sale in CA
CSA Certified:
CSA B125.1
Collection:
Ecast®
Color Finish Category:
Chromes
Color Finish Name:
Polished Chrome
Deck Plate Included:
No
Dispenser Only:
Yes
Dispenser Type:
Hot and Cold
Faucet Connection:
Compression
Faucet Connection Size:
3/8 in
Faucet Height:
14-3/4 in
Faucet Material:
Brass
Faucet Mount:
Deck Mount
Faucet Type:
Monoblock
Faucet Valve Type:
Quarter Turn Ceramic Disc
Flow Rate:
1.5 gpm
GSA Approved:
No
Handle Material:
Metal
Handle Type:
Wristblade
IAPMO Listed -:
No
Installation Type:
Deck Mount
Lead Law Compliance Level:
Lead Free and Lead Leaching Compliant
Lead Law Compliant:
Yes
Material:
ECAST® Brass
Maximum Deck Thickness:
1-5/8 in
NSF:
NSF 372, NSF 61
NSF Certified:
Yes
Number of Handles:
Two Handle
Number of Holes:
1 Hole
Pressure - Maximum:
125 psi
Scald Guard:
No
Spout Height:
9-1/4 in
Spout Reach:
8 in
Spout Swivel:
360°
Spout Type:
Gooseneck, Rigid, Swing
Stream Type:
Laminar Stream
Trim Only:
No
UL Listed:
No
