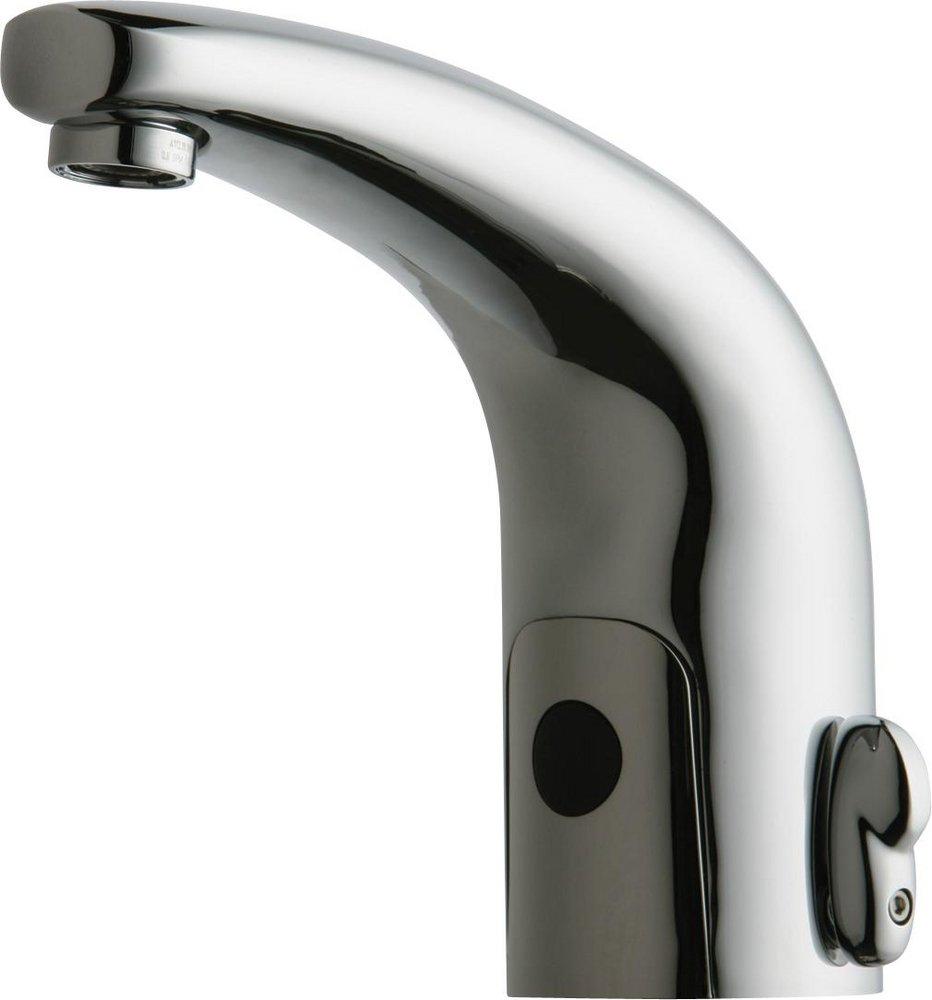

1.5 gpm 1-Hole DC Electronic Deck Mount Lavatory Faucet for Commander 116.585.00.1 Handheld Programming Unit in Polished Chrome
Chicago Faucets
HyTronic® Series 1.5 gpm 1-Hole DC Electronic Deck Mount Lavatory Faucet for Commander 116.585.00.1 Handheld Programming Unit in Polished Chrome
Package Quantity Info:
Each: 1 Inner Pack: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Chicago Faucets
HyTronic® Series
1.5 gpm 1-Hole DC Electronic Deck Mount Lavatory Faucet for Commander 116.585.00.1 Handheld Programming Unit in Polished Chrome
116.592.AB.1
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Deck mounted touch-free, programmable faucet with above-deck electronics
- 5-1/4" CC rigid HyTronic traditional spout with user temp control handle
- 1.5 gpm (5.7 L/min) max. Antimicrobial pressure compensating laminar flow non-aerating outlet
- Includes 6V lithium CRP2 battery
- Dual supply for hot and cold water; 3/8" O.D. copper supply tubes included
- Multiple field adjustable modes and ranges
- Geberit Commander™ software compatible
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds
- Reactivate faucet by removing hands from the sensor for at least 10 seconds
- Single hole (4" and 8" deck plates available, see accessories)
-
Lead Law Compliant
-
ADA Compliant
-
Green
Specifications
- ADA Compliant:
- Yes
- ANSI:
- ANSI 372, ANSI 61, ANSI 61-9, ANSI A117.1
- ASME:
- ASME A112.18.1
- Battery Size:
- CR-P2
- Battery Type:
- Lithium
- Built-in Stops:
- No
- CEC Compliant:
- For Sale in CA
- CSA Certified:
- CSA B125.1
- Collection:
- HyTronic® Series
- Color Finish Category:
- Chromes
- Color Finish Name:
- Polished Chrome
- Deck Plate Included:
- No
- Faucet Connection Size:
- 3/8 in
- Faucet Height:
- 6-5/8 in
- Faucet Material:
- Brass
- Faucet Mount:
- Deck Mount
- Flow Rate:
- 1.5 gpm
- GSA Approved:
- No
- Handle Type:
- Electronic
- IAPMO Listed:
- No
- Institutional Faucet Type:
- Healthcare
- Lead Law Compliance Level:
- Lead Free Not Certified, Approved for Non-Potable Water Applications
- Lead Law Compliant:
- Yes
- NSF:
- NSF 372, NSF 61, NSF 61-9
- NSF Certified:
- Yes
- Number of Handles:
- No Handle
- Number of Holes:
- 1 Hole
- Origin:
- Domestic
- Proposition 65:
- WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
- Scald Guard:
- No
- Spout Height:
- 5-1/4 in
- Spout Reach:
- 5-5/8 in
- Spout Swivel:
- 10°
- UPC:
- 611943536824
- Vandal Resistant:
- Yes
