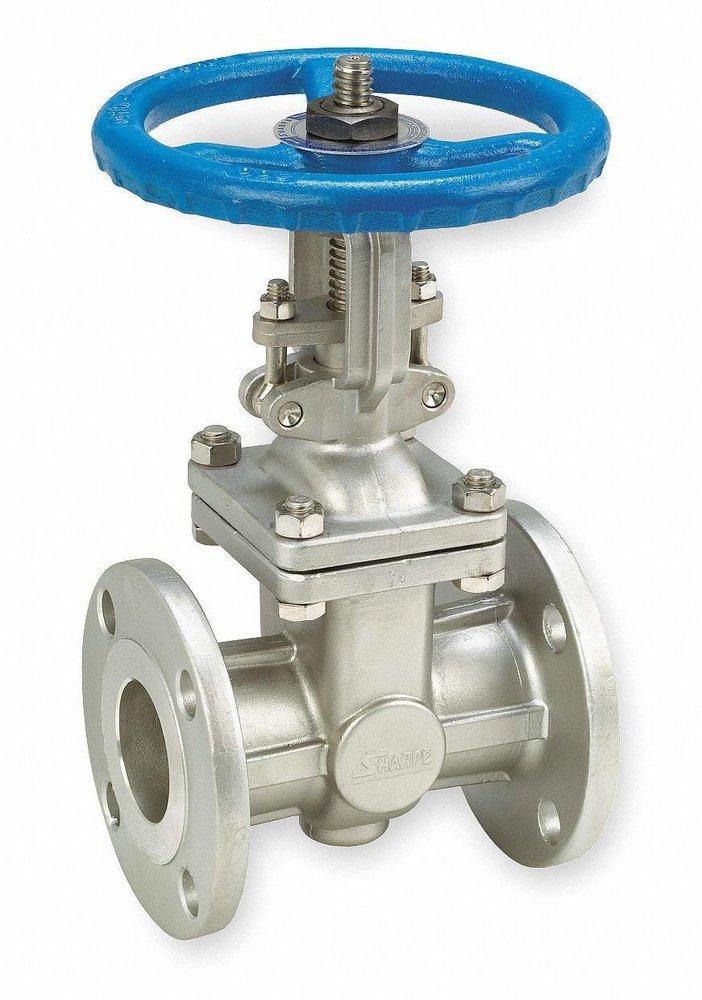

3 in. 150# RF FLG CF8M T10 Gate Valve PTFE Packing, API-603, Stainless Steel 316 Body, Trim 10, Bolted Bonnet
Crane Valve/Crane Energy Flow Sol
Figure 117 3 in. 150# RF FLG CF8M T10 Gate Valve PTFE Packing, API-603, Stainless Steel 316 Body, Trim 10, Bolted Bonnet
Package Quantity Info:
Each: 1
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Crane Valve/Crane Energy Flow Sol
Figure 117
3 in. 150# RF FLG CF8M T10 Gate Valve PTFE Packing, API-603, Stainless Steel 316 Body, Trim 10, Bolted Bonnet
117 3
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Full material offering including CF8M, CF3M, and CN7M (alloy 20)
- Broad pressure classes including class 150, class 300, class 600, and 200 CWP
- 100% testing for quality assurance
Specifications
- API:
- API 598, API 603
- ASME:
- ASME B16.10, ASME B16.34, ASME B16.5
- ASTM:
- ASTM A193 Grade B8, ASTM A194 Grade 8, ASTM A276, ASTM A276 Type 304, ASTM A276 Type 316, ASTM A351 CF8M, ASTM A536
- Collection:
- Figure 117
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- FM Approved:
- No
- Handle Length (in):
- 7-9/10 in
- Handle Material:
- Ductile Iron
- Length:
- 8 in
- MSS:
- MSS SP-42
- Material:
- Stainless Steel
- Material Type:
- 316, CF8M
- NSF Certified:
- No
- Pressure Class:
- 150#
- Recommended Valve Application:
- Fertilizer, Pulp and Paper, Waste Water
- UL Listed:
- No
- Valve Body Material:
- Stainless Steel
- Valve Body Style:
- Flanged
- Valve Bonnet Type:
- Bolted
- Valve Disc Material:
- CF8M, Stainless Steel
- Valve Operator:
- Handwheel
- Valve Size:
- 3 in
- Valve Stem:
- Outside
- Valve Type:
- Gate Valve
- Weight:
- 46.3 lb
