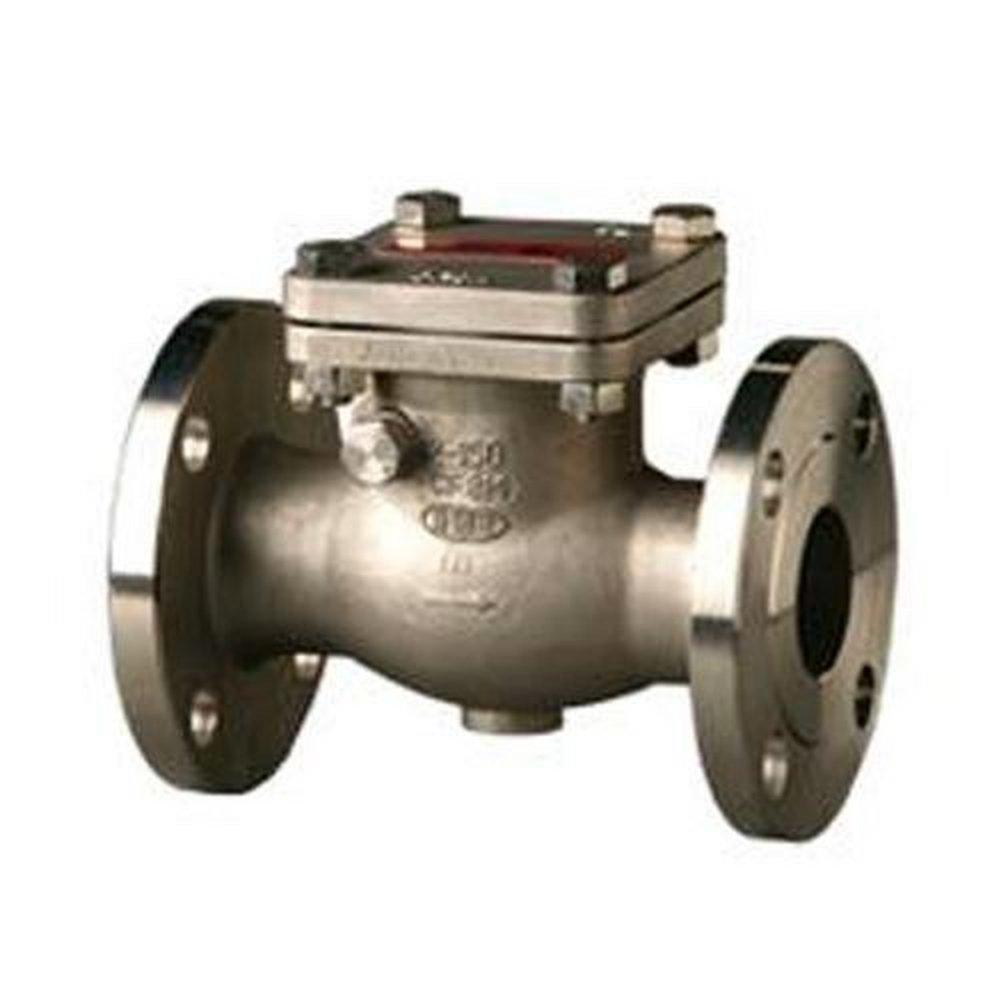

4 in. Cast Iron Flanged Swing Check Valve
Crane Valve/Crane Energy Flow Sol
Figure 383 4 in. Cast Iron Flanged Swing Check Valve
Package Quantity Info:
Each: 1
Unavailable
The quantity entered must be a multiple of 1 – for example, 1, 2, 3, and so on.
How to get it:
-
-
Shipping Not AvailableNot available at this time
Purchase history
Crane Valve/Crane Energy Flow Sol
Figure 383
4 in. Cast Iron Flanged Swing Check Valve
383*040
Order #
Order Date
Job Name
My PO#
Shows all online and in-store purchases made within the past 12 months.
Product Details
Product Details
- Bolted cap
- Bronze trim
Specifications
- ASTM:
- ASTM A-126 Class B, ASTM B-584 C84400, ASTM A-276 Type 410, ASTM B-16 C36000, ASTM A-536 Gr 65-45-12, ASTM A-108, ASTM A-563 Gr A, ASTM B-36, ASTM A-307 Gr B, ASTM A-563 Gr A
- Collection:
- Figure 383
- End Connection 1:
- Flanged
- End Connection 2:
- Flanged
- End Connections:
- Flanged
- Height:
- 6-31/50 in
- Installation Type:
- Horizontal Mount, Vertical Mount
- Length:
- 11-1/2 in
- MSS:
- MSS SP-71 Type 1
- Material:
- Cast Iron
- NSF Certified:
- No
- Pressure Class:
- 125#
- UL Listed:
- No
- Valve Body Material:
- Cast Iron
- Valve Body Style:
- Swing
- Valve Disc Material:
- Bronze
- Valve Operator:
- Lever
- Valve Seat Material:
- Bronze
- Valve Size:
- 4 in
- Valve Type:
- Swing Check Valve
- Weight:
- 85 lb
